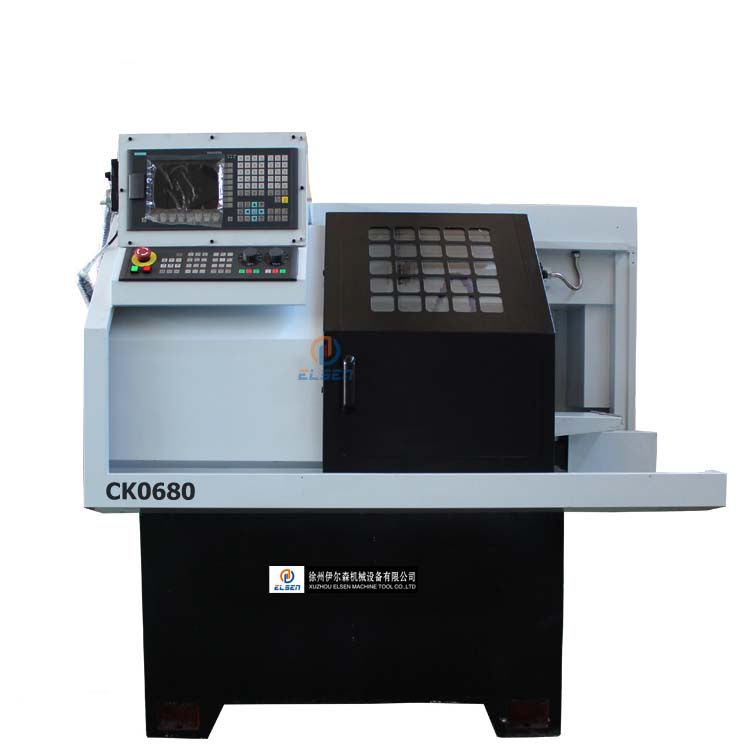

CK0680
    Publish time 2020-02-21 15:41
CK0680

1.Frequency conversion stepless speed regulation.
2.Higher working efficiency.
3.Higher rigidity cast iron.
4.Fully enclosed-safety.

Model
CK0640
CK0660
CK0680
Drawn pipe diameter
mm
Φ40
Φ60
Φ80
Max. swing diameter over slide
mm
Φ100
Φ100
Φ100
Max. workpiece length
mm
Collet 200
Chuck 120
Collet 200
Chuck 120
Collet 200
Chuck 120
Spindle head form
A2-5
A2-5
A2-5
Spindle bore
mm
Φ48
Φ70
Φ90
Max. rotation diameter over bed
mm
Φ250
Φ250
Φ250
Lathe bed width
mm
260
260
260
X/Z repeat positioning accuracy
mm
0.012/0.013
0.012/0.013
0.012/0.013
X/Z maximum stroke
mm
260/240
260/240
260/240
X/Z fast-moving feed
mm/min
4000/8000
4000/8000
4000/8000
Spindle speed range
r/min
150-2500
150-2500
150-2500
Main motor power
kw
3
3
3
Machine size (LxWxH)
mm
1600x1000x1550
1600x1000x1600
1600x1000x1600
Net weight
kg
950
1000
1000



Standard configuration:

1) System:GSK928TD-L, servo motor and drive.
2) 3-jaw chuck.
3) Four station electric tool post or Gang Tool.
4) Manual tailstock.
5) Cooling system.
6) Lighten system.
7) Automatic lubrication system.

Optional configuration:

1). CNC system: GSK, Siemens, Fanuc, KND, etc.
2). Hydraulic chuck, pneumatic chuck .
3). Hydraulic tailstock, pneumatic tailstock.
4). 6-station electric tool post, 8- station electric tool post, Gang type tool
5). Automatic bar feeder.
