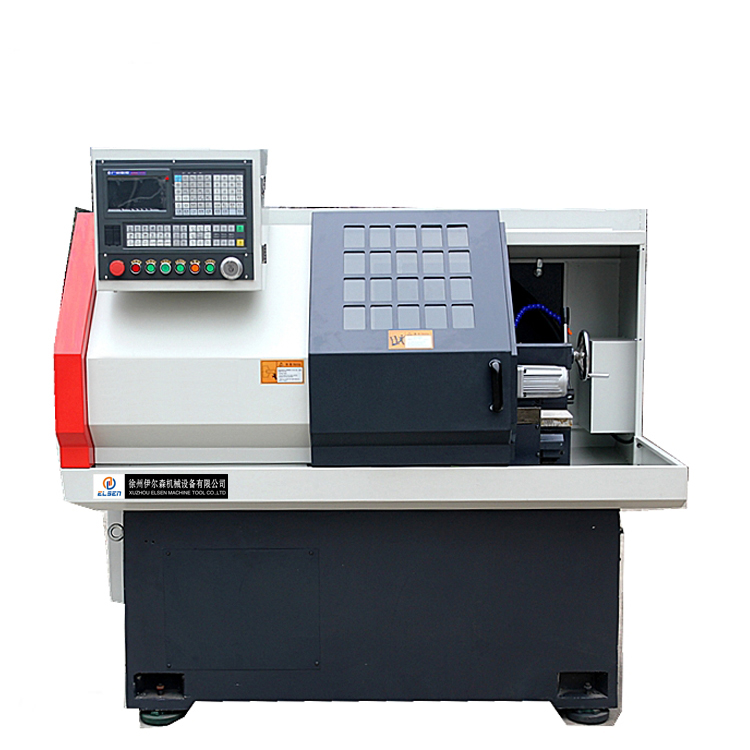

CK6130
    Publish time 2022-03-21 19:59
CK6130
lathe is widely used in processing and manufacturing the electrical appliance, instrumentation industry, automobile, motorcycle, fastener bearing, photographic and film machinery, hardware tools, watches, glasses, stationery, motors, valves and gas pipe and other high precise complex components.it is the ideal high efficent equipment in the hardware machining industry.
Specification
Unit
CK6130
Max. swing over bed
mm
Φ300
Max. swing over cross slide
mm
Φ100
Max. processing length
mm
260/320
X/Z axis max. travel
mm
300/350
Spindle nose

A2-5
Spindle bore
mm
Φ48
Bar capacity
mm
Φ41
Max. Spindle speed
rpm
2500
Chuck size
mm
160
Spindle motor power
kw
4
X/Z axis repeatability
mm
±0.005
X/Z axis feed motor torque
N.m
X:4 Z:4
X/Z rapid traverse
m/min
8/10
Tail stock quill dia.
mm
Φ52
Quill traverse
mm
90
Quill taper
#
MT4
Cutting tool shape size
mm
16*16
Total power capacity
KVA
7
Machine dimension(L*W*H)
mm
1600*1100*1650
Net weight(About)
kg
950
Standard configuration:
1) System:GSK980TB3, servo motor and drive.
2) 3-jaw manual chuck.
3) Four station electric tool post.
4) Manual tailstock.
5) Cooling system.
6) Lighting system.
7) Automatic lubrication system.

Optional configuration:
1). CNC system: GSK, Siemens, Fanuc, KND, etc.
2). Hydraulic chuck, pneumatic chuck .
3). Hydraulic tailstock, pneumatic tailstock.
4). 6-station electric tool post, 8- station electric tool post, Gang type tool
5). Automatic bar feeder.
