Application:

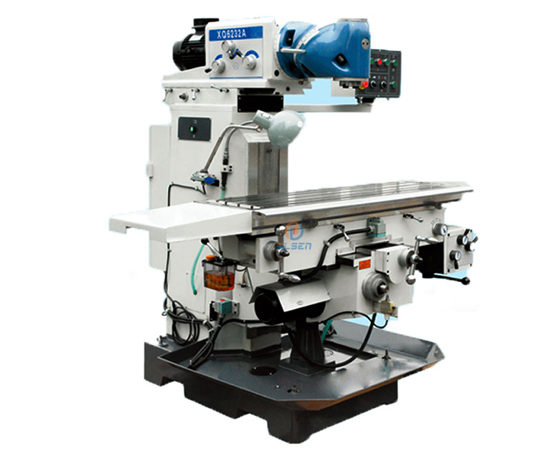

XQ6232A Professional vertical universal milling machine for sale can be used both for vertical milling and horizontal milling, with corresponding attachments, it can also mill various rotary surfaces and grooves, etc. Two-section revolving cutter head enables the spindle to revolve and adjust at any angle, and mill complicated parts with multi-angle and multi-face by one time of holding. It is the ideal machining equipment for the industries of mechanic manufacture, moulds, automobiles and motorcycles.

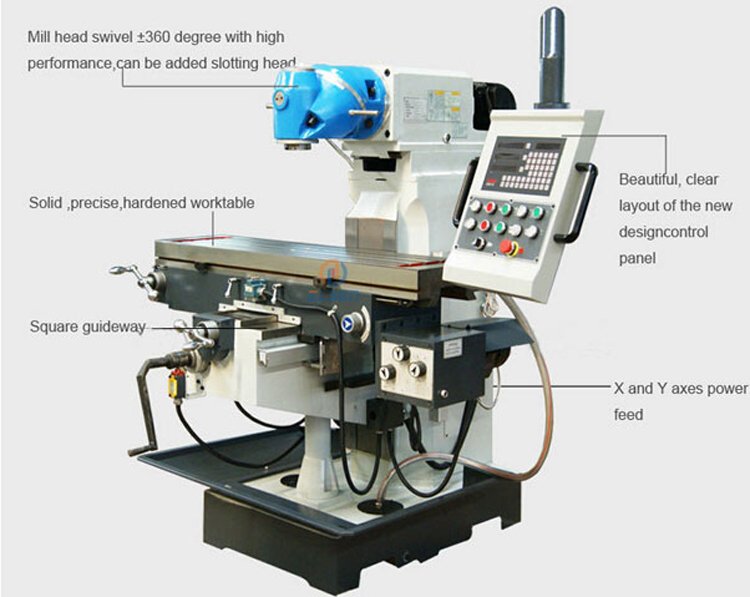

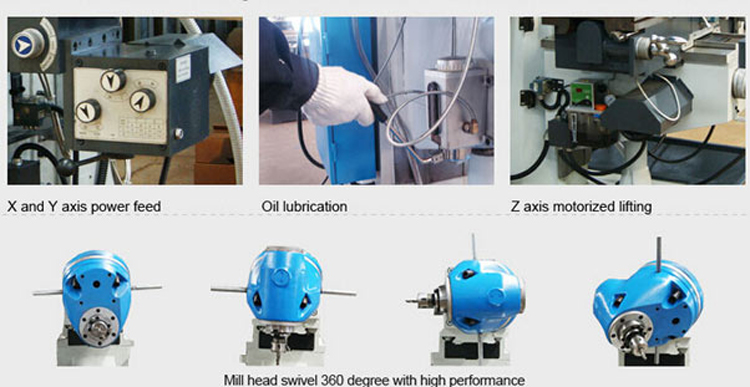

Features:
1. Universal milling head can swivel 360 degree
2.Three axis hardening treatment
3. Mechanical feeding device
4. Independent of the horizontal milling function
5. Automatic tools change universal milling machine
Specifications | XQ6232A |
Spindle taper | 7:24 ISO40 |
Max end milling | 125 (V)100(H) |
Swivel angle at awivel head(°) | ±360° |
Table size | 1250*320 |
T-slot(number-width-distance)(mm) | 3/14/70 |
Main motor(kw) | 2.2 |
Distance from spindle to table(mm) | 110-490 |
Distance from spindle to column(mm) | 0-500 |
Range of spindle speed | 35-1600 |
Range of longitudinal cross travel | 22-555(8rank) 810(rapid) |
Z-speed of table(mm/min) | 560 |
Motor for rapid device of table (X,Y) | 750 |
Motor for vertical device of table (Z) | 750 |
Overall dimensions(mm) | 1700*1560*1730 |
N.W/G.W (kg) | 1320/1420 |
