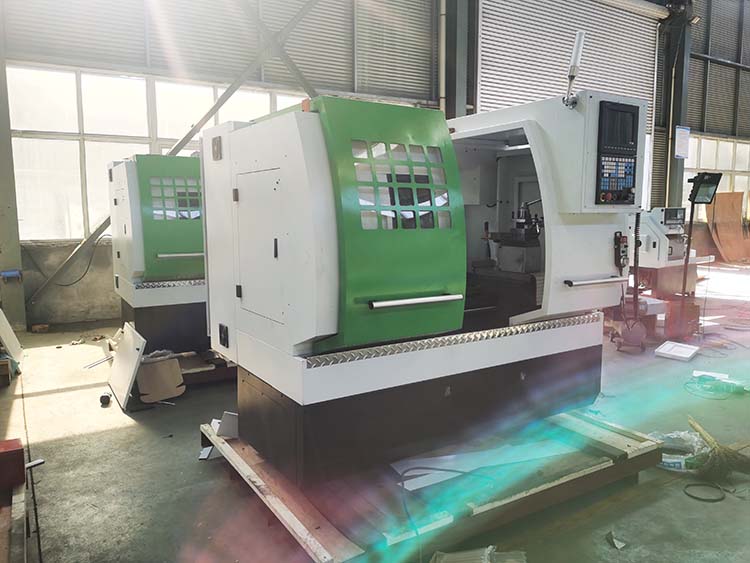

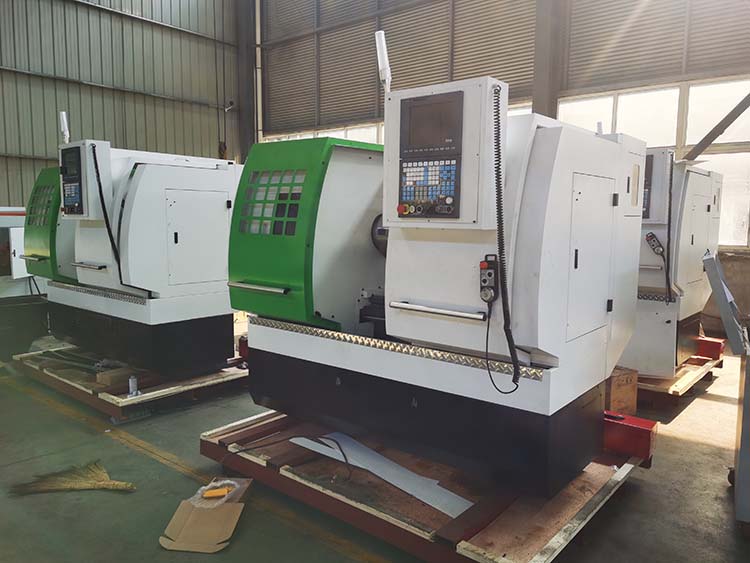

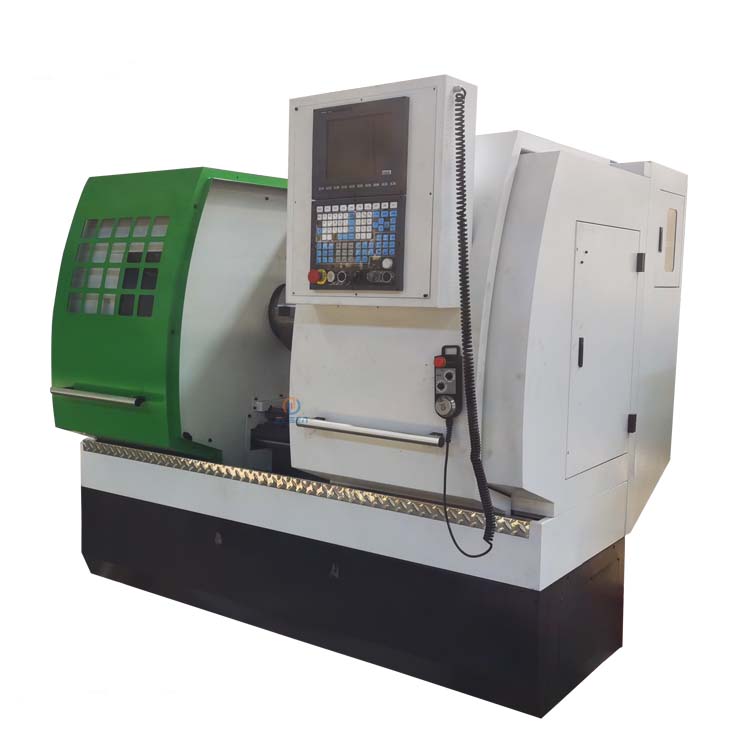

The machine tool suitable for High-precision turning and repair processing for surface of car wheel.
The machine tool has also the function of the general CNC lathes .
Just PROBE & Diamond CUT ! Once the machine has automatically probed the wheel profile, there is no need to waste time for programming our Alloy Wheel lathe. Just cut the wheel and store the profile on the system. Build up a library of Alloy wheel profiles.We save more time so you can cut more wheels!
1- Probe alloy wheel profile, transformation G code. 2- Diamond cut the wheel.
ITEMS
AWR30
AWR32
Max. swig over bed (mm)
Φ800mm (31’)
Φ840 (33’)
Max. swig over cross slide
Φ550mm
Φ570
Max. Size of alloy wheel
30’
32’
Cross slide travel (mm)
360mm
390
Width of the rail
400mm
420
Length of the rail
1630mm
1830
Three-jaw chuck size
15’
15’
Spindle speed range (rpm)
50~1600rpm
50~1600
Spindle speed control
Automatic
Automatic
Spindle bore (mm)
Φ82mm
Φ82
Taper of spindle bore
1:20/Φ 90
1:20(Φ90)
Taper of spindle nose
D1-8
D1-8
Max. size of tool post
25×25mm
25×25mm
Stations of tool carrier
4 position
4 position
Min. setting unit of motor
(Z) long 0.001mm, (X) cross 0.001mm
Moving speed of post
(Z) long 8m/min, (X) cross 4m/min
Motor power
11kw
11KW
Machine base
Whole cast iron base
Whole cast iron base
Machine size(L×W×H)
2430*1730*2100mm
2640×1920×2100
Net weight
3200kg
3400kgs
Standard Configuration:
1- 3-Jaws Chuck（With Special Soft Jaws) 2- Manual Quick Change Toolpost ,four-station turret, 3- Automatic lubrication system, 4- Turning the cooling system. 5- With probing system (TP300 Pioneer Sensing Probe TP300); 6- Diamond Cutter 1 set 7- CNC controller syntec 8- Full Enclose (Security Guard Door) 9- Specific Digital Optimization Software 10- Training Video CD 11- Work Lighting System
