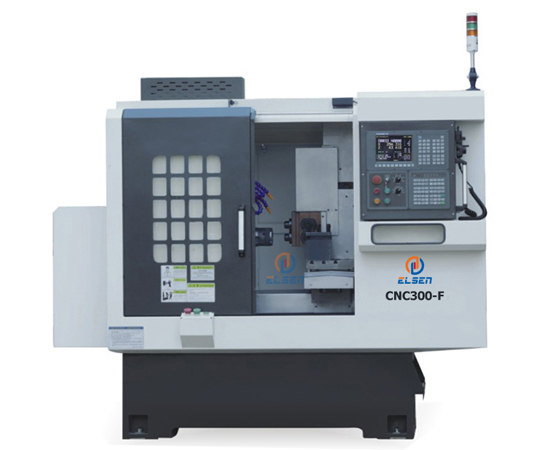

CNC300-F
    Publish time 2020-04-22 16:05
CNC300-F

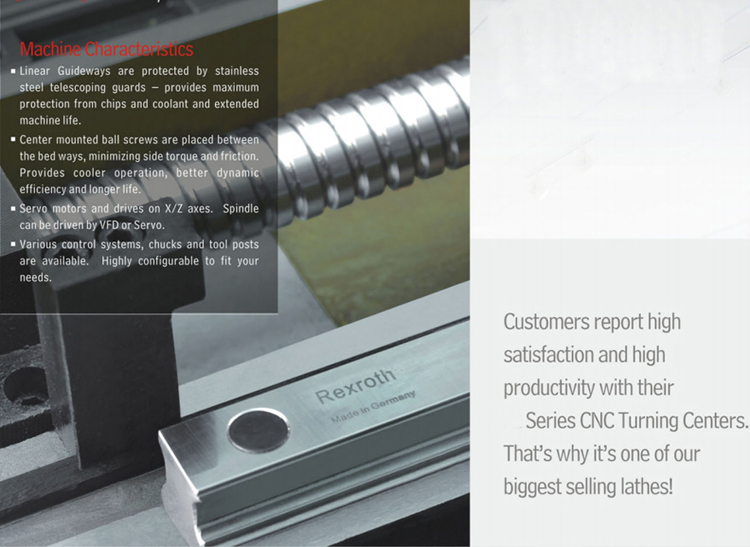

♦Linear guideways are protected by stainless steel telescoping guards for maximum protection and extending life

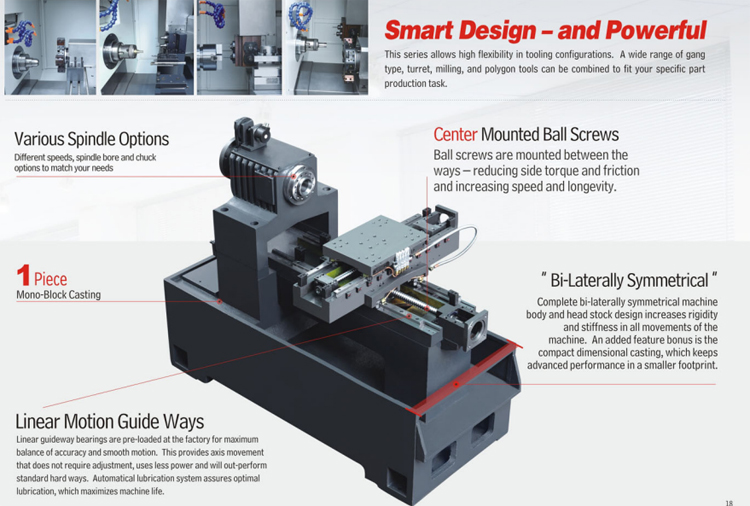

♦Ballscrew are out in the middle of linear guideway without side friction torque, have a better dynamic property and are more stable over long term

♦Servo X/Z axis motor. Spindle can be driven with a frequency inverter motor or servo motor

♦Various control systems, toolposts, and chuck are available to configure machine for the user's individual needs


Item Specifications Unit Parameters
Capacity Chuck/Collet inch Pneumatic collet,       Op:Hydraulic collet,Chuck 6"
Bed type/guideway Flat/Linear guider
Max swing over bed mm φ300
Max length of workpiece mm 300,Op:260(chuck)
Max swing over slide φ135
Spindle Spindle bore φ48 φ55 φ62
Max dia of through hole mm φ40 φ46 φ52
Spindle nose mm A2-5 A2-5 A2-6
Spindle speed rpm 3000 2500 2000
Op:4500 Op:4000 Op:3500
Op:5000 Op:4000
Spindle motor power kw 4
Axis X /Z axis travel 350/300
X/Z rapid traverse kw 25/15,Op:25/25
Tool Post Type Gang type
Op:4-station turret
Op:8-station turret
No.of tool stations nos 4-10
Size Power capacity KVA 9
Overall dimension(L*W*H) mm 1700x1200x1550
Weight kg 1800


Standard Features
Pneumatic collet

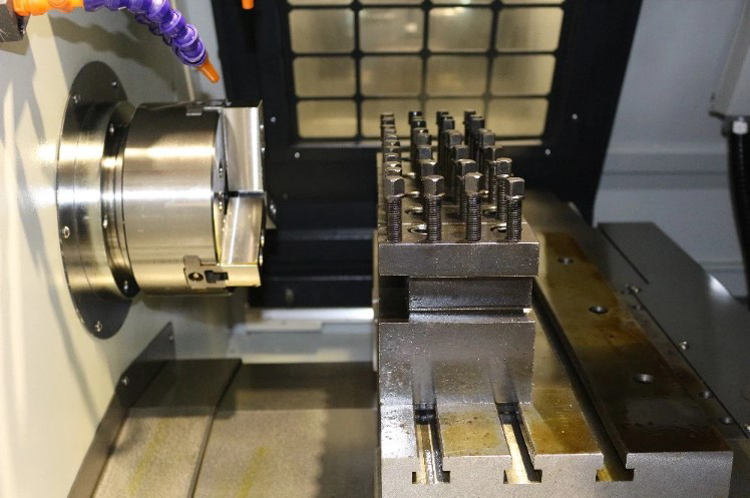

Gang Type Tooling
Without Tailstock
Auto Lubrication System
Auto Coolant System
Work Lamp & Built In Safety Features
Optional configurations
Hydraulic collet,chuck 6"
Siemens/ Fanuc/Mitusbishi/GSK cnc controller
4-station toolpost,8-station turret
Living Tooling
Bar Feeder
