1. Precision ground and hardened bed ways
2. The spinlde bore is supported with precision roller bearings
3. Head stock gears are made of high quality steel ground and hardened.
4. Easy operating speed change levers
5. Whole foot stand
6. Easy operating gear box has various feed sand thread cutting function.
|
Specification |
CM6241 |

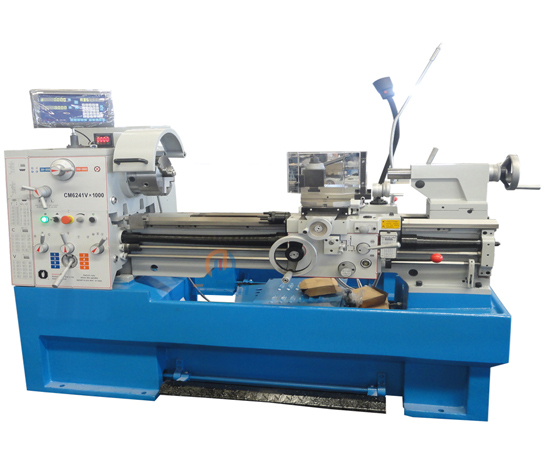

CM6241V |
|
|
Swing over bed |
410mm |
||
|
Swing over cross slide |
255mm |
||
|
Swing in gap |
580mm |
||
|
Length of gap |
190mm |
||
|
Distance between centers |
1000/1500mm |
||
|
Width of bed |
250mm |
||
|
Spindle nose |
D1-6 |
||
|
Spindle bore |
52mm |
||
|
Taper of spindle bore |
No.6 Morse |
||
|
Range of spindle speed |
16 changes 45-1800r/min |
30-550r/min or 550-3000r/min |
|
|
Max. travel of compound rest |
140mm |
||
|
Max. travel of cross slide |
210mm |
||
|
Leadscrew pitch |
4T.P.I. |
||
|
Max. Section of tool |
20 x 20mm |
||
|
Longitudinal feeds range |
0.05-1.7mm/rev |
||
|
Cross feeds range |
0.025-0.85mm |
||
|
Metric threads range |
39 kinds 0.2-14mm |
||
|
Inch threads range |
45 kinds 2-72T.P.I. |
||
|
Diametrical pitches range |
21 kinds 8-44 D.P. |
||
|
Module pitches range |
18 kinds 0.3-3.5 M.P. |
||
|
Dia.of tailstock sleeve |
50mm |
||
|
Travel of tailstock sleeve |
120mm |
||
|
Morse taper of tailstock sleeve |
No.4 Morse |
||
|
Cross adjustment |
±13mm |
||
|
Power of main motor |
2.2/3.3kw( 3.8/4.5HP) 3PH or 5HP |
||
|
Power of coolant pump |
0.1kw (1/8HP), 3PH |
||
|
Overall Dimension (LxWxH) |
1940x 850x1320mm/2440x850x1320mm |
||
|
Packing size (LxWxH) |
2060x 900x1640mm/2560x900x1640mm |
||
|
Net weight/Gross weight |
1160kg/1350kg, 1340kg/1565kg |
||
