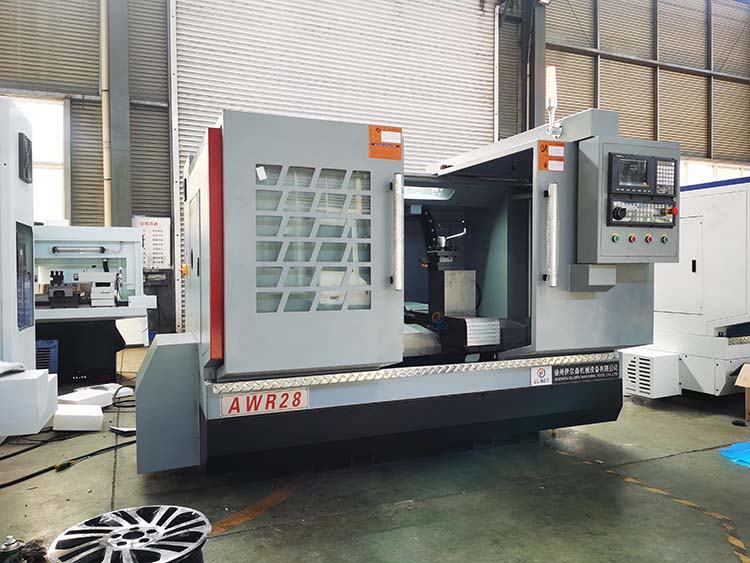

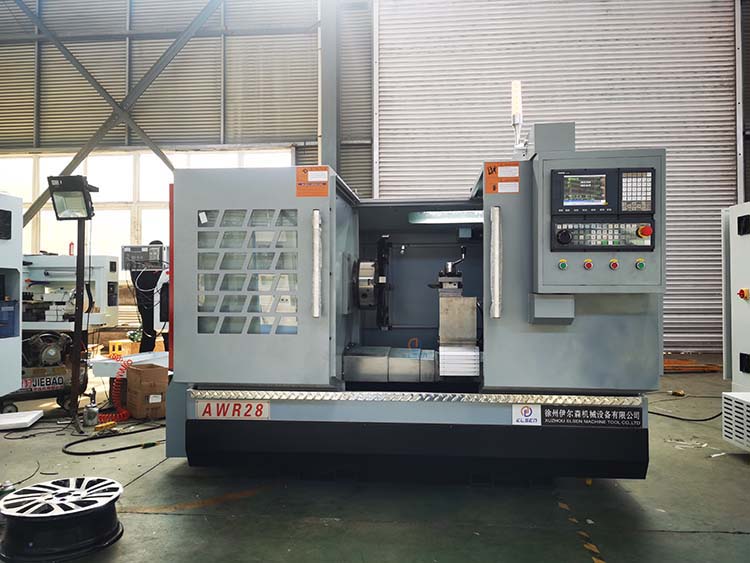

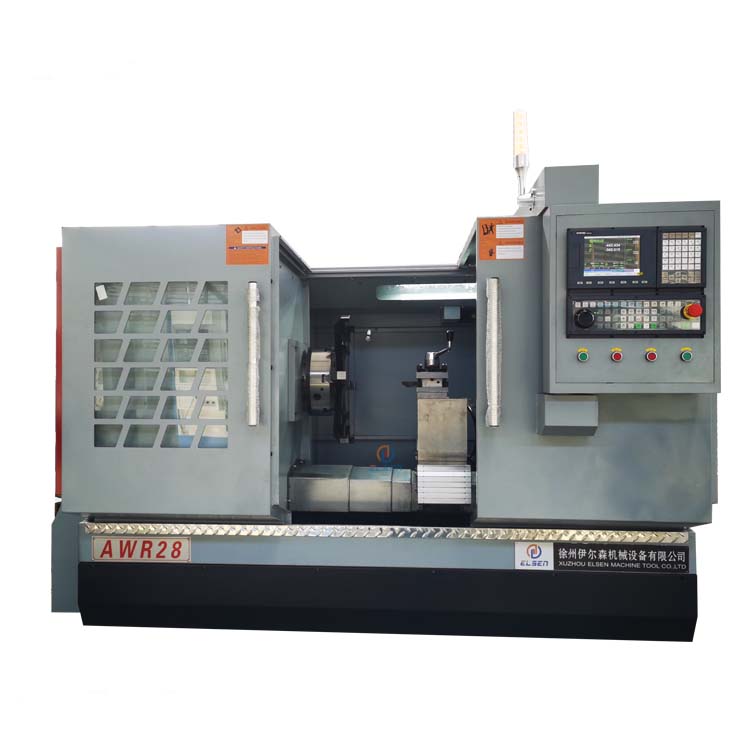

AWR28
    Publish time 2020-02-20 20:28
AWR28

The machine tool suitable for High-precision turning and repair processing for surface of car wheel.

The machine tool has also the function of the general CNC lathes .


Just PROBE & Diamond CUT !
Once the machine has automatically probed the wheel profile, there is no need to waste time for programming our Alloy Wheel lathe. Just cut the wheel and store the profile on the system. Build up a library of Alloy wheel profiles.We save more time so you can cut more wheels!

1- Probe alloy wheel profile, transformation G code.

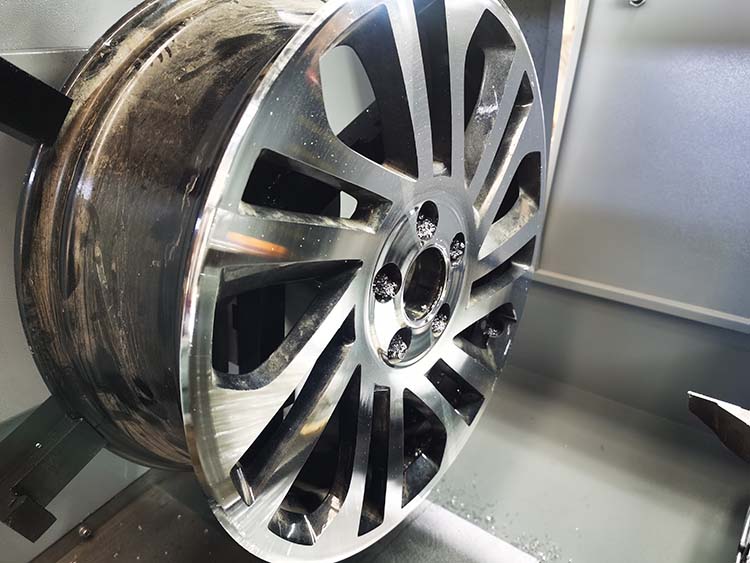

2- Diamond cut the wheel.

ITEMS AWR22 AWR26 AWR28
Max. swig over bed (mm) Φ635(25’) Φ720(28’) Φ770 (30’)
Max. swig over cross slide  Φ410 Φ540  Φ550
Max. Size of alloy wheel 22’ 26’ 28’
Cross slide travel (mm) 330 350 390
Width of the rail 265 330 330
Length of the rail 1180 1320 1300
Three-jaw chuck size 10’ 12’ 12’
 Spindle speed range (rpm) 50~2500 50~2000 50~2000
Spindle speed control Automatic Automatic Automatic
Spindle bore  (mm) Φ60 Φ60 Φ60
Taper of spindle bore MT6 MT6 MT6
Taper of spindle nose A2-6 A2-6 A2-6
Max. size of tool post 25×25mm 25×25mm 25×25mm
Stations of tool carrier 4 position 4 position 4 position
Min. setting unit of motor (Z) long 0.001mm,  (X) cross 0.001mm
Moving speed of post (Z) long 8m/min,  (X) cross 4m/min
Motor power 5.5KW 7.5KW 7.5KW
Machine base Whole cast iron base Whole cast iron base Whole cast iron base
Machine size(L×W×H)  2200 ×1600×1800 2300×1600×2100 2300 ×1600×2100
Net weight 1900kgs 2600kgs 2600kgs


Standard Configuration:

1- 3-Jaws Chuck（With Special Soft Jaws)
2- Manual Quick Change Toolpost ,four-station turret,
3- Automatic lubrication system,
4- Turning the cooling system.
5- With probing system (TP300 Pioneer Sensing Probe TP300);
6- Diamond Cutter 1 set
7- CNC controller syntec
8- Full Enclose (Security Guard Door)
9- Specific Digital Optimization Software
10- Training Video CD
11- Work Lighting System
