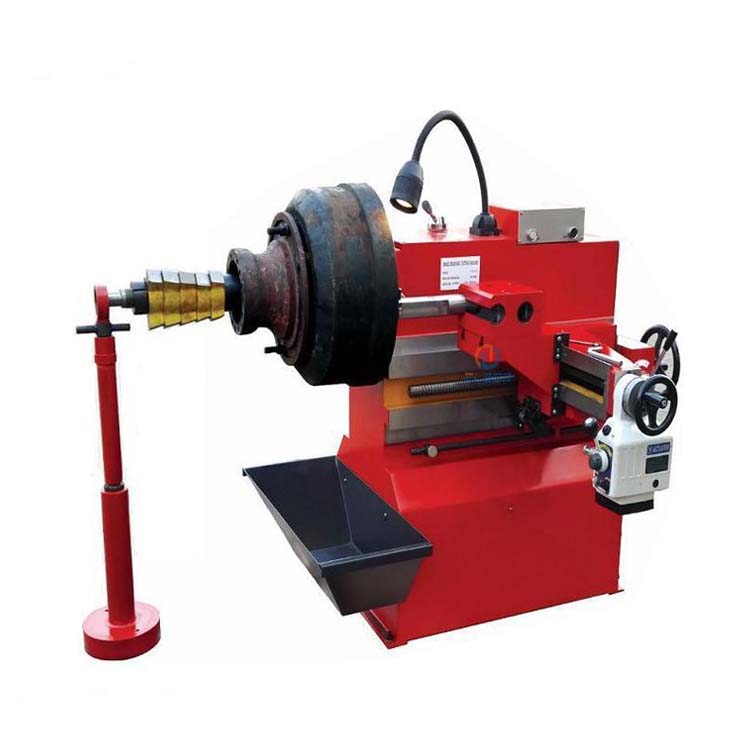

T8470
    Publish time 2022-03-24 21:16
T8470
Application:
♦Applicable for repairing brake discs of large, medium & small vehicles and large & medium brake drums;
♦Available feeding in either direction, enables high efficiency;
♦Adjustable turning depth limit with auto stop function;
♦Fit for more models, the max turning diameter for brake drum is 700mm;
♦Special support enables stability for turning heavy drums;
♦2 faces of brake disc can be turned simultaneously;
Model
Unit
T8445
T8465
T8470
Processing dia of brake drum
mm
180-450
180-650
220-700
Processing dia of brake disc
mm
≦400
≦500
≦550
Rotating speed of workpiece
r/min
30/52/85
30/52/85
30/54/80
Max travel of tool
mm
170
250
300
Feeding capacity
mm/r
0.16/0.30
0.16/0.30
Variable speed
Motor power
kw
1.1
1.1
1.5
Overall dimension
mm
690x890x880
800x875x1050
1100x905x1172
Weight
kg
320
550
600
