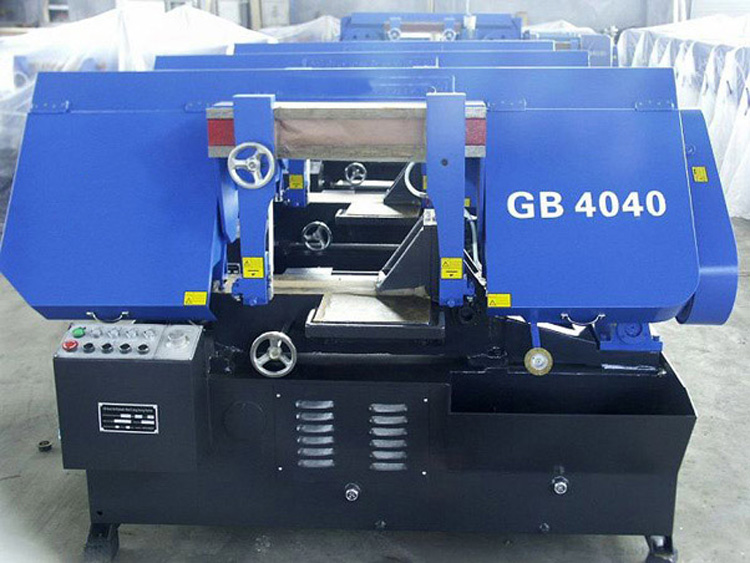

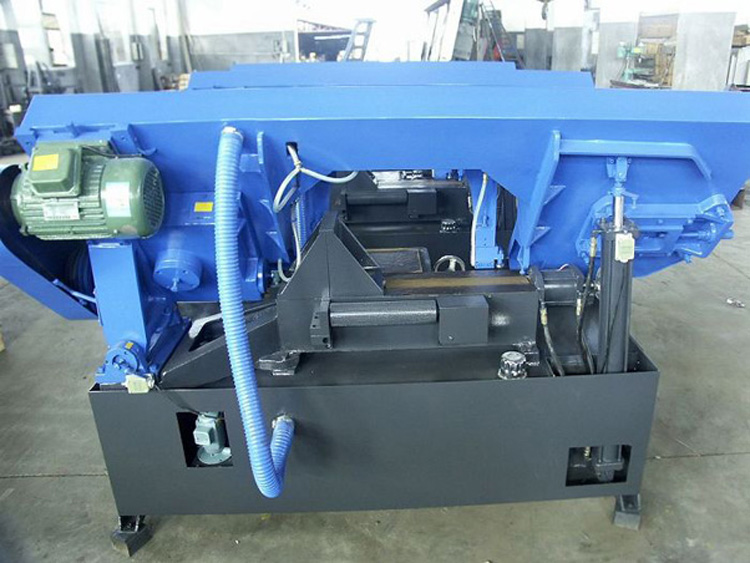

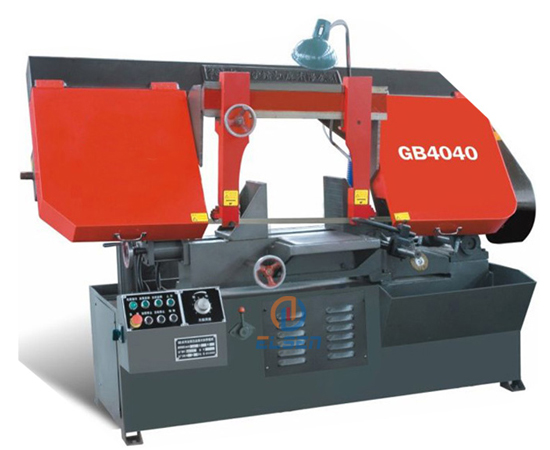

GB4040
    Publish time 2020-05-12 12:41
GB4040

1 The cut-off time of the machine is 4 to5 times that of hack sawing machine

2 The saw kerfs is 2mm narrower than of hack sawing machine.

3 It saves the consumption of electricity from 50%-60% the hack sawing machine with the same work.

4 Hydraulic feeding, step less speed regulation.



Model

GB4040



Max. Cutting Diameter

Round: Φ400

mm

Plate: 280*450

mm

Blade Speed

20.30.37.53

m/min

Blade Size

1.1*34*4320

mm

Main Motor Output

3

kw

Hydraulic Pressure

0.37

kw

Coolant Pump

0.04

kw

Machine Size(L*W*H)

2200*1050*1350

mm

Net Weight

1100

kg

Voltage

380V  50HZ 3Phase
