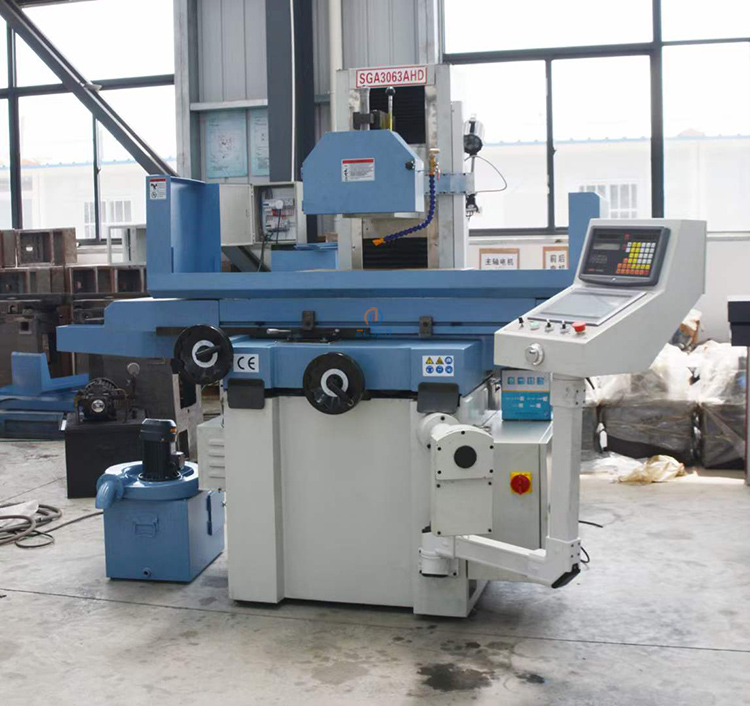

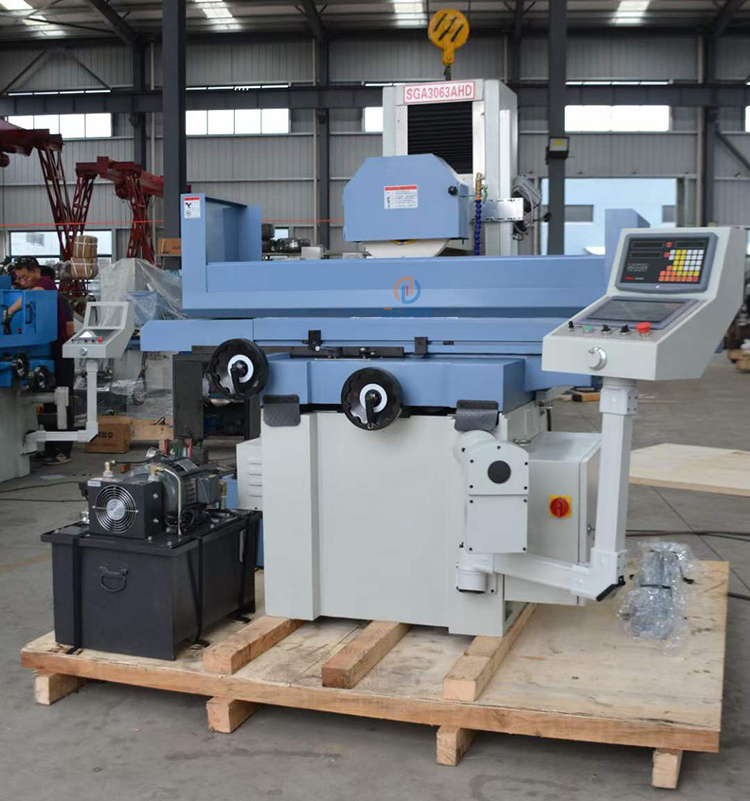

SG3063AHD

Publish time 2022-07-20 17:19

Product information

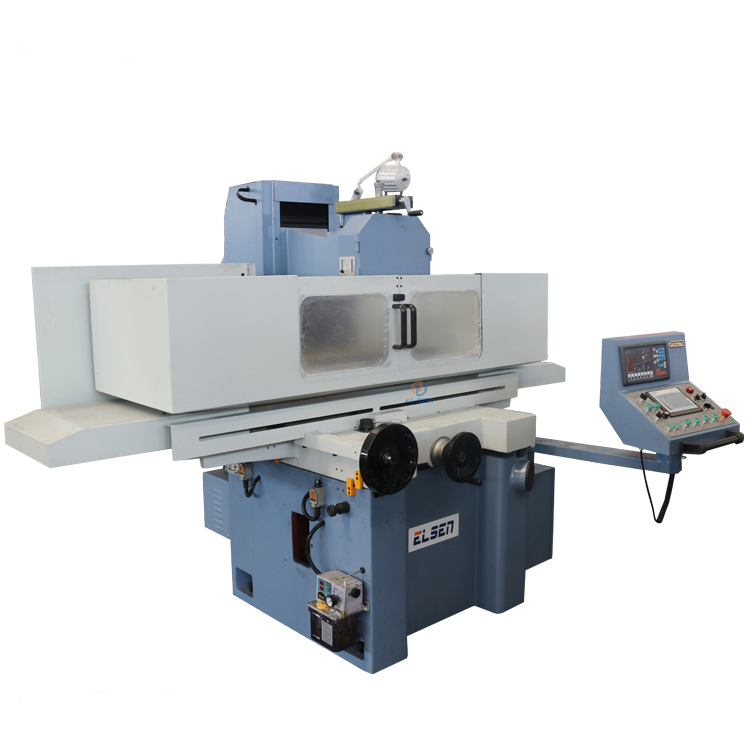

    SG Series saddle moving grinder, the table size covers 200*500, 250*500, 300*630, 300*1000, 400*800, 400*1000.      Well designed perfect symmetrical structure insure the machine is very suitable for precision grind. Saddle makes cross movement driven by AC motor, work table make reversing movement driven by hydraulic, and spindle make elevating movement and is driven by manual (AH series), AC motor (AHR series), or AC servo motor (AHD series).

Model		SG3063AH	SG3063AHR	SG3063AHD
Table size	mm	305*635	305*635	305*635
Magnetic chuck size	mm	300*600	300*600	300*600
Max.distance from spindle center to table	mm	580	580	580
Table cross travel	mm	340	340	340
Table longitudinal travel	mm	765	765	765
Max.loading capacity (include chuck)	kg	270	270	270
Speed of table longitudinal move	m/min	5-25	5-25	5-25
Cross motion
Intermittent feed rate	mm/t	0.1-8	0.1-8	0.1-8
Rapid speed	mm/min	990	990	990
Feed of handwheel	mm/div	0.02	0.02	0.02
Vertical Motion
Auto down feed rate	mm/t	-	-	0.005-0.05
Rapid down speed	mm/div	-	650	480
Feed of handwheel	mm/div	0.005	0.005	0.005
Spindle rotating speed	r/min	1450 (50HZ) / 1750 (60HZ)
Grind wheel size	mm	35040127
Spindle motor power	kw	4
Machine size	mm	290022001900
Gross weight	kg	2800
Package size	mm	235022202210
