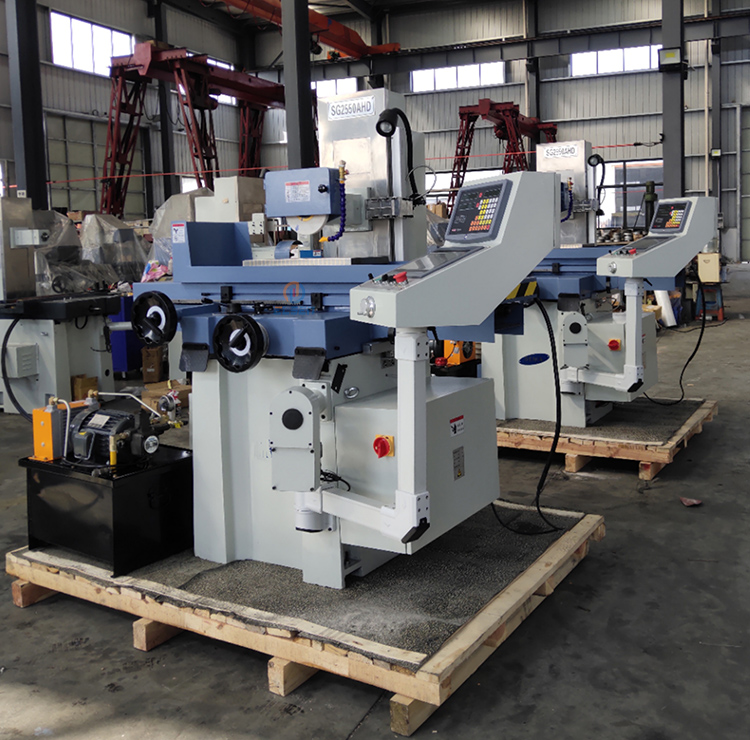

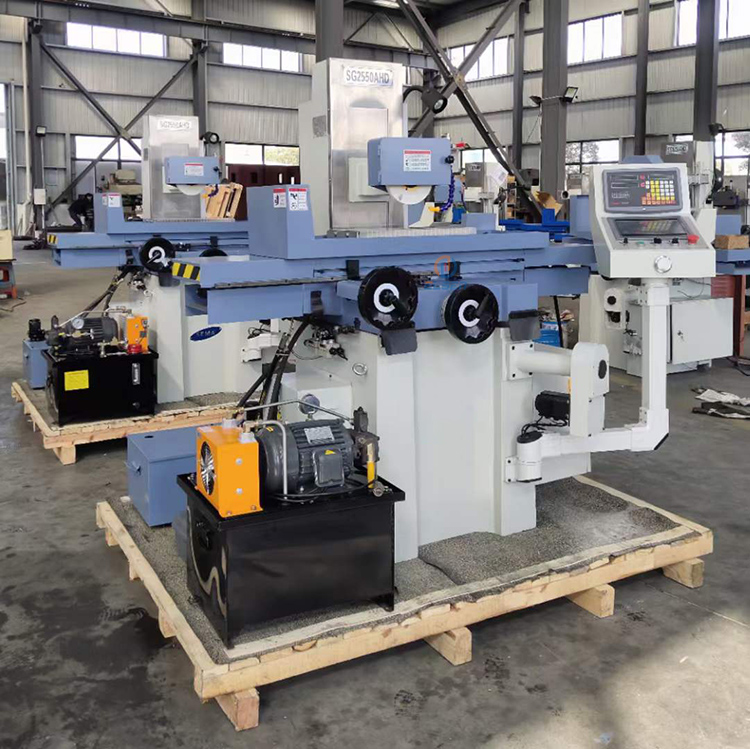

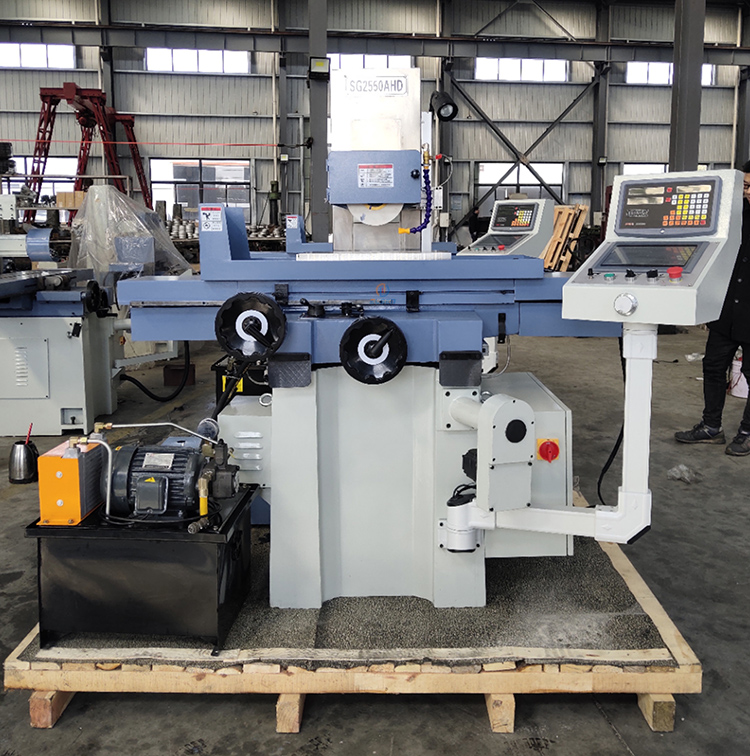

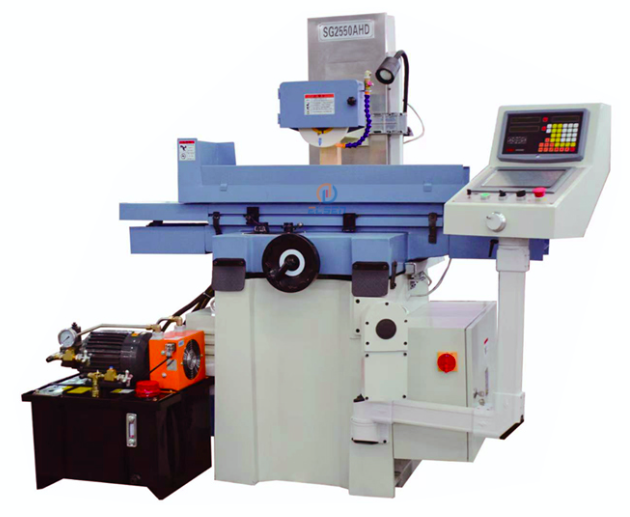

SG2550AHD

Publish time 2022-07-20 16:58

Model		SG2550AH	SG2550AHR	SG2550AHD
Table size	mm	254*508	254*508	254*508
Magnetic chuck size	mm	250*500	250*500	250*500
Max.distance from spindle center to table	mm	450	450	450
Table cross travel	mm	275	275	275
Table longitudinal travel	mm	560	560	560
Max.loading capacity (include chuck)	kg	180	180	180
Speed of table longitudinal move	m/min	5-25	5-25	5-25
Cross motion
Intermittent feed rate	mm/t	0.1-8	0.1-8	0.1-8
Rapid speed	mm/min	990	990	990
Feed of handwheel	mm/div	0.02	0.02	0.02
Vertical Motion
Auto down feed rate	mm/t	-	-	0.005-0.05
Rapid down speed	mm/div	-	650	480
Feed of handwheel	mm/div	0.005	0.005	0.005
Spindle rotating speed	r/min	2850 (50HZ) / 3450 (60HZ)
Grind wheel size	mm	2002031.75
Spindle motor power	kw	2.2
Machine size	mm	230016001675
Gross weight	kg	1800
Package size	mm	200021002150
