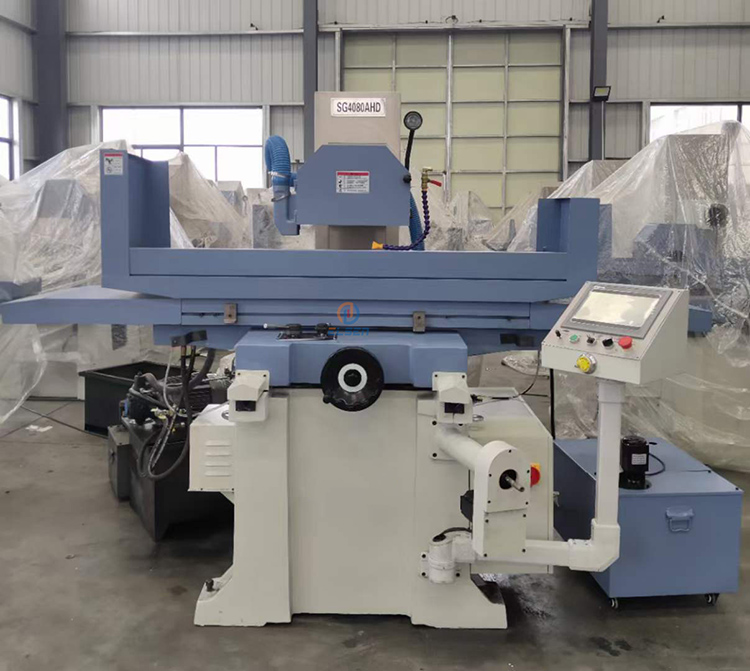

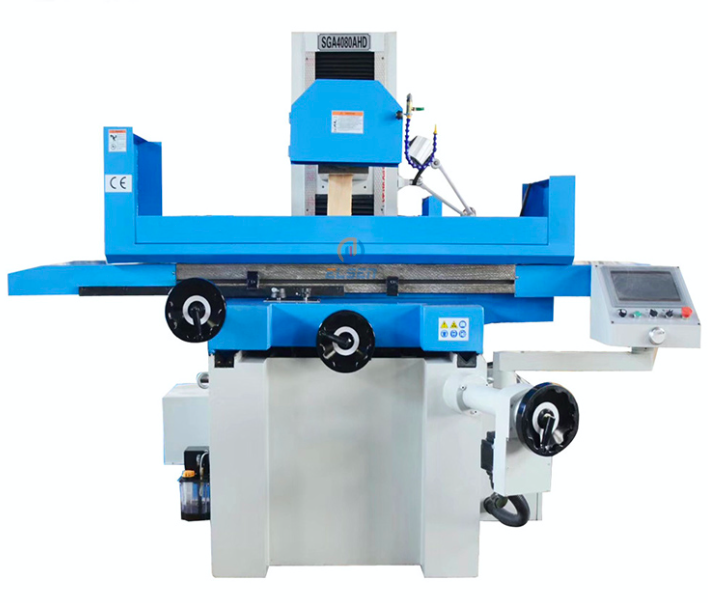

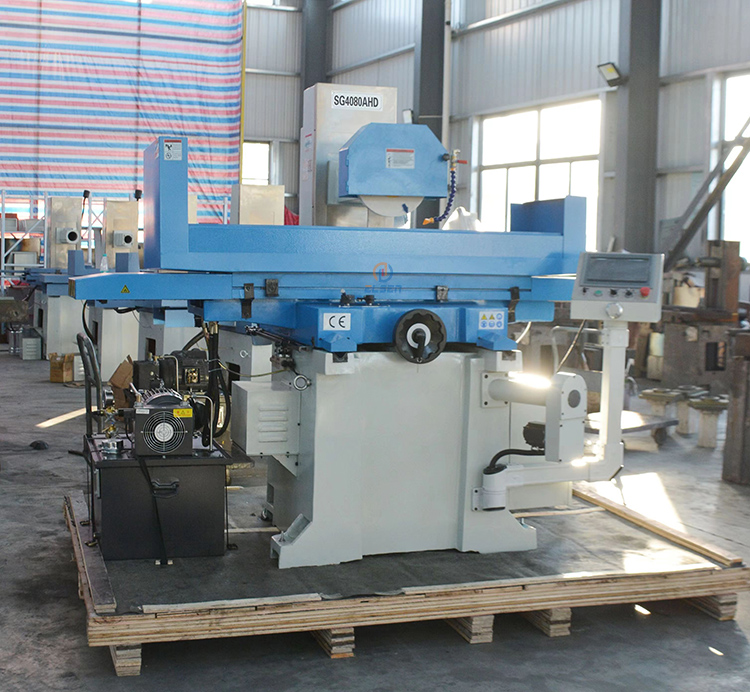

SG4080AHD
    Publish time 2022-07-20 17:08
SG4080AHD
Model

SG4080AHD
Table size
mm
406*806
Magnetic chuck size
mm
400*800
Max.distance from spindle center to table
mm
480
Table cross travel
mm
420
Table longitudinal travel
mm
830
Speed of table longitudinal move
m/min
16
Number of T-slot

1x14
Cross Feed of handwheel
mm/div
0.02/4
Vertical MPG feed
mm
0.001/0.01/0.1
Wheel size
mm
300x30x75
Spindle speed
rpm
1440
Total power
kw
7.5
Spindle motor
kw
4
Surface of parallelism
mm
0.005/300
Hydraulic motor
kw
2.2
Vertical feed servo motor
kw
0.75
Cross feed motor
kw
0.04
Tank
L
80
Coolant pump
kw
0.09
Packing size
mm
2660x1970x2220
Weight
kg
2500
Standard Accessories

Operation manual          Magnetic chuck controller
Working lamp                 Coolant tank
Balancing arbor              Wheel flange and extractor
Standard grind wheel     Wheel dresser stand
Magnetic chuck              Leveling wedge and screw
Optional Accessories

Balancing stand        Dust exhaust
Magnetic separator   Parallel wheel dresser
Paper filter                 2 axis digital readout
Oil tank guard            Extra wheel flange
