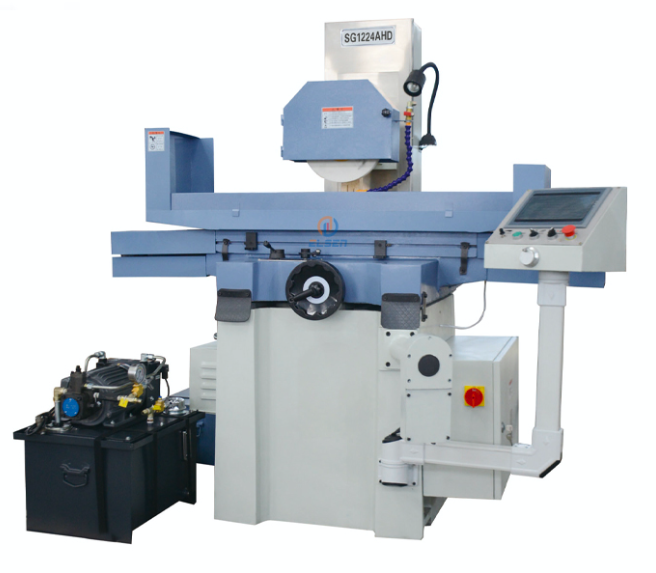

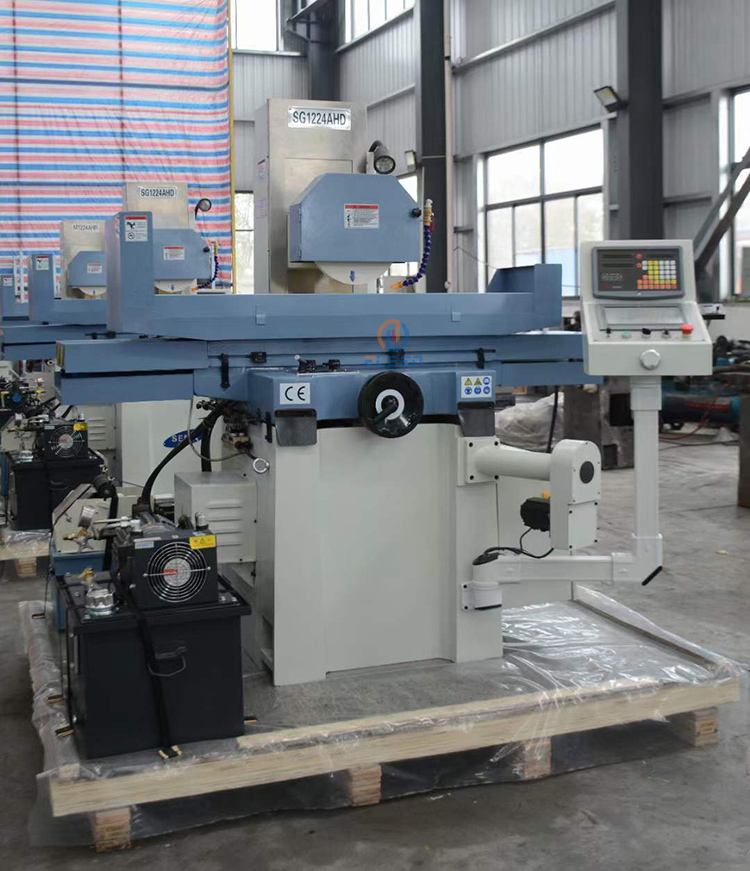

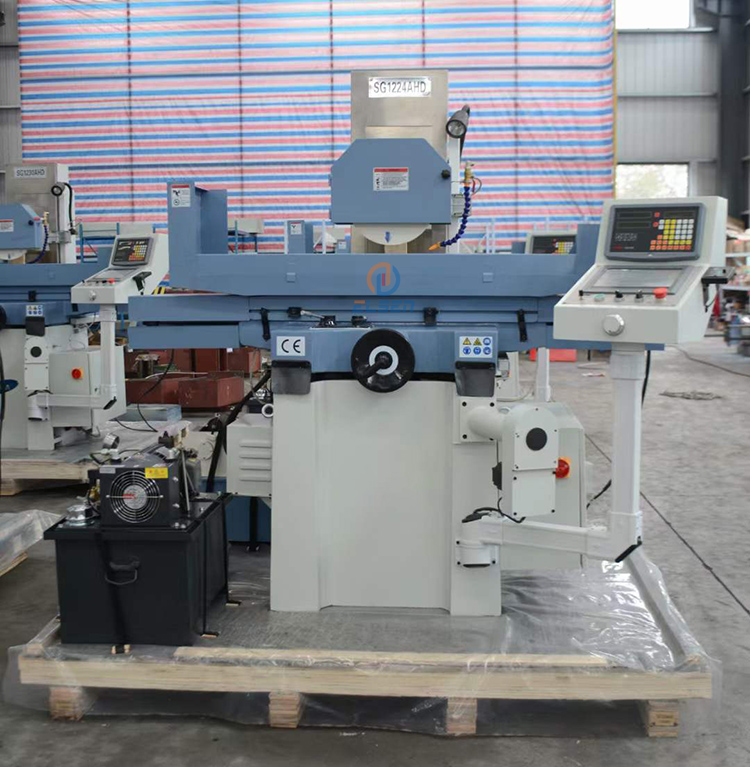

SG1224AHD
    Publish time 2022-07-20 16:54
SG1224AHD
Model
Unit
SG1224AHD
SG1230AHD
Table Size (L× W)
mm
600×300
690×300
Max movement of working table(L× W)
mm
630×320
680×300
T -Slot number×width
mm
1×14
1×14
Max distance from spindle center to table surface
mm
490
490
Wheel Size(Outer diameter×width×Inner diameter)
mm
φ300×30×Φ75
φ300×30×Φ75
Wheel speed 50HZ/60HZ
r/min
1440
1440
Longitudinal speed of working table
m/min
3-20
3-20
Cross feed Continuously(Variable Transmission)
mm/min
240
240
Cross feed Intermittently(Variable Transmission)
mm/times
0-6
0-6
Cross feed(front and rear) on handwheel(Per revolution)
mm
5.0
5.0
Cross feed(front and rear) on handwheel(Per graduation)
mm
0.02
0.02
Vertical(up and down) feed on handwheel(Per revolution)
mm
2.0
2.0
Vertical(up and down) feed on handwheel(Per graduation)
mm
0.01
0.01
Speed of vertical feed
mm/min
500
500
Spindle motor
kw
4
4
Coolant pump motor
W
40
40
Lifting motor
W
120
120
Hydraulic motor
kw
2.2
2.2
Working pressure
Mpa
4
4
Oil tank capacity
L
100
100
Max flow
L/min
20
20
Precision
mm
300:0.005
300:0.005
Surface roughness
μm
Ra0.32
Ra0.32
Weight Net/Gross
kg
1300、1430
1400、1530
Overall dimension(L×W×H)
mm
1960x1480x1850
1960x1480x1850
Package dimension(L×W×H)
mm
2000x1640x2020
2000x1640x2020
