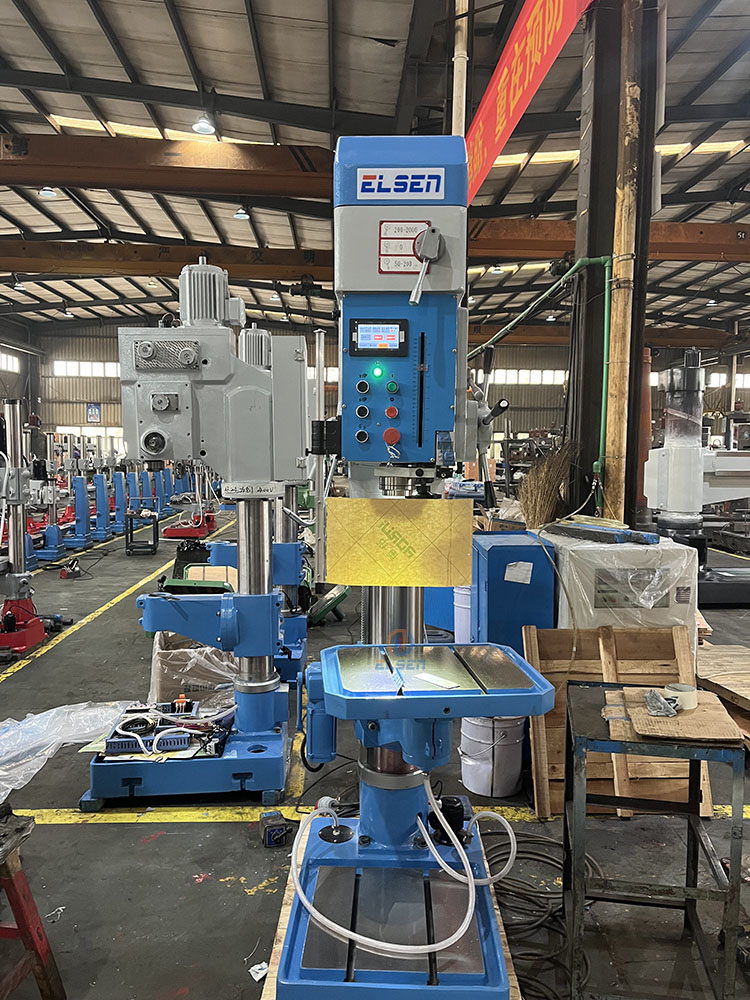

ZWB5030 Variable Speed
    Publish time 2022-03-27 16:15
ZWB5030 Variable Speed
1. MAGNETIC BRUSHLESS
2. ELECTRIC LIFTING WORKTABLE
3. VISUALIZED OPERATION SCREEN DATE CAN BE XISUALIZED OPERATION
4. PRECISION AND HIGH QUALITY HEADSTOCK
Model
Unit
ZWB5030
ZWB5040
ZWB5050
Max. drilling capacity
mm
30
40
50
Max. tapping capacity
mm
M20
M27
M30
Max Spindle travel
mm
135
180
240
Spindle taper

MT3
MT4
MT5
Diameter of column
mm
120
160
180
Spindle speed
r/min
50-300,Neutral,300-2500
50-250,Neutral,250-2500
50-200,Neutral,200-2000
Rotate angle of worktable along column
degree
180
180
180
Worktable travel
mm
480
550
550
Distance spindle axis to column surface
mm
320
360
360
Availability working area of worktable
mm
420x360
470x390
470x390
Availability working area of base
mm
400x390
450x460
450x460
T slot size of worktable
mm
2-14
2-14
2-14
T slot size of base
mm
2-18
2-18
2-18
Max.distance spindle nose to table
mm
540
570
540
Max.distance spindle nose to base
mm
1110
1160
1130
Max.torque
N.m
95
200
350
Main motor power
kw
2.2
3
4
Feed motor power
w
90
90
90
Feed speed rate
mm/min
21-213
18-183
20-204
Cooling pump motor
w
40
40
40
Electromagnetic clutch power
w
21
24
32
GW / NW
kg
560/510
745/690
905 / 845
Machine size
mm
960x500x1950
1045x665x2095
1055x665x2150
Packing size
mm
1100x620x2260
1170*680*2330
1170*680*2390
