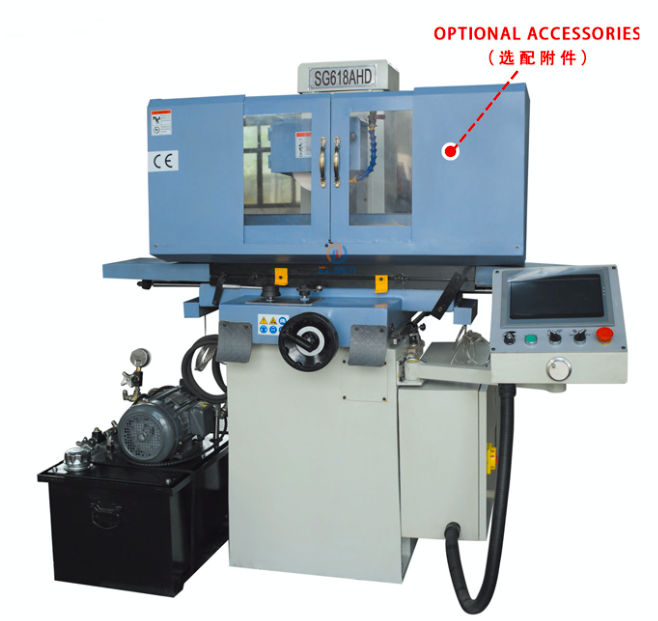

SG618AHD
    Publish time 2022-07-20 16:51
SG618AHD


Model
Unit
SG618AHD
Table Size (L× W)
mm
460×180
Max movement of working table(L× W)
mm
500×190
T -Slot number×width
mm
1×12
Max distance from spindle center to table surface
mm
335
Wheel Size(Outer diameter×width×Inner diameter)
mm
φ180×13×Φ31.75
Wheel speed 50HZ/60HZ
r/min
2840
Longitudinal speed of working table
m/min
3-23
Cross feed Continuously(Variable Transmission)
mm/min
150
Cross feed Intermittently(Variable Transmission)
mm/times
0-5
Cross feed(front and rear) on handwheel(Per revolution)
mm
2.5
Cross feed(front and rear) on handwheel(Per graduation)
mm
0.02
Vertical(up and down) feed on handwheel(Per revolution)
mm
0.1
Vertical(up and down) feed on handwheel(Per graduation)
mm
0.01
Spindle motor
kw
1.1
Coolant pump motor
W
40
Lifting motor
W
0.75
Hydraulic motor
kw
1.5
Working pressure
Mpa
3
Oil tank capacity
L
60
Max flow
L/min
18
Precision
mm
300:0.005
Surface roughness
μm
Ra0.32
Weight Net/Gross
kg
800、900
Overall dimension(L×W×H)
mm
1700x1150x1900
