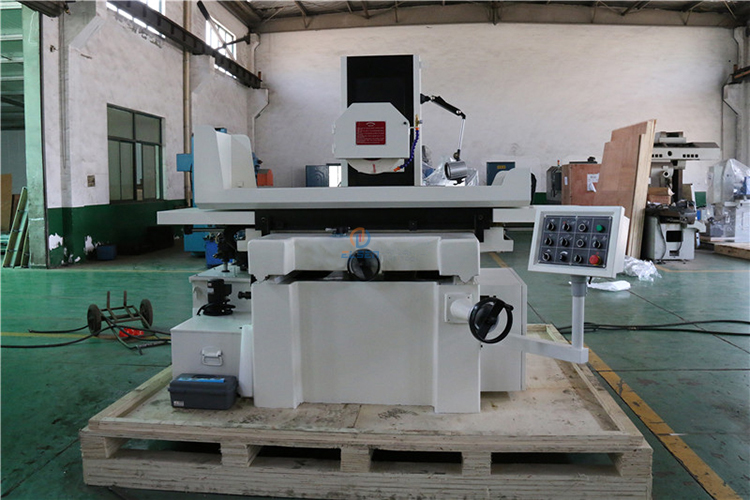

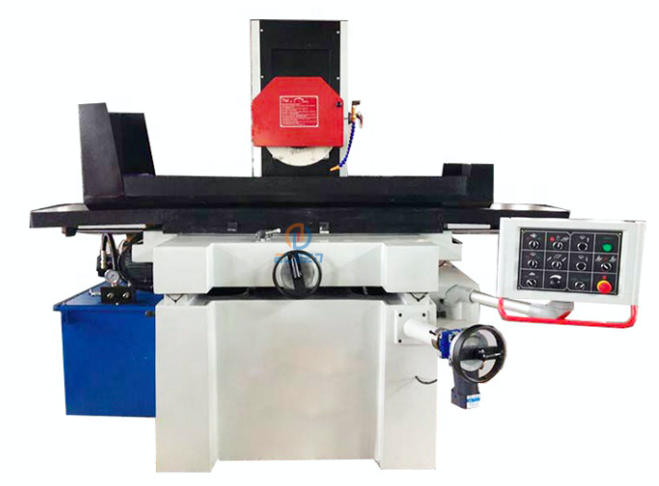

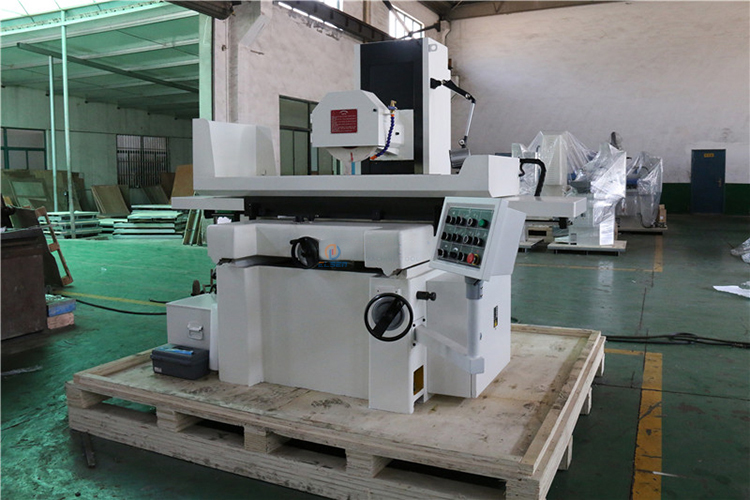

MY4080
    Publish time 2022-07-20 17:14
MY4080
Specifications
Units
MY4080
Table size (L * W)
mm
800*400
Table travel (L * W)
mm
900*480
Table T slot (number * width)
mm
3*14
Distance spindle center line to table
mm
600
Wheel size (O. D * W * I. D.)
mm
350*40*127
Wheel speed 50HZ
r/min
1450
Wheel speed 60HZ
r/min
1680
Table longitudinal moving speed
m/min
3-25
Table corss moving
Continuous feed speed
mm/min
600
Intermittent feed speed
mm/t
0-8
Hand feed per rev
mm/rev
5
Hand feed per gra
mm/gra
0.02
Head vertical moving
Hand feed per rev
mm/rev
0.8/1.0
Hand feed per gra
mm/gra
0.01
Fast moving speed
mm/min
500
Spindle motor power
kw
4
Coolant motor power
w
125
Head lifting motor
w
180
Hydraulic system
Hydraulic motor
kw
2.2
Machining surface parallelism
mm
0.005/300
Surface roughness
um
Ra0.4
Electro Magnetic chuck size
mm
800*400
Machine weight
kg
2800/3200
Overall dimension(L * W * H)
mm
2460*2140*2150
