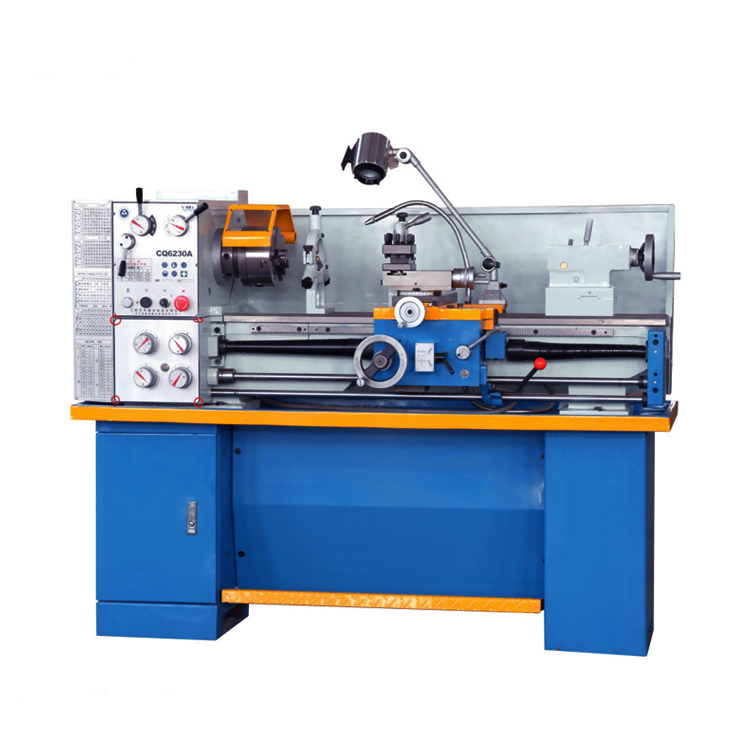

CQ6230A
    Publish time 2022-03-24 16:10
CQ6230A
Feature:
Precision ground and supersonic frequency hardened bed ways.
It features with high accuracy and well well-resisting.
The spindle is supported with precision roller bearing.
Head stock gears are made of high quality steel ground and hardened.
Easy operating speed change levers.
Removable gap is provided for larger diameter work.
Easy operating gear box has various feeds and thread cutting function.
With or without foot stand for optional.
Right angle appearance or circular appearance for optional.
Specification
CQ6230A
CQ6232C
Swing over bed
310mm
330mm
Swing over cross slide
180mm
180mm
Max swing over gap
450mm
470mm
Distance between centers
750/910/1000mm
750/910/1000mm
Width of bed
181mm
181mm
Taper of spindle bore
MT5
MT5
Spindle bore
38mm
38mm
Range of spindle speeds
65-1810rpm
65-1810rpm
Range of longitudinal feeds
0.0527-1.2912mm/rev
0.0527-1.2912mm/rev
Range of cross feeds
0.011-0.276mm/rev
0.011-0.276mm/rev
Inch threads can be cut
4-60 T.P.I
4-60 T.P.I
Metric threads can be cut
0.4-7mm
0.4-7mm
Max.travel of top slide
75mm
75mm
Max.travel of cross slide
130mm
130mm
Max.travel of tailstock quill
100mm
100mm
Taper of tailstock quill
MT3
MT3
Motor power
1.5kw
1.5kw
Machine size
160x73x127cm
Weight
460kg
