iKC6
    Publish time 2022-03-21 22:01

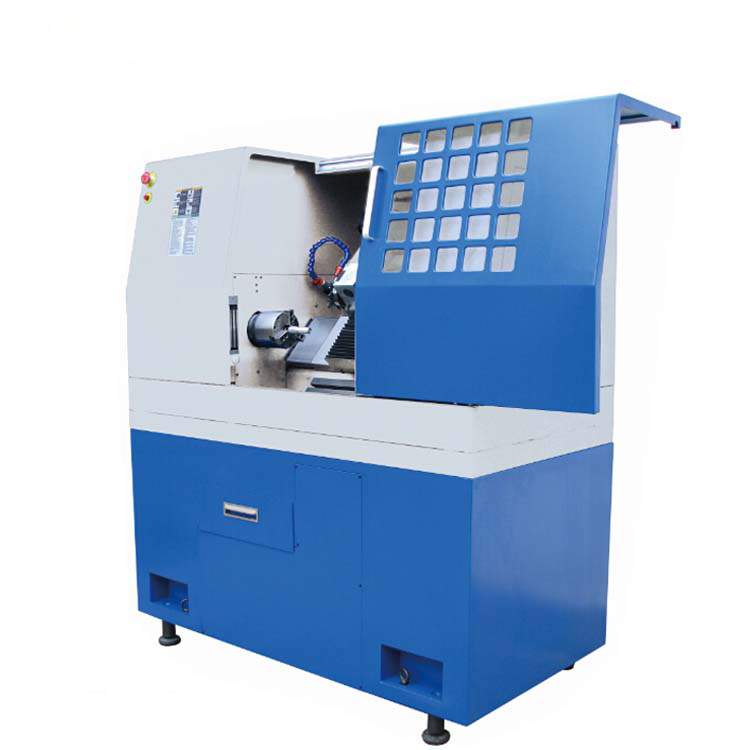

iKC6
WORKING AREA
Turning diameter over bed(max)
300mm
travel across slide
100mm
Center width
400mm




SPINDLE
Chuck diameter
125mm
Spindle speed
100-3000r/min
Spindle through-hole
20mm
Spindle mount
MT3
Spindle motor power
1500W



FEED
X travel
120mm
Z travel
320mm
The max moving speed
3000mm/min
Motor
400W


TOOL REST
Tool position
8
Tool dimension 4 external
12×12mm
4 internal
φ12mm


TAILSTOCK
Tailstock taper
MT2
Tailstock sleeve diameter
30mm
Travel of tailstock
50mm

ACCURACY
Positioning accuracy
0.01mm
Repeatability accuracy
0.005mm


OTHERS
Power
230V/120V
Weight（NW/GW）
620/700kg
Overall dimension
1400×770×1600mm
Packing size
1650×1090×1920mm
