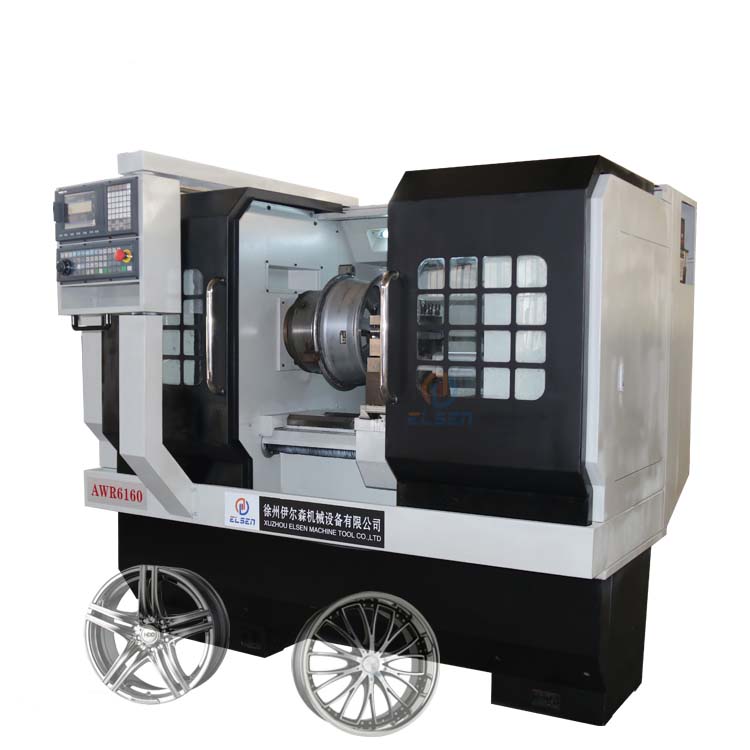

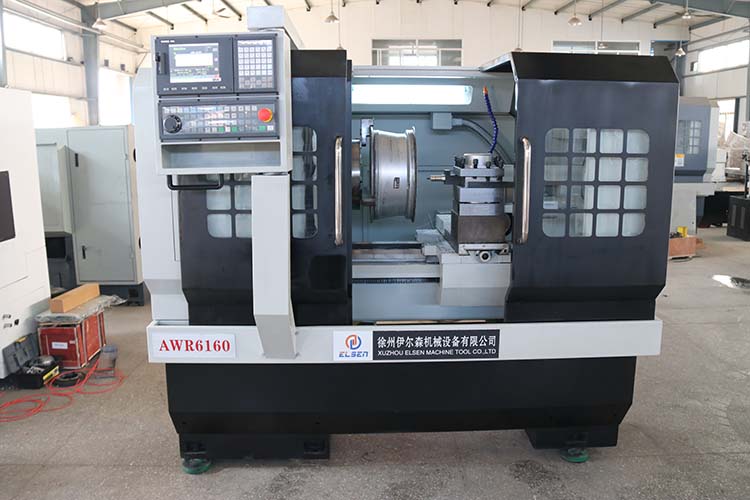

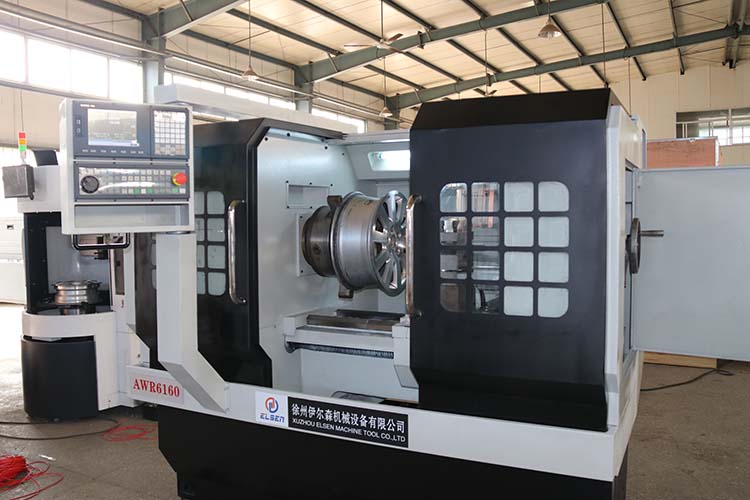

AWR6160
    Publish time 2022-03-21 21:35
AWR6160
◆Self-developed curve optimization software. Multilingual language interface. Installation and operation is simple.
◆Achieve the wheel surface profile measurement and data collection and Program Optimization,

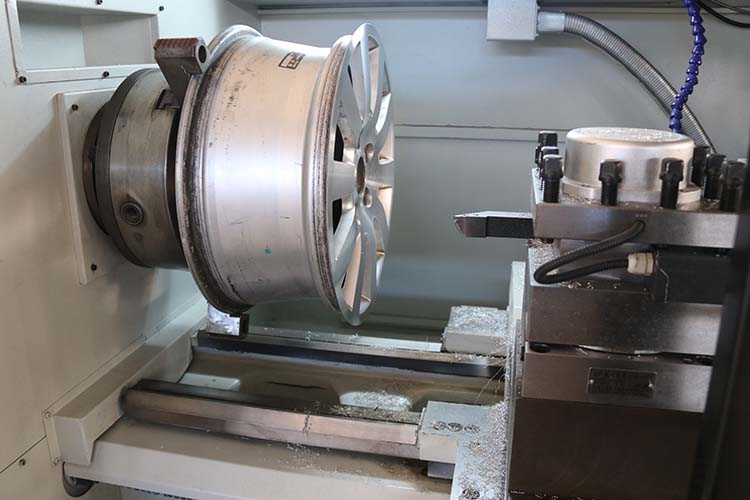

◆Automatic precision repair and machining in accordance with the curve of the wheel surface
◆Spindle frequency stepless speed;
◆X / Z axis servo drive;
◆Manual jaw self-centering chuck or special power chuck (optional);
◆Automatic oil lubrication.
ITEM
UNIT
AWR6160
Technical paramaters
Max. swing over bed
mm
600
Max. Size of alloy wheel
"
22
Max.Machining workpiece length
mm
750
Probe measuring direction

X direction, Z direction
Probe needle

φ3 × 40, φ6 × 50, or optional
Main transmission form

Independent spindle;frequency conversion stepless
Range of spindle speed
rpm
150~2800
Main motor power
kw
5.5
Fast-moving feed
mm/min
X - axis:5000 Z - axis:8000
Repeat positioning accuracy
mm
X - axis:0.01 Z - axis:0.015
Turret form

4 station electric turret
Repeat positioning accuracy
mm
0.008
Section of turning tool
mm
25×25
The size of the machine(L×W×H)
mm
2100×1440×1820
Net weight of the machine
kg
2000
Standard Configuration:

1- 3-Jaws Chuck（With Special Soft Jaws)
2- Four-station electric turret,
3- Automatic lubrication system,
4- Turning the cooling system.
5- With probing system (TP300 Pioneer Sensing Probe TP300);
6- Diamond Cutter 1 set
7- CNC controller syntec
8- Full Enclose (Security Guard Door)
9- Specific Digital Optimization Software
10- Training Video CD
11- Work Lighting System
