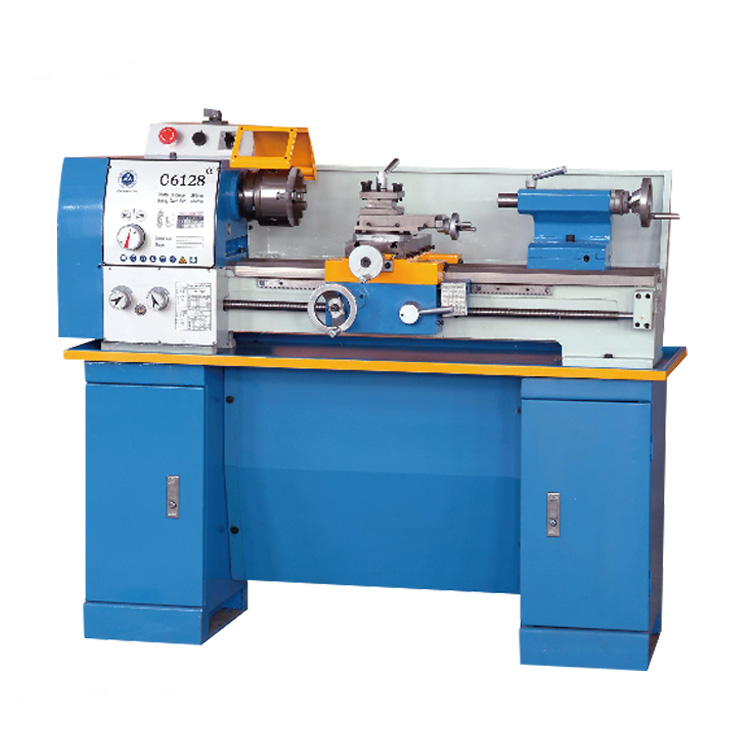

CQ6128/CQ6128V
    Publish time 2022-03-24 16:06
CQ6128/CQ6128V
Feature:
Precision ground and supersonic frequency hardened bed ways.
It features with high accuracy and well well-resisting.
The spindle is supported with precision roller bearing.
Safety magnetic switch or lock key switch.
”V" is variable speed type.
The width of bed ways is up to 180mm, providing superbrigidity.
Specification
CQ6128x610
CQ6128Vx610
Swing over bed
280mm
280mm
Swing over cross slide
150mm
150mm
Distance between centers
610mm
610mm
Width of bed
180mm
180mm
Taper of spindle bore
MT4
MT4
Spindle bore
26mm
26mm
Range of spindle speeds
125-2000rpm
50-2500rpm (Variable Speed)
Range of longitudinal feeds
0.1-0.25mm/rev
0.1-0.25mm/rev
Inch threads can be cut
8-35 T.P.I
8-35 T.P.I
Metric threads can be cut
0.1-3.5mm
0.1-3.5mm
Max.travel of top slide
110mm
110mm
Max.travel of cross slide
570mm
570mm
Max.travel of tailstock quill
70mm
70mm
Taper of tailstock quill
MT3
MT3
Motor power
750w
1000w
Packing size
1320x650x610mm
N.W/G.W
218/258kg
Foot stands (LxWxH)
280x390x600mm
Foot stands (N.W/G.W)
52kg/56kg
