iKC4-SIEMENS808D
    Publish time 2022-03-21 22:02
iKC4-SIEMENS808D

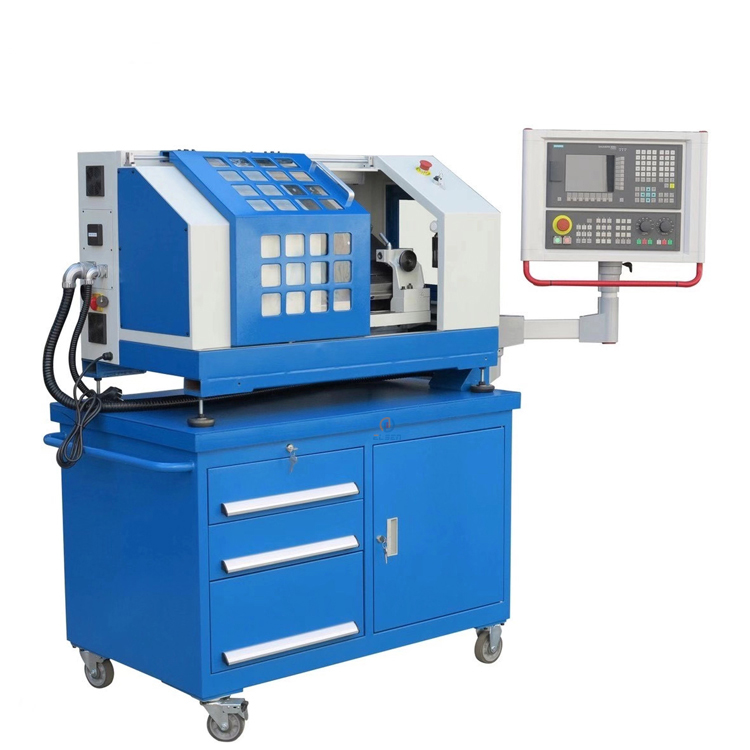

A SIEG bench CNC machine equipped with SIEMENS 808D.
Fixed on a side stand with wheels.
Comes with some tools.
Just open the box, plug-in, running machine!
WORKING AREA
Turning diameter over bed(max)
200mm
travel across slide
90mm
Center width
280mm




SPINDLE
Chuck diameter
100mm
Spindle speed
100-3000r/min
Spindle through-hole
20mm
Spindle mount
MT3
Spindle motor power
1000W



FEED
X travel
200mm
Z travel
200mm
The max moving speed
3000mm/min
The max feeding speed
1000mm/min
Motor
2.2Nm


TOOL REST
Tool position
8
Tool dimension 4 external
8×8mm
4 internal
φ10mm


TAILSTOCK
Tailstock taper
MT2
Tailstock sleeve diameter
12mm
Travel of tailstock
38mm

ACCURACY
Positioning accuracy
0.015mm
Repeatability accuracy
0.01mm


OTHERS
Power
230V/120V
Weight（NW/GW）
210/250kg
Overall dimension
1070×690×760mm
Packing size
1260×890×1020mm
