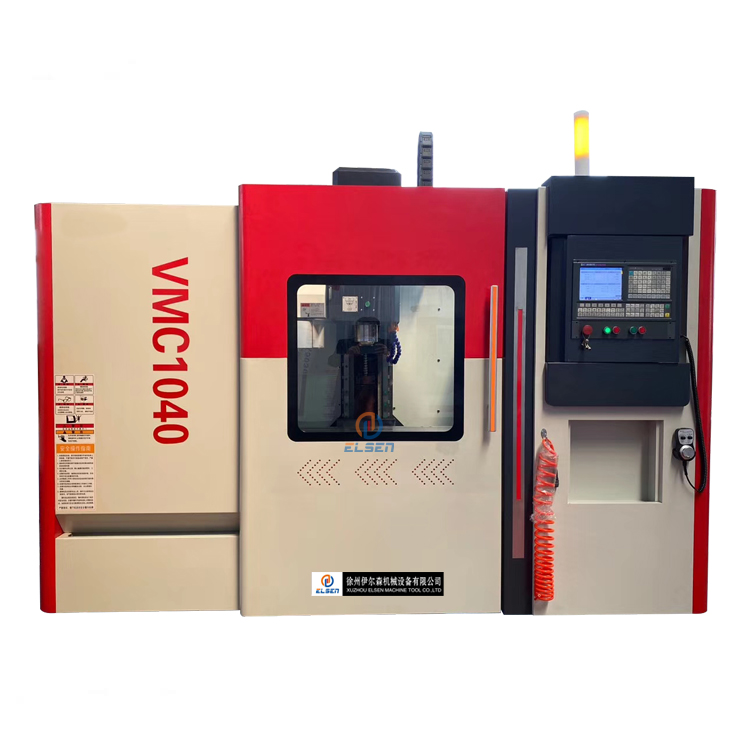

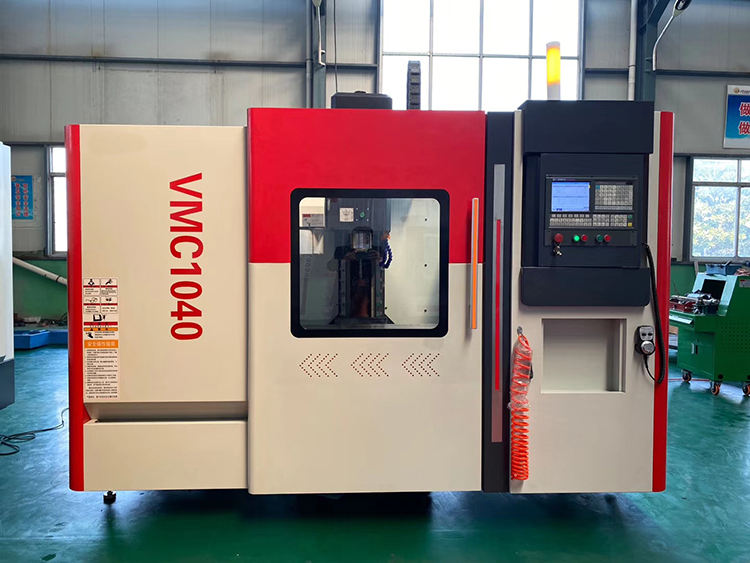

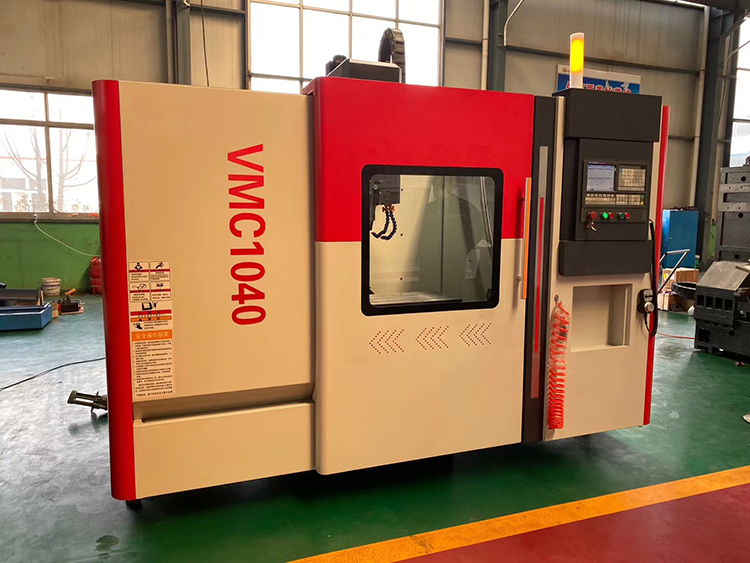

VMC1040
    Publish time 2022-03-22 13:59
VMC1040
FEATURES:
CNC system controller
High quality machine base
Taiwan famous brad spindle
Taiwan famous brand ball screw
High pressure cylinder
Hard railway
Japanese bearing
Automatic lubrication system
The fourth axis and Chip conveyor at optional
Specifications
Units
VMC1040
Table size
mm
1000x400
X axis travel
mm
1000
Y axis travel
mm
400
Z axis travel
mm
500
Max. worktable load
kg
600
Max. spindle speed
rpm
8000(Optional:10000 )
Spindle taper
mm
BT40
Main motor power
kw
5.5
X/Y/Z rapid traverse speed
m/min
32/32/24
Cutting feed speed
mm/min
1-5000
Guide rail type

Linear rail
Positioning accuracy
mm
±0.005
Repeat positioning accuracy
mm
±0.003
Tool magazine

Drum type 16
Machine weight
kg
4200
Overall dimension
mm
2320x2210x1900
