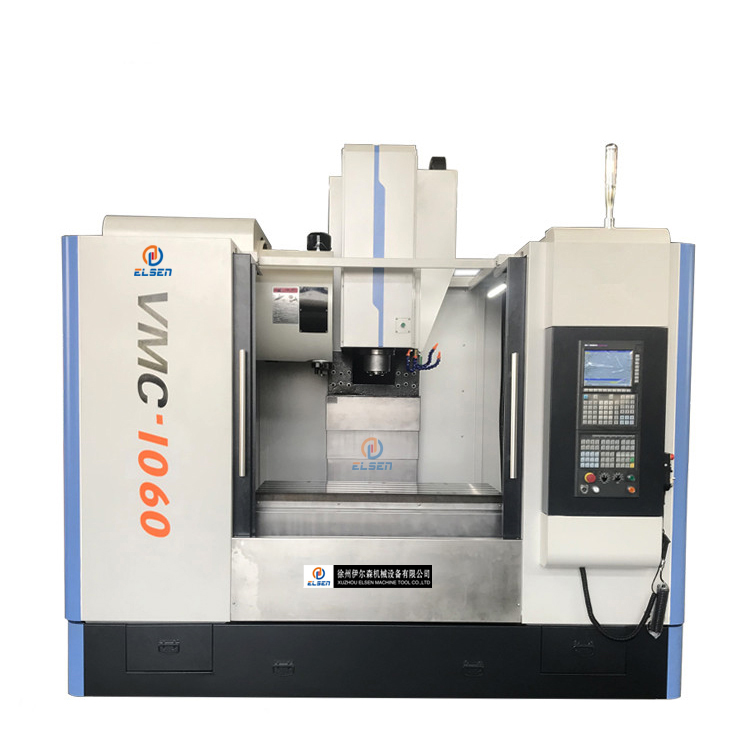

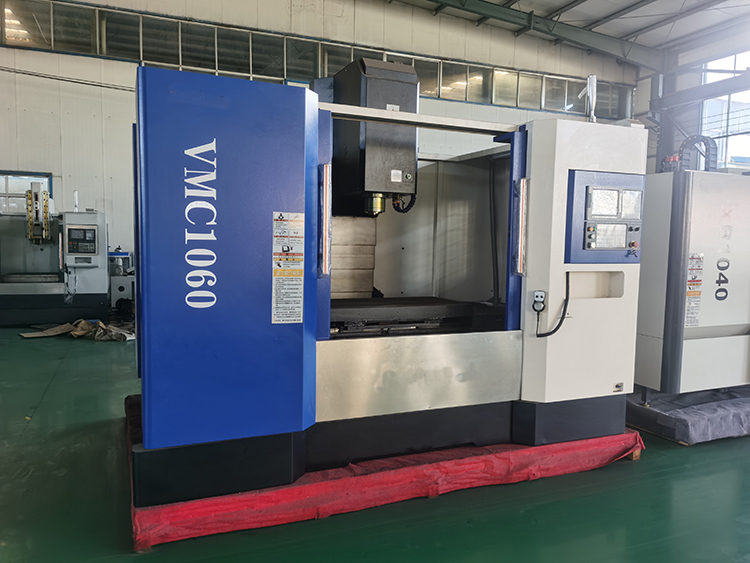

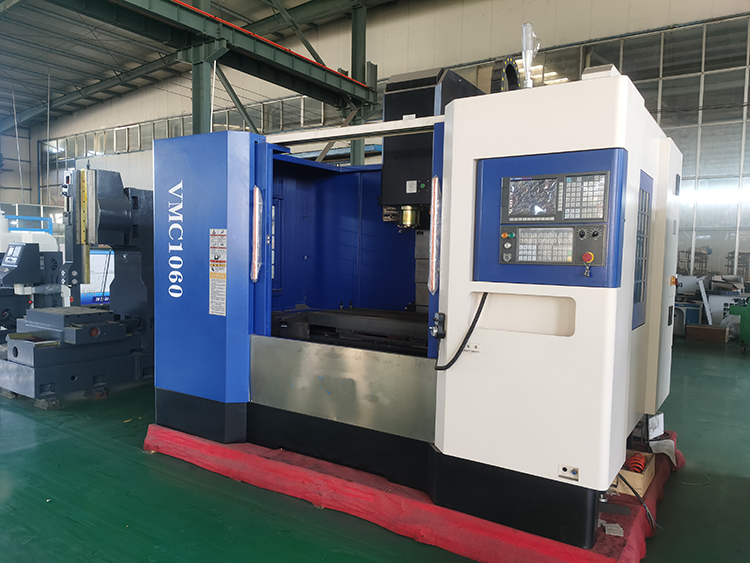

VMC1060
    Publish time 2020-04-22 16:05
VMC1060

FEATURES:


CNC system controller
High quality machine base
Taiwan famous brad spindle
Taiwan famous brand ball screw
High pressure cylinder
Hard railway
Japanese bearing
Automatic lubrication system
The fourth axis and Chip conveyor at optional
Specifications
Units
VMC1060
Table size
mm
1200x600
X axis travel
mm
1000
Y axis travel
mm
600
Z axis travel
mm
600
Max. worktable load
kg
800
T slot(number-width-pitch)

5-18x120
Max. spindle speed
rpm
8000(Optional:10000 )
Spindle taper
mm
BT40
Main motor power
kw
11/15
X/Y/Z rapid traverse speed
m/min
36/36/24
Cutting feed speed
mm/min
1-8000
Guide rail type

Linear rail
Distance from spindle axis to column surface
mm
650
Distance between spindle nose and worktable surface
mm
130-680
Positioning accuracy
mm
±0.01
Repeat positioning accuracy
mm
±0.005
Tool magazine

Drum type 16
Max. tool diameter
mm
φ78 (Adjacent)/ φ120(Apart)
Max.tool weight
kg
8
Machine weight
kg
6900
Overall dimension
mm
3200x2400x2800

Optional Configuration

1) FANUC 0i-MF/SIEMENS 808D/GSK system

2)4th or 5th axis

3)Screw type chip conveyor

4)Chip cart

5)Metrol tool setters

6)Transformer to suit local power supply
