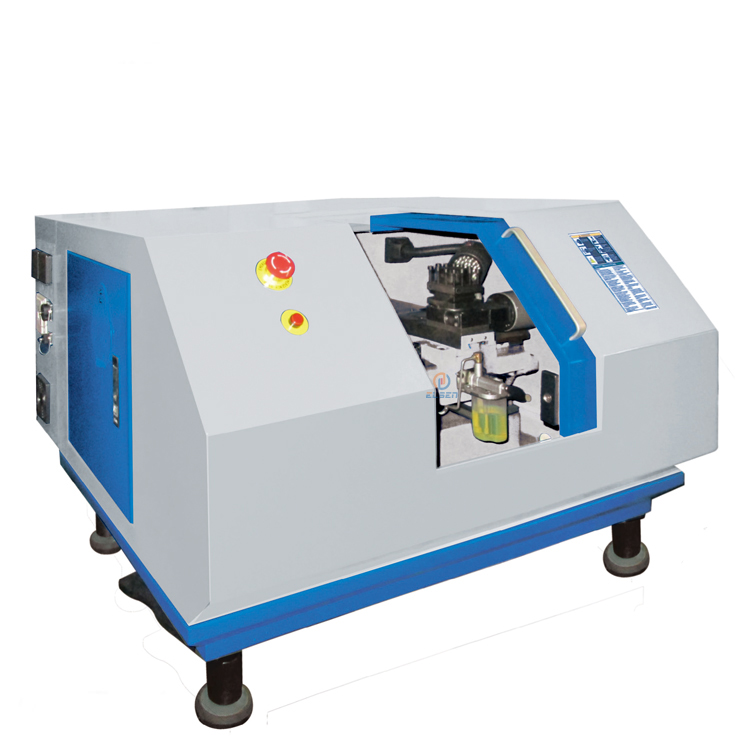

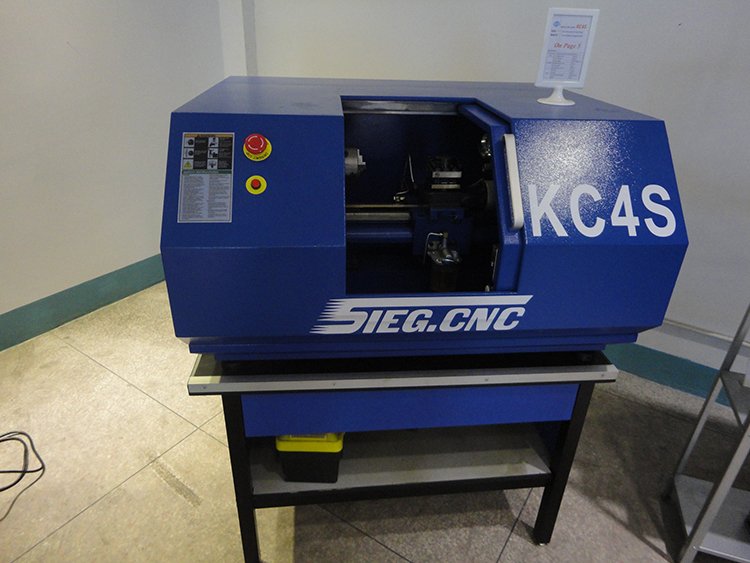

KC4S
    Publish time 2022-03-21 22:07
KC4S
WORKING AREA
Turning diameter over bed(max)
200mm
travel across slide
100mm
Center width
380mm




SPINDLE
Chuck diameter
100mm
Spindle speed
100-3000r/min
Spindle through-hole
20mm
Spindle mount
MT3
Spindle motor power
500W



FEED
X travel
75mm
Z travel
280mm
The max moving speed
2000mm/min
Power of Motor
1.35Nm/3.1Nm


TOOL REST
Tool position
4
Tool dimension
8×8mm


TAILSTOCK
Tailstock taper
MT2
Tailstock sleeve diameter
22mm
Travel of tailstock
50mm

ACCURACY
Positioning accuracy
0.015mm
Repeatability accuracy
0.01mm


OTHERS
Power
230V/120V
Weight（NW/GW）
210/250kg
Overall dimension
1000×780×565mm
Packing size
1200×940×770mm
