KC6S
    Publish time 2022-03-21 22:06

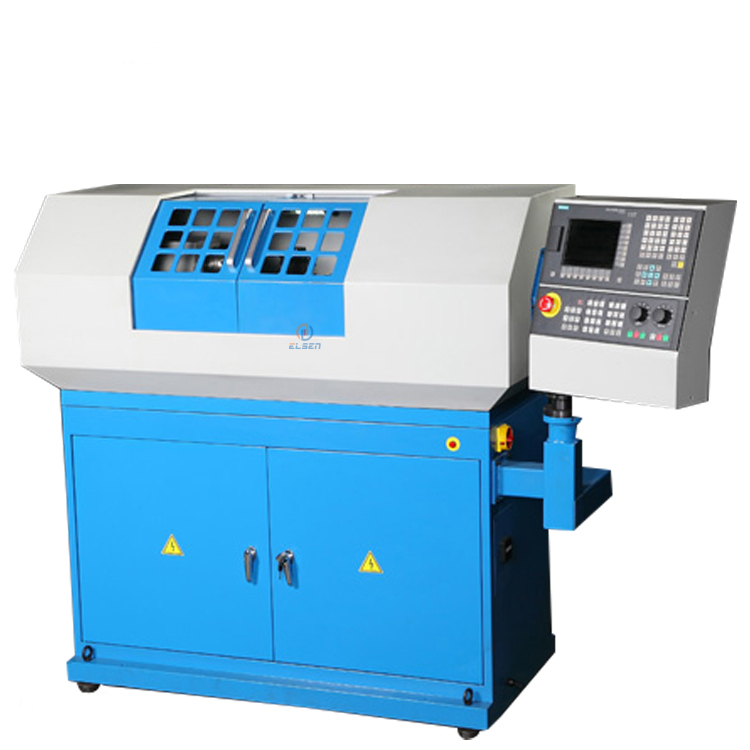

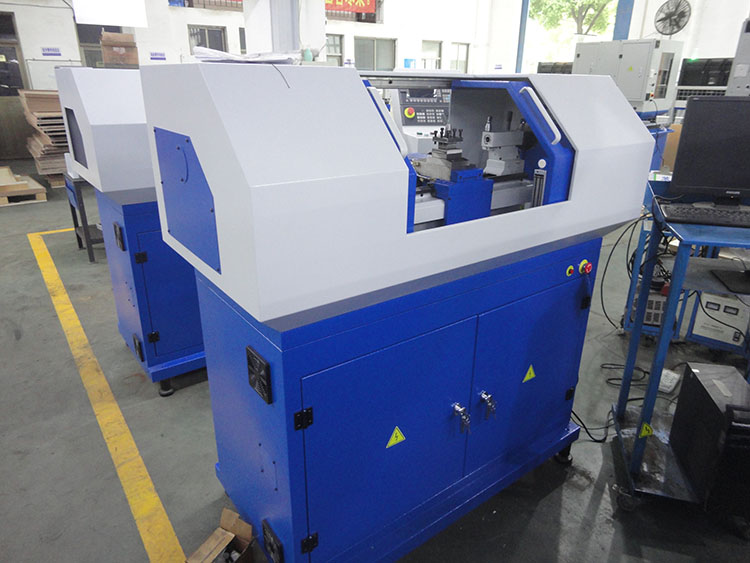

KC6S
KC6S -MACH as the model of economical cnc lathe, provide extremely high product yield with very low cost of investment. 3000 RPM of the spindle speed, high efficiency brushless spindle motor and cast iron structure, ensure the maximum rigidity, highest precision of milling. Advanced numerical control software can work out high quality parts in the shortest possible time. It can not only machining cylindrical surface, but also can boring, slotting, cutting, etc. Controlled by the ordinary computer , easy operation, moderate price. The CNC system is optional with SIEG , MACH or SIEMENS 808d senior controller, is the most cost-effective small CNC lathe in the current market.


WORKING AREA
Turning diameter over bed(max)
250mm
travel across slide
110mm
Center width
450mm




SPINDLE
Chuck diameter
125mm
Spindle speed
100-3000r/min
Spindle through-hole
20mm
Spindle mount
MT3
Spindle motor power
1000W




FEED(STEPPER)
X travel
180mm
Z travel
320mm
The max moving speed
2000mm/min
The max feeding speed
500mm/min
Motor
4Nm


FEED(SERVO)
The max moving speed
5000mm/min
The max feeding speed
1000mm/min
Motor
400W

TOOL REST
Tool position
4
Tool dimension
10×10mm


TAILSTOCK
Tailstock taper
MT2
Tailstock sleeve diameter
17mm
Travel of tailstock
50mm

ACCURACY
Positioning accuracy
0.015mm
Repeatability accuracy
0.01mm



OTHERS
Power
230/120V
Weight（NW/GW）
360/410kg
Overall dimension
1460×760×1450mm
Packing size
1630×1070×1685mm
