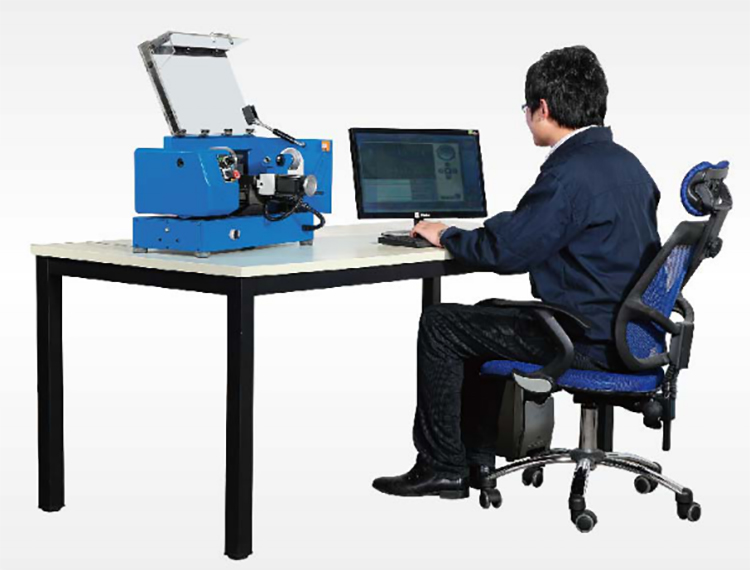

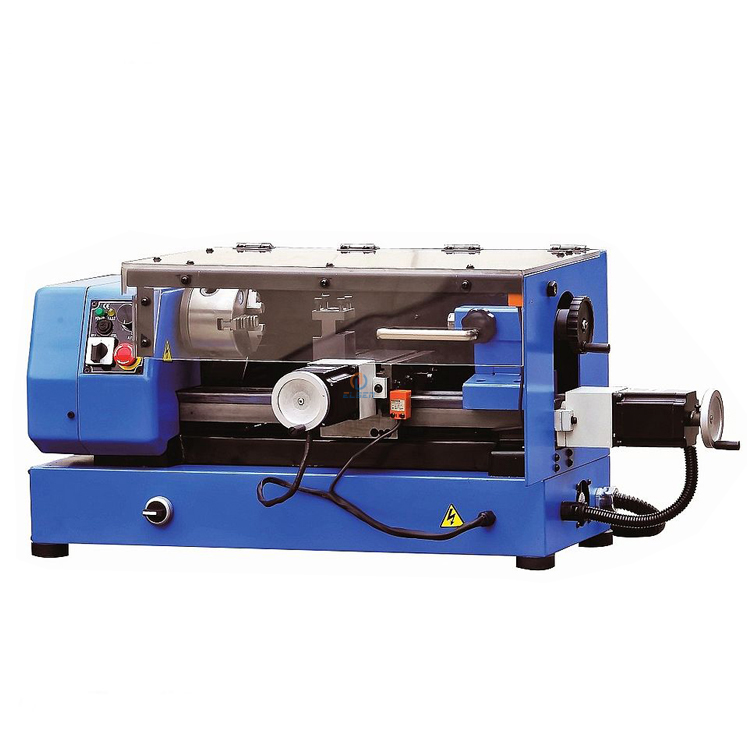

PC1
    Publish time 2022-03-21 22:09
PC1
WORKING AREA
Turning diameter over bed(max)
140mm
travel across slide
75mm
Center width
250mm




SPINDLE
Chuck diameter
80mm
Spindle speed
100-2000r/min
Spindle through-hole
11mm
Spindle mount
MT2
Spindle motor power
150W



FEED
X travel
100mm
Z travel
150mm
The max moving speed
300mm/min
The max feeding speed
200mm/min
Motor
1.35Nm
TOOL REST
Tool position
1
Tool dimension
8×8mm


TAILSTOCK
Tailstock taper
MT2
Tailstock sleeve diameter
12mm
Travel of tailstock
20mm

ACCURACY
Positioning accuracy
0.02mm
Repeatability accuracy
0.02mm


OTHERS
Power
230V/120V
Weight（NW/GW）
45/65KG
Overall dimension
730×380×350mm
Packing size
830×480×450mm
