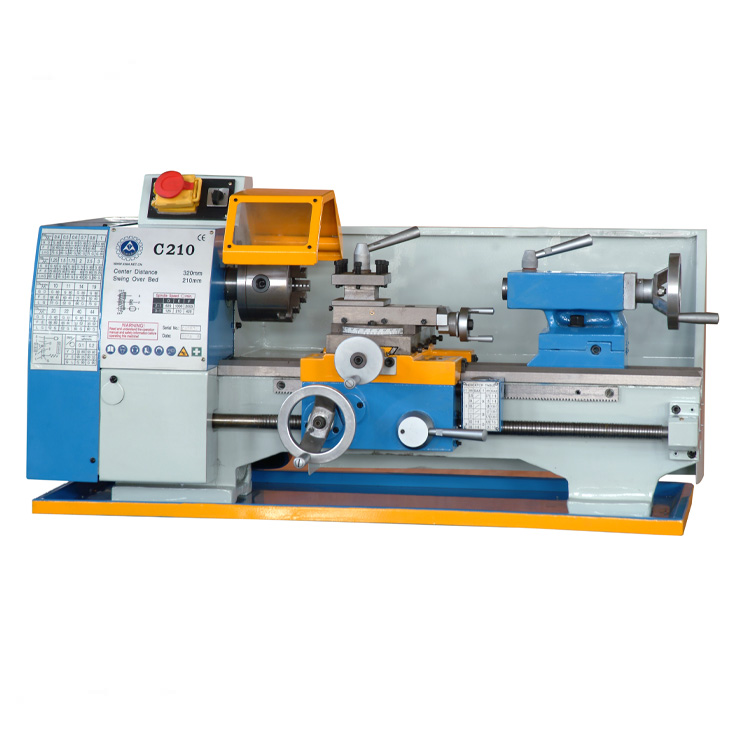

C210/C210V
    Publish time 2022-03-24 16:00
C210/C210V
Feature:
Precision ground and supersonic frequency hardened bed ways.
It features with high accuracy and well wear-resisting.
The spindle is supported with precision roller bearing.
Safety magnetic switch or lock key switch.
”V" is variable speed type.
Specification
C210                                     C210V

Swing over bed
210mm
Swing over cross slide
110mm
Distance between centers
320mm
Width of bed
135mm
Spindle bore
20mm
Taper of spindle bore
MT3
Range of spindle speed
                 125-2000rpm             50-2500rpm(variable speed)

Max. travel of tops slide
110mm
Max. travel of cross slide
315mm
Taper of tailstock quill
MT2
Tailstock sleeve travel
65mm
Longitudinal feeds range
0.1-0.2mm/rev
Motor power
            550W                                D.C motor 750W
Packing size
 935x555x545mm
N.W / G.W
 105kg/143kg

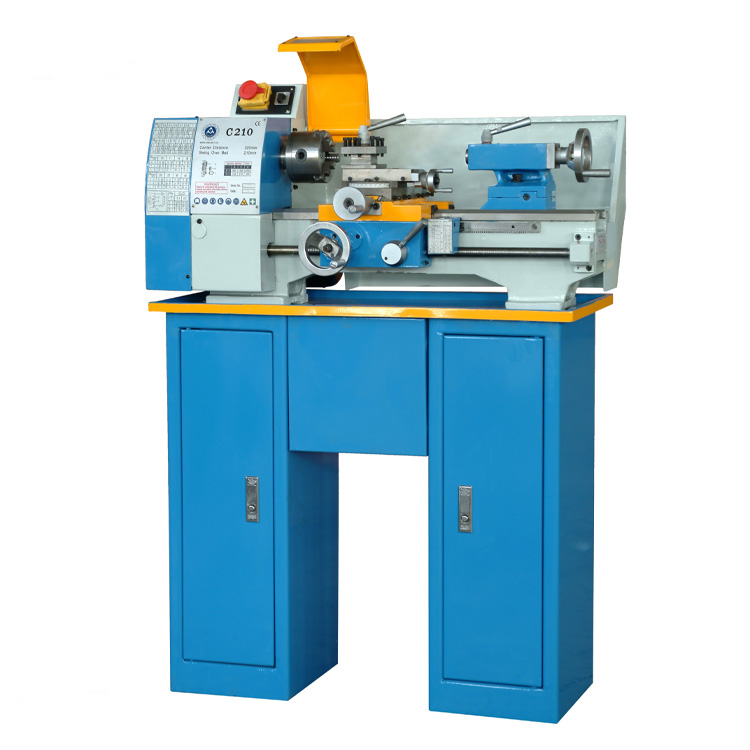

Foot stands size
500x300x750mm
Foots stands weight
44kg/48kg
