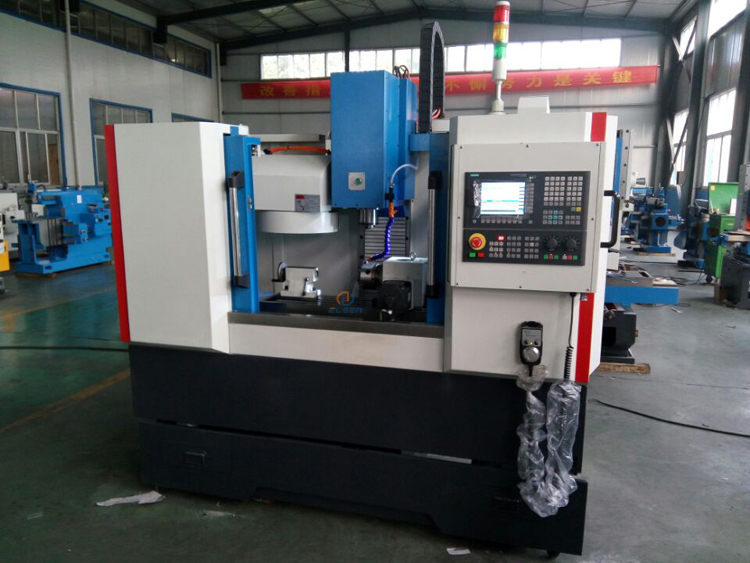

XK7125

Publish time 2020-04-22 16:05

Product information

Features:

With a CNC milling body, this machine boasts strong carrying capacity, it also has three quench hardening guideways, wide guide rail & broad span as well as compact & reasonable structure and overall dimension; spindle are driven by frequency conversion motor via timing belt. The machine has milling, drilling, boring, reaming and etc. multiple functions, which could realize complex & high-precision components’ machining upon plates, boards, shells, molds and etc., it is mainly applied to machine high-precision components, it could process plane & slope, groove, holes and etc. of small and medium-sized components. In overall, this milling machine is an ideal machining equipments for machine, electronics, instruments, meters, molds, molds and etc. industries.

Specifications	Unit	XK7125
Table size	mm	900×250
X-axis travel	mm	450
Y-axis travel	mm	260
Z-axis travel	mm	380
Distance from spindle axis to column surface	mm	330
Distance between spindle nose and worktable	mm	50-430
The vertical tolerance of distance between spindle nose and worktable	mm	≦0.02
X/Y/Z rapid traverse	M/min	6/5/4
Max.spindle speed	rpm	6000
Spindle taper		BT30
Main motor power	kw	2.2
X axis motor torque	N.m	7.7
Y axis motor torque	N.m	6
Z axis motor torque	N.m	6
Positioning accuracy	mm	0.02
Repeat positioning accuracy	mm	0.01
Machine dimension	mm	2200×1650×2200
Machine weight	kg	1800
