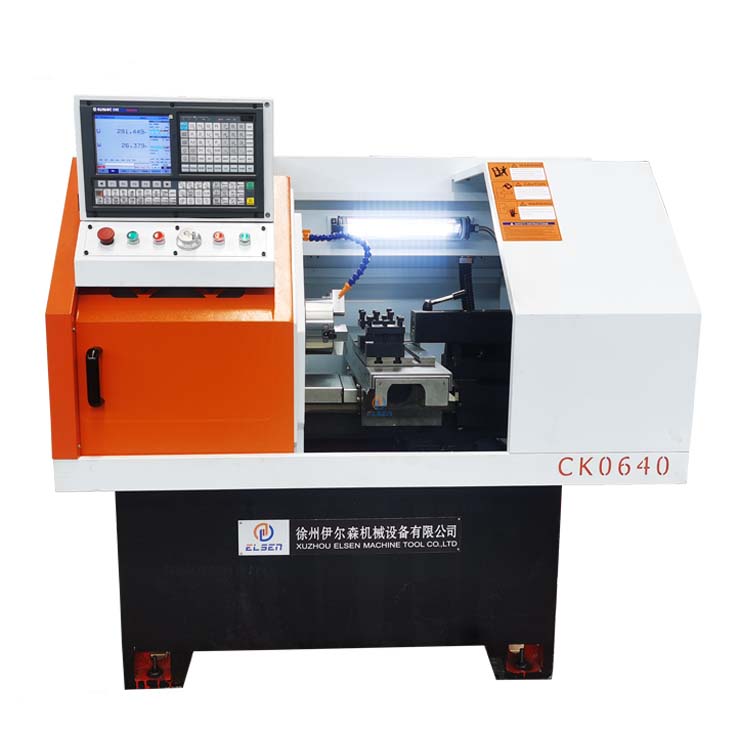

CK0640
    Publish time 2020-02-21 15:41
CK0640
ITEM
UNIT
CK0640
SPECIFICATION
Max. swing over bed
mm
Φ260
Max. swing over carriage
mm
Φ130
Max.length of workpiece
mm
Collet  200mm
Chuck 120mm
Spindle speed range
rpm
50-2500
Spindle bore
mm
Φ48
Drawn pipe diameter
mm
Φ42
Chuck diameter
mm
Φ160
Main spindle motor
kw
3.0
Turret max stroke
mm
X: 260         Z: 240
X/Z axis fast feeding speed
mm/min
X: 6000       Z: 8000
X/Z axis feed rates
mm/min
X: 1-2000        Z: 1-1800
X/Z axis repeat accuracy
mm
0.012/0.013
Tool post type

gang-type tool carrier
Machine dimensin (L*W*H)
mm
1600*1100*1550
N.W
kg
950
Standard configuration:
1) System:GSK928TD-L.
2) Gang type tool.
3) Penumatic collet.
4) Without tailstock.
5) Cooling system.
6) Lighting system.
7) Automatic lubrication system.

Optional configuration:
1). CNC system: GSK, Siemens, Fanuc, KND, etc.
2). 3-jaw manual chuck,Hydraulic chuck, pneumatic chuck .
3). Manual tailstock,Hydraulic tailstock, pneumatic tailstock.
4). 4-station electric tool post,6-station electric tool post, 8- station electric tool post
5). Automatic bar feeder.
