LM1450
    Publish time 2020-05-03 23:59

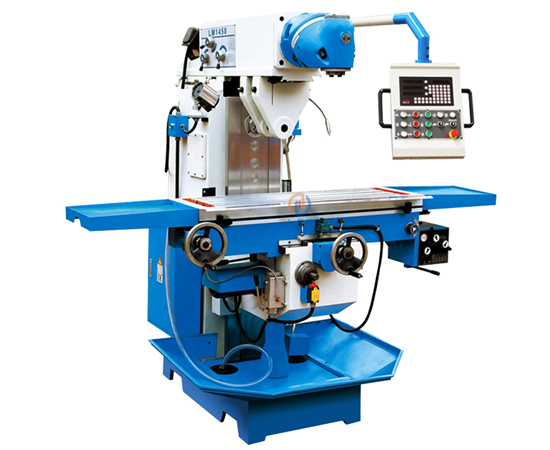

LM1450

Application:

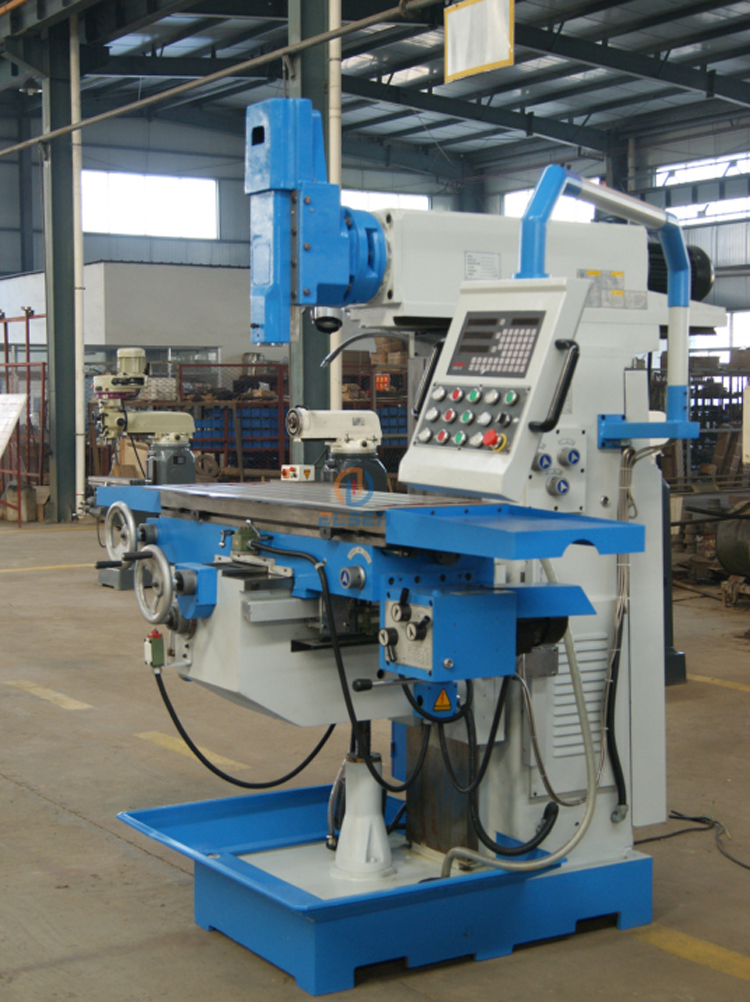

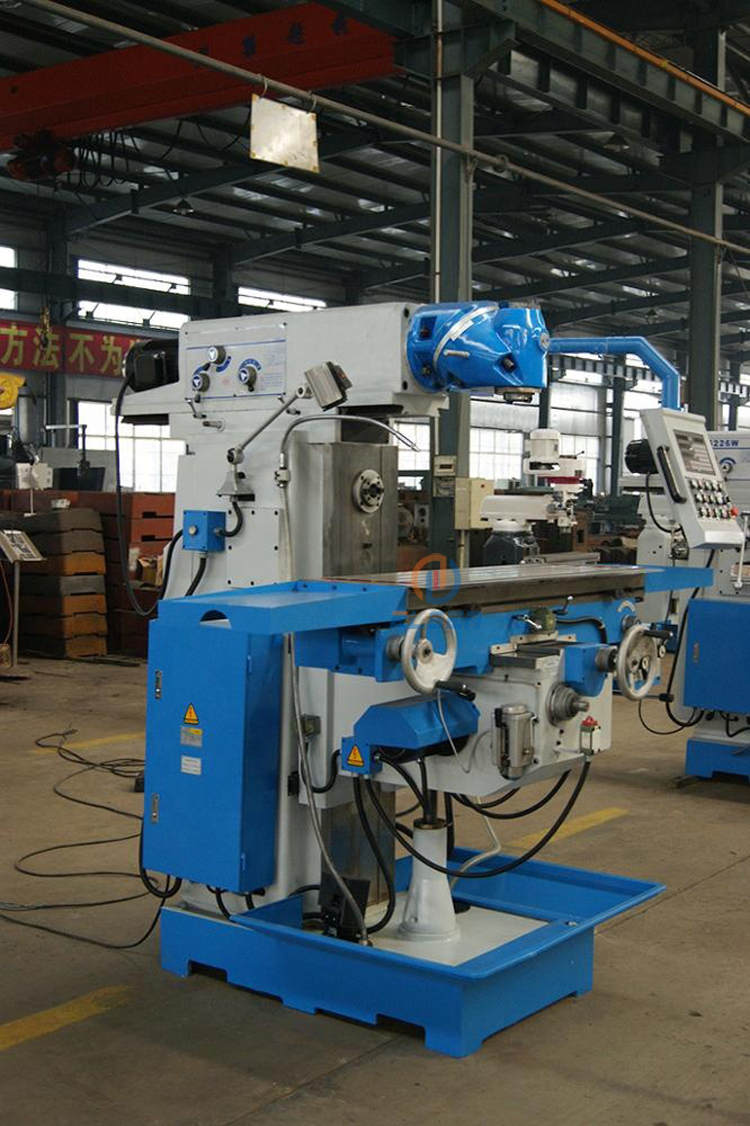

LM1450 china conventional universal milling machine can be used both for vertical milling and horizontal milling, with corresponding attachments, it can also mill various rotary surfaces and grooves, etc. Two-section revolving cutter head enables the spindle to revolve and adjust at any angle, and mill complicated parts with multi-angle and multi-face by one time of holding. It is the ideal machining equipment for the industries of mechanic manufacture, moulds, automobiles and motorcycles.

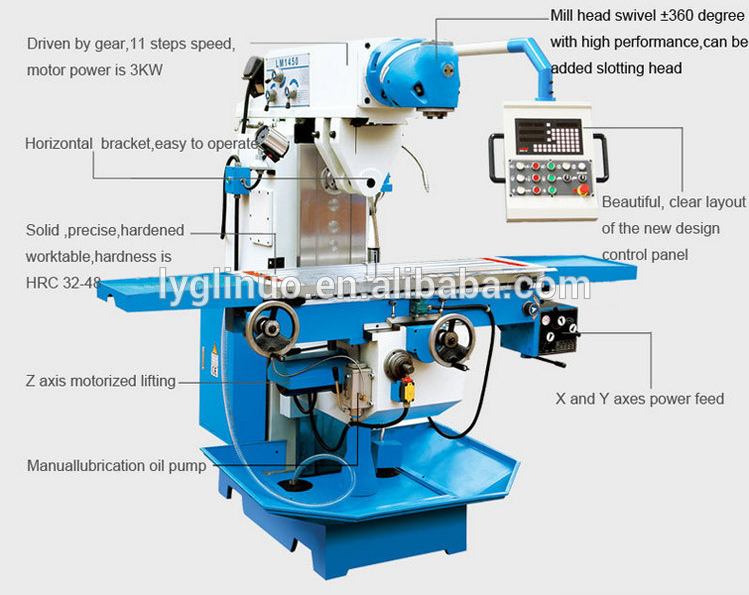

Features:

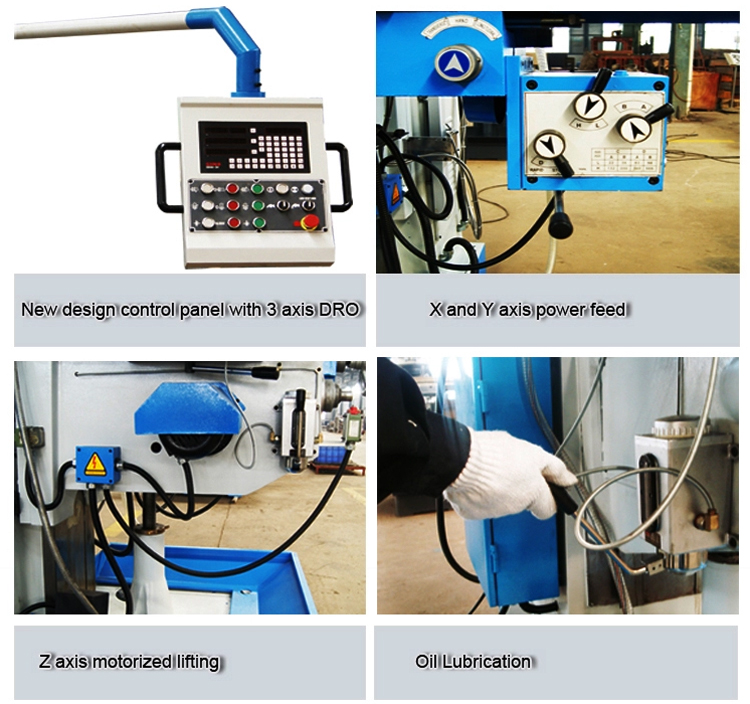

1,Hardened guideway
2,X.Y axis auto feeding, Z axis motorized lift

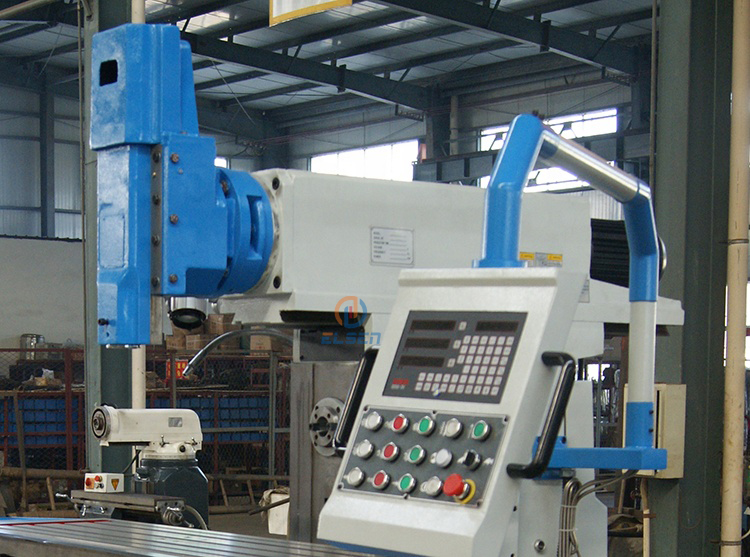

3,Mill head swivel ±360 degree with high performance


Table taper

ISO40(H)

Max end milling (mm)

125(V)100(H)

Swivel angel milling head(°)

±360°

Range fo spindle speed(r.p.m)

35-1600(V)

40-1300(V)

Distance from spindle to table(mm)

150-600

Distance form spindle to column (mm)

760

Table size(mm)

1250×360

(X,Y,Z)Table travel (X*Y*Z)(mm)

970×300×390

T-slot(number-width-distance)(mm)

3/18/80

Main motor power(kw)

Overall dimension(mm)

1550×1670×1950

Weight(kg)

2650/2850
