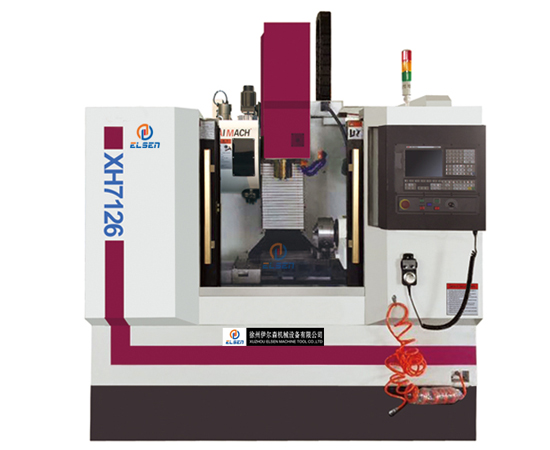

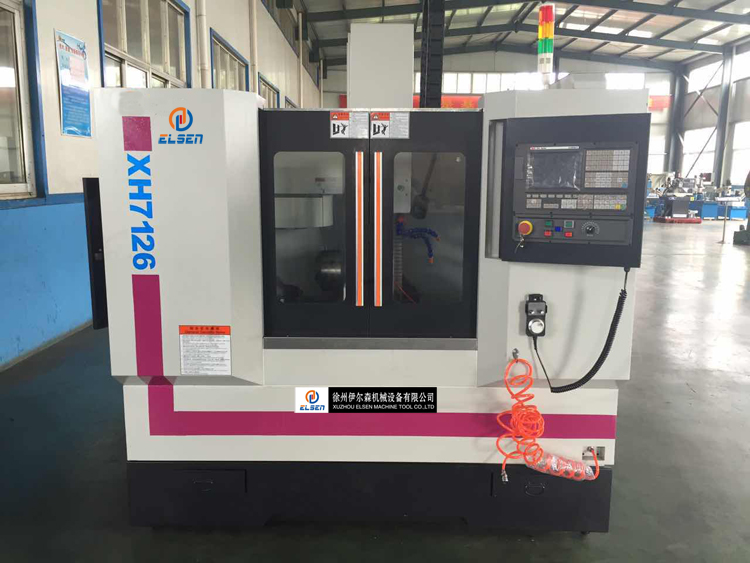

XK7126

Publish time 2020-04-22 16:05

Product information

Features:

With a CNC milling body, this machine boasts strong carrying capacity, it also has three quench hardening guideways, wide guide rail & broad span as well as compact & reasonable structure and overall dimension; spindle are driven by frequency conversion motor via timing belt. The machine has milling, drilling, boring, reaming and etc. multiple functions, which could realize complex & high-precision components’ machining upon plates, boards, shells, molds and etc., it is mainly applied to machine high-precision components, it could process plane & slope, groove, holes and etc. of small and medium-sized components. In overall, this milling machine is an ideal machining equipments for machine, electronics, instruments, meters, molds, molds and etc. industries.

Specifications	Unit	XK7126
X-axis travel	mm	450
Y-axis travel	mm	300
Z-axis travel	mm	400
Distance between spindle nose and worktable	mm	90-520
Distance from spindle axis to column surface	mm	360
Table size	mm	650x260
T slot(size-number-pitch)		14-3-80
Max. table load	kg	200
Max tool weight	kg	8kg
Max. tool size	mm	130x300
Spindle taper		BT40
Max.spindle speed	rpm	6000
Main motor power	kw	2.2
Cutting speed	Mm/min	1-6000
Fast speed(X/Y/Z)	M/min	15
Positioning accuracy	mm	±0.015
Repeat Positioning accuracy	mm	±0.0075
Dimension of machine( L x W x H)	mm	2200×1900×2200
Machine weight	kg	1800
