1. Flexible, multifunctions of milling, drilling and tapping ,slotting.
2. Easy to operate, convenient maintenance

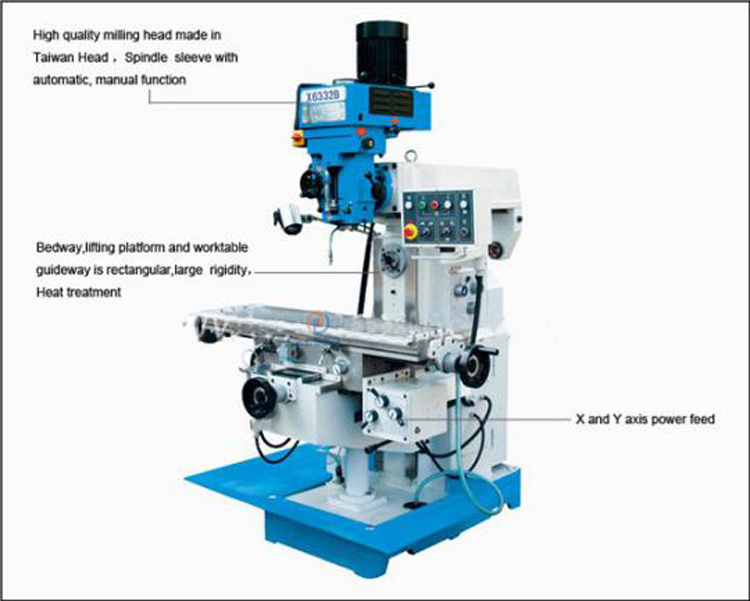

3. High speed milling head , high precision, swivel 90°, flexible processing.
4.Cast iron after artificial aging treatment,high precision,long service life
5.Belt drive, low-noise, Fast speed
6.Hardening treatment, rectangular guideway

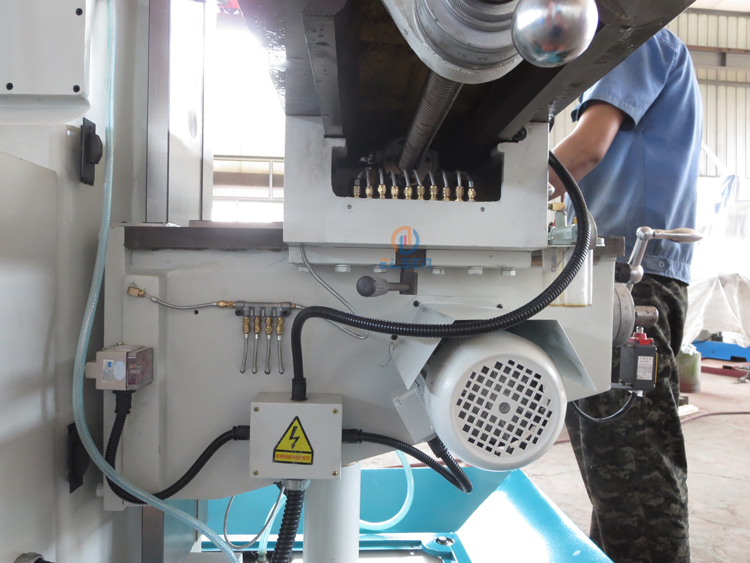

7.Equipped with manual lubricating device, the lubrication on the lead screw and guideway
|
Spindle taper
|
ISO 40
|
|
Spindle travel
|
150mm
|
|
Distance from spindle to column
|
200-500mm(V)
|
|
Distance from spindle to table
|
155-455mm(V)
0-300mm(H)
|
|
Range fo spindle speed
|
75-3500rpm(V)
12step 60-1350rpm(H)
|
|

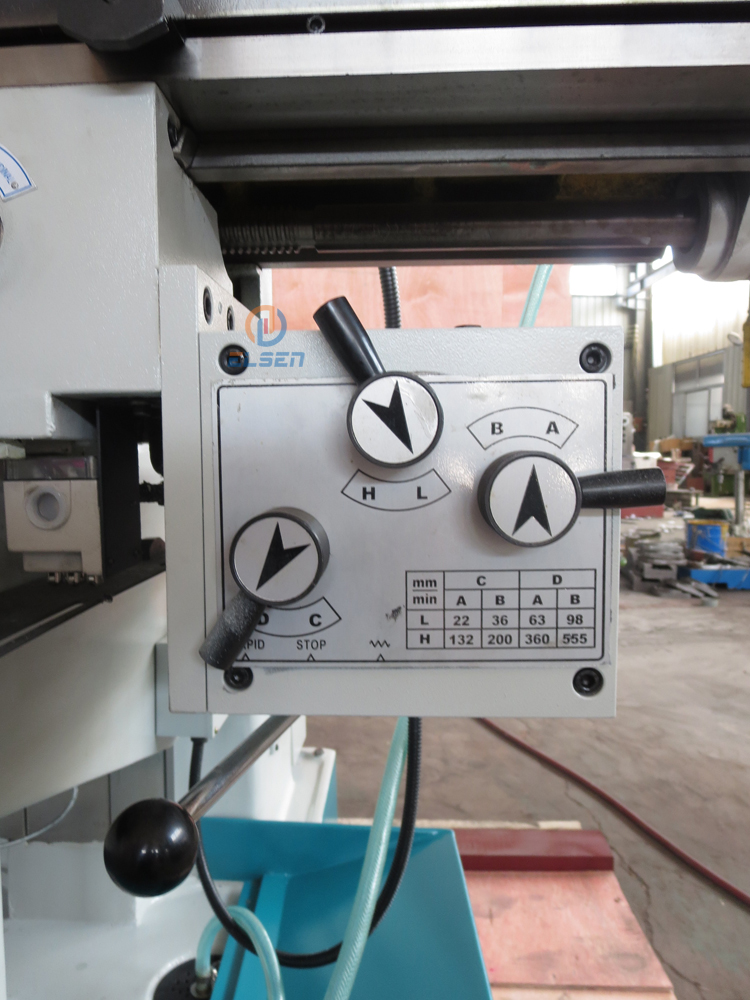

Table feeding speed
|
15-370mm/min
|
|
Size of table surface
|
1250×320mm
|
|
Table travel(X、Y、Z)
|
600×300×300mm
|
|
T-slot (number-width-distance)
|
3/4/70mm
|
|
Main motor power
|
3.7/2KW(V)
|
|
Packing size
|
1700*1520*2260mm
|
|
N.W/G.W
|
1750/1950KG
|
