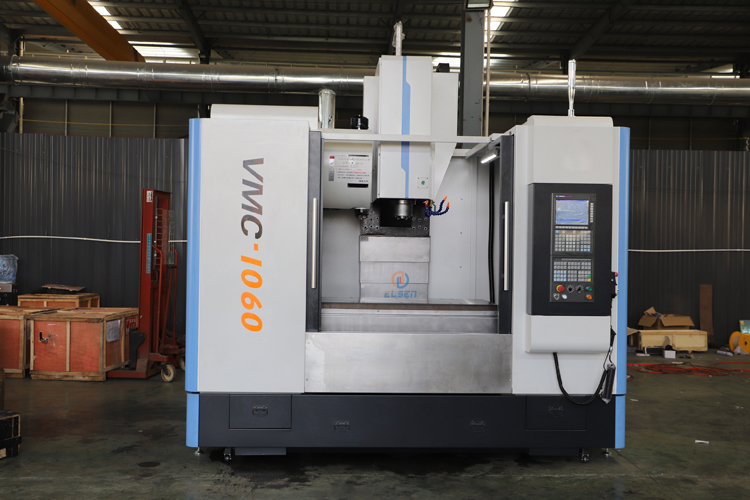

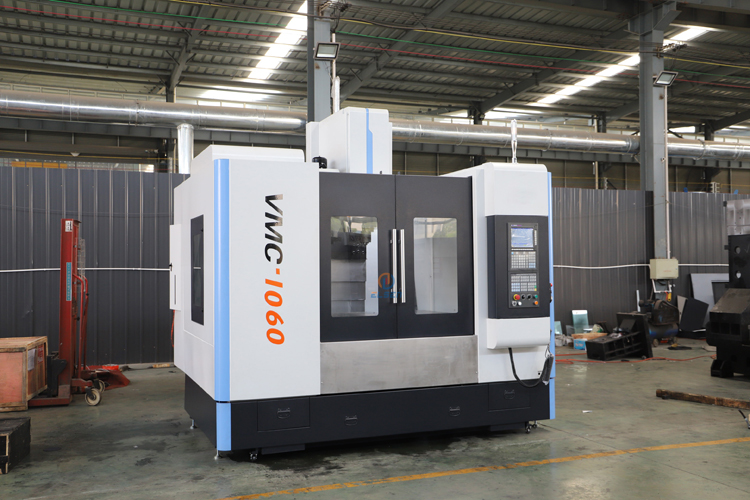

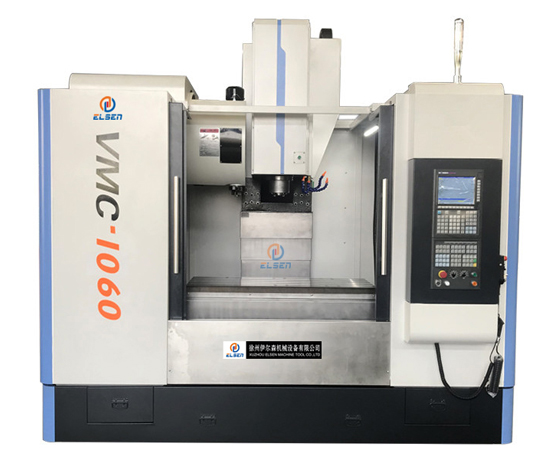

Xuzhou Elsen Machine Tool Co., Ltd
Features:
The feed axis machining center for X, Y, Z coordinate control, spindle servo motor powered,. can achieve a
variety of disc-type, plate type, shell, Cam, mold and other complex parts in a single setup, complete the drilling, milling and processing
a variety of processes, boring, expanding, reaming, tapping,etc. suitable for many varieties, small batch production of complex,
high-precision machining of parts to better show its superiority.
|
Specifications |
Units |
VM1060 |
|
Table size |
mm |
1200x600 |
|
X axis travel |
mm |
1000 |
|
Y axis travel |
mm |
600 |
|
Z axis travel |
mm |
600 |
|
Max. worktable load |
kg |
800 |
|
T slot(number-width-pitch) |
|
5-18x120 |
|
Max. spindle speed |
rpm |
8000(Optional:10000 ) |
|
Spindle taper |
mm |
BT40 |
|
Main motor power |
kw |
11/15 |
|
X/Y/Z rapid traverse speed |
m/min |
24/24/20 |
|
Cutting feed speed |
mm/min |
1-8000 |
|
Guide rail type |
|
Linear rail |
|
Distance from spindle axis to column surface |
mm |
650 |
|
Distance between spindle nose and worktable surface |
mm |
130-680 |
|
Positioning accuracy |
mm |
±0.0075 |
|
Repeat positioning accuracy |
mm |
±0.005 |
|
Max. tool diameter |
mm |
φ78 (Adjacent)/ φ120(Apart) |
|
Max.tool weight |
kg |
8 |
|
Machine weight |
kg |
6900 |
|
Overall dimension |
mm |
3200x2400x2800 |
Standard Configuration
1)KND2100M CNC system
2)Taiwan linear guide ways
3)Full enclosure machine guard
4)Taiwan BT40/120/8000 spindle
5)Japanese NSK bearing
6)Automatic central lubrication system with alarm
7)Taiwan ball screw and locking nut
8)Tool holder and pull stud
9)Working lamp
Optional Configuration
1) FANUC 0i-MF/SIEMENS 808D/GSK system
2)4th or 5th axis
3)Screw type chip conveyor
4)Chip cart
5)Metrol tool setters
6)Transformer to suit local power supply
