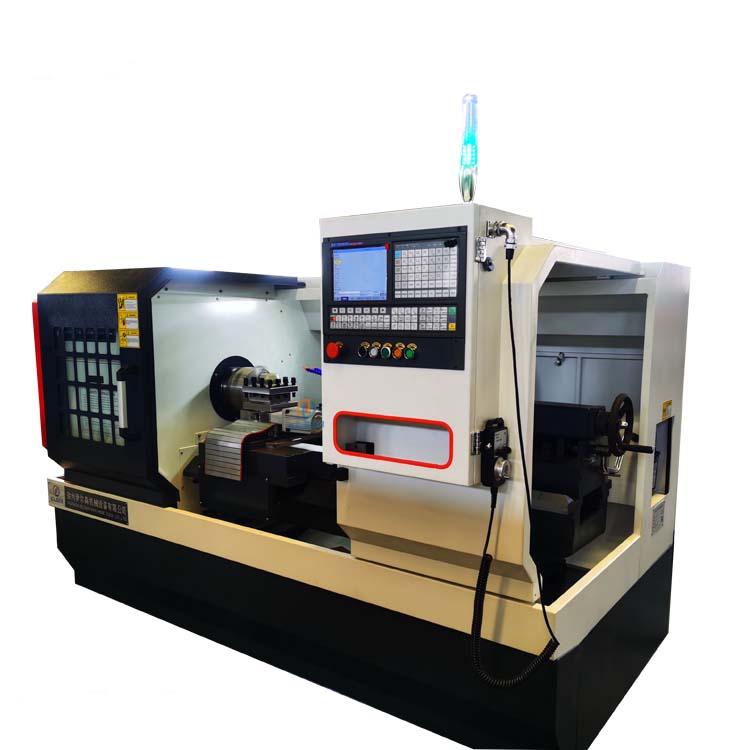

CK6150D
    Publish time 2022-03-21 19:49
CK6150D
  This machine could process different inner bore, ex-circle, circular conical surface and screw thread ,especially suitable for the small and middle-size shaft and plate work piece from rough processing to finish processing in batch.it has advantage like higher automaticity, simpler programming and higher accuracy.
Specification
Unit
CK6150D
Max.swing over bed
mm
500
Max.swing over cross slide
mm
280
Max.processing length
mm
1000/1500
X/Z axid travel
mm
x:300 z:1050
Spindle transmission type

2-gear spindle speed
Spindle speed steep

steep-less in gear
Spindle speed
rpm
L:70-700,H160-1600
Spindle nose

C6
Spindle bore
mm
52
Spindle taper

MT6
Spindle motor
KW
7.5
Chuck size
mm
250
Ball screw dia and pitch

2506/4008
X/Z axis feed motor torque
N.m
5.5/7.5
X/Z Rapid traverse
m/min
x:6 z:8
X/Z axis repeatability
mm
±0.005
Processing accuracy

IT6-IT7
Workpiece surface roughness

Ra1.6
Tailsotck sleeve dia.
mm
75
Quill traverse
mm
140
Quill taper
#
MT5
Tool post from

4-station electric turret
Cutting tool shape size
mm
25x25
Total power capacity
KVA
12
Machine dimension(L*W*H)
mm
2600x1560x1710
Net.weight(about)
kg
2000
Standard configuration:
1) System:GSK980TC3, servo motor and drive.
2) 3-jaw manual chuck.
3) Four station electric tool post.
4) Manual tailstock.
5) Cooling system.
6) Lighting system.
7) Automatic lubrication system.

Optional configuration:
1). CNC system: GSK, Siemens, Fanuc, KND, etc.
2). Hydraulic chuck, pneumatic chuck .
3). Hydraulic tailstock, pneumatic tailstock.
4). 6-station electric tool post, 8- station electric tool post, Gang type tool
5). Automatic bar feeder.
