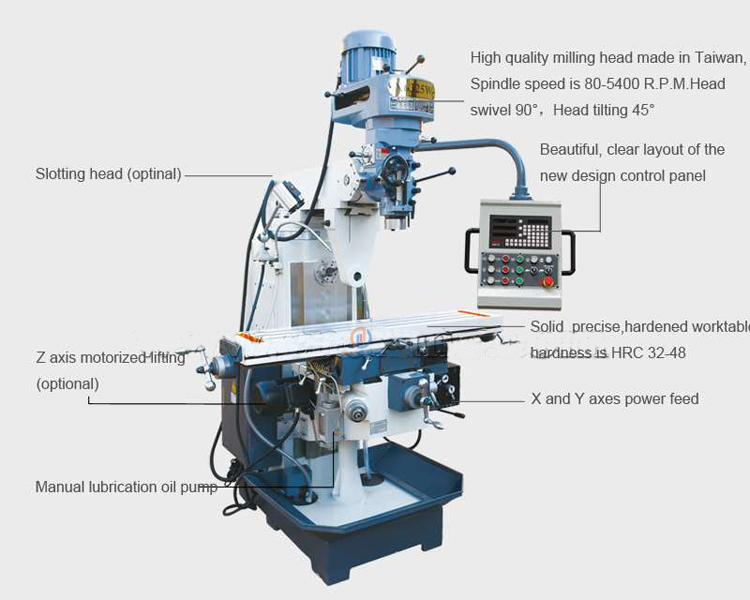

1.Meehanite high strength cast iron, with honeycomb reinforcement structure, high rigidity and long service life.
2.The spindle is made of Japanese imported combination diamond. After conditioning and circumferential treatment, it is finely grinded and equipped with 4 imported bearings to ensure high quality and high precision.
3.The three axis screw is equipped with advanced phosphate bronze nuts after grinding, which is durable.

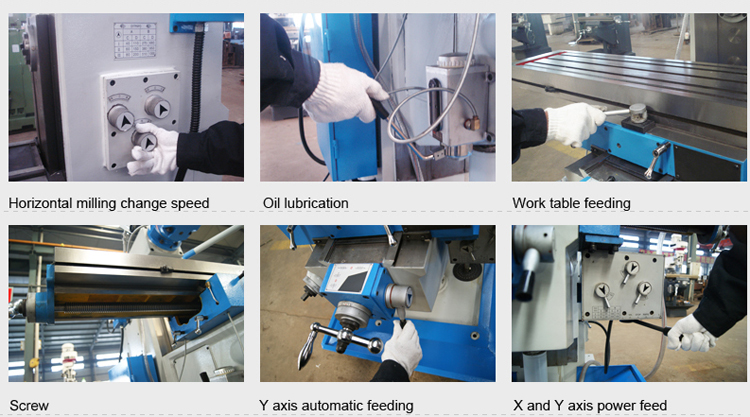

4.Horizontal milling uses 4 gear shaft speed changes with wide speed range and strong torque.
Specification | units | X6325W |
table size | mm | 1270*260 |
Numbers,width&distance between T-slot | mm | 3*14*63 |
Max.longitudinal travel | mm | 750 |
Max.cross travel | mm | 300 |
Max.vertical travel | mm | 200 |
Travel of arm | mm | 400 |

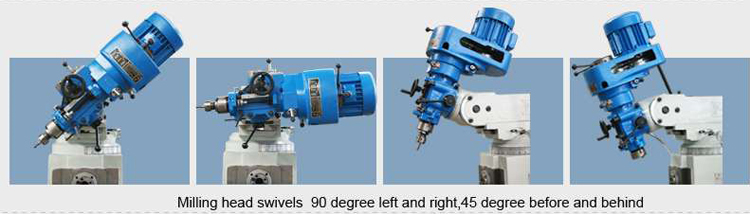

Swivel angle of the vertical milling head | degree | ±45° |
Distance from horizontal spindle to ram bottom | mm | 300 |
Level spindle taper | taper | 7:24 ISO40 |
Milling head spindle taper | taper | 7:24 ISO40 |
Level spindle speed grade | steps | 12 |
Level spindle speed range | rpm | 40-1300(50HZ) |
Milling Head spindle speed garde | steps | 16 |
Milling head spindle speed range | rpm | 80-5400(50HZ) |
Milling head spindle drive motor | kw | 3(5) |
level spindle drive motor | kw | 3 |
Feed motor | kw | 0.75 |
Coolant pump | w | 60 |
Net weight /Gross weight | kg | 1650 |
Overall dimensions(L×W×H) | mm | 1655x1650x2300 |
