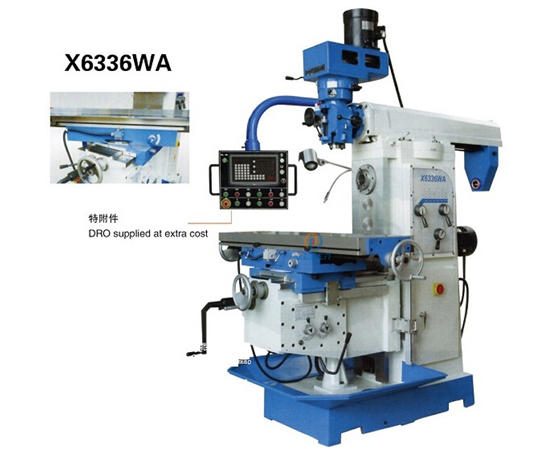

X6336WA
    Publish time 2020-05-07 11:21

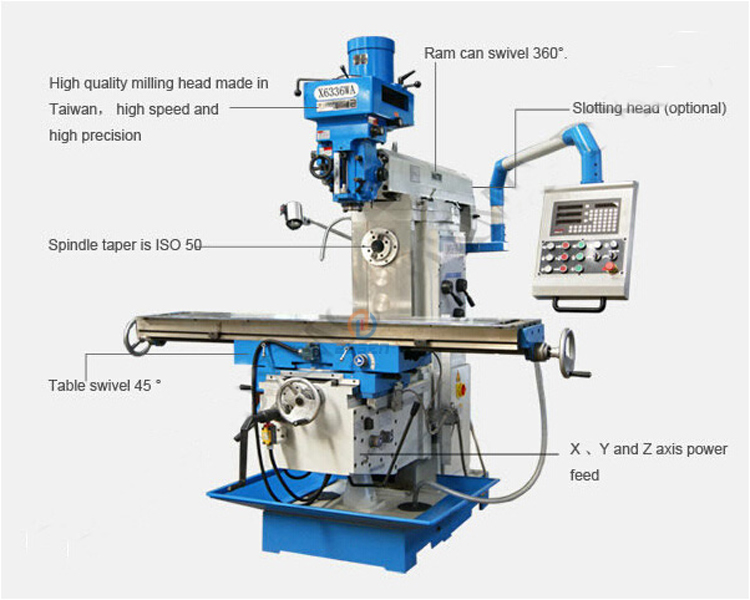

X6336WA

1.Taiwan high speed milling head, 5HP.
2.Work table can turn 45 degrees.
3.Processing of a wide range.
4.Three axes automatic feeds.

5.Large torque and strong power, 2HP,fast-moving 2000mm/min.

6.The fuselage and the lifting platform for the square guide.


Specification

X6336WA

Spindle taper

ISO 40 vertical

ISO 50 horizontal

Distance from vertical axis to table surface

135-485 mm

Distance from horizontal axis to table surface

0-350 mm

Spindle speeds range

75-4540 rpm vertical

60-1800 rpm horizonal

Table size

1500x360 mm

Max.table travel

900x400x405 mm

Horizontal motor power

4.0 kw

Vertical motor power

3.7kw (V) 2 kw (H)

Overall dimensions

2000x200x2250 mm

N.W/G.W

2650/2850 kg
