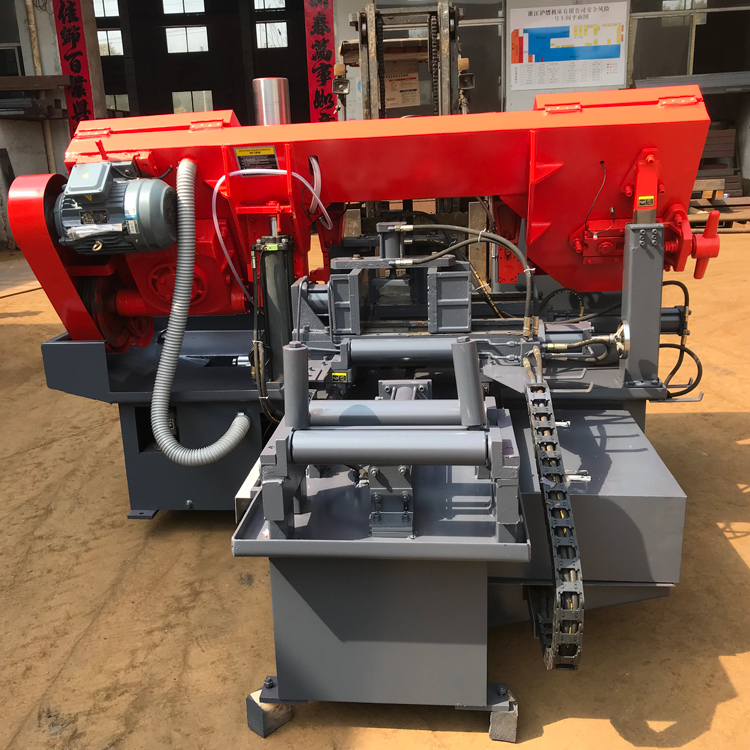

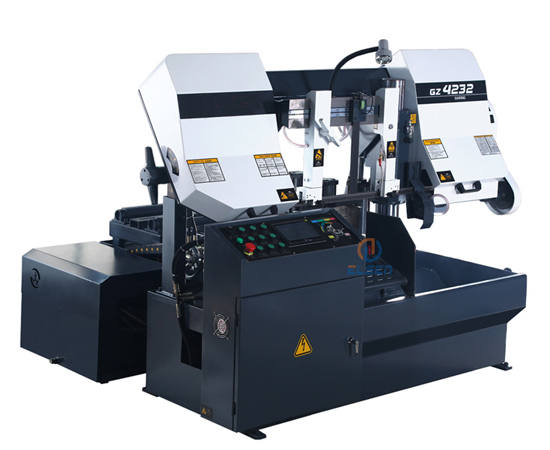

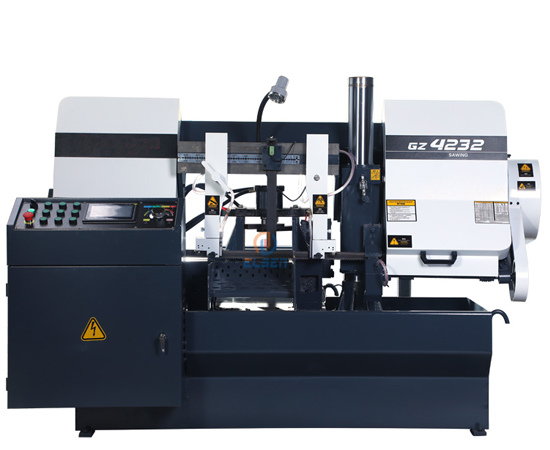

GZ4232-1
    Publish time 2020-05-12 17:27
GZ4232-1

1. Human machine interface (HMI) instead of traditional control panel, and sawing parameters are set in figures.

2. PLC (programmable logic controller) for flexible setting and change of sawing modes.

3. CNC Full-automatic Metal Band saw machine Mainly used for cutting various kinds of ferrous metal and non-ferrous metal.
With the advantages of narrow saw cut,saving material , energy-saving , the structure of the machine tools is reasonable and reliable performance and high precision .

4. Adjustable method of feeding speed: Belt speeding with hydraulic pressure Max.length of one-way.


Model

GZ4232-1
Cutting Capacity
mm
W:320        H:320
Blade Speed
m/min
21/36/46/68
Blade Size
mm
34x1.1x4115
Main Motor
kw
4
Hydraulic Motor
kw
0.75
Cooling Motor
kw
0.07
Blade Tension Form

Manual

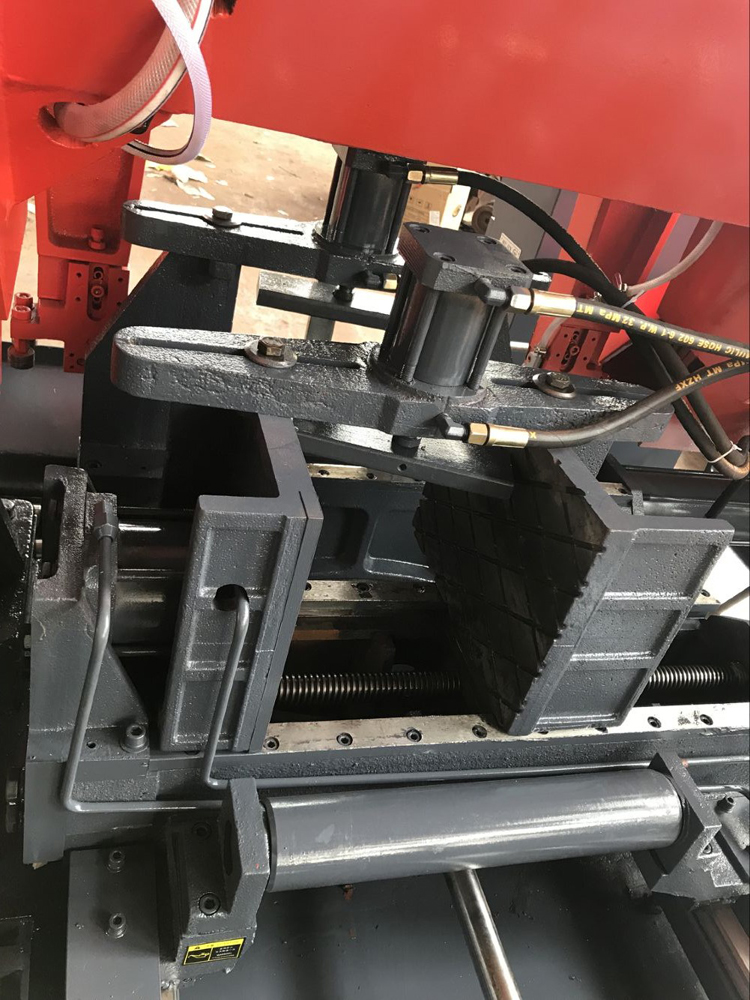

Vice Clamp

Hydraulic
Net Weight
kg
1500
Machine Size
mm
2000x2200x1500
