Application:
Metal Manual universal milling machine can be used both for vertical milling and horizontal milling, with corresponding attachments, it can also mill various rotary surfaces and grooves, etc. Two-section revolving cutter head enables the spindle to revolve and adjust at any angle, and mill complicated parts with multi-angle and multi-face by one time of holding. It is the ideal machining equipment for the industries of mechanic manufacture, moulds, automobiles and motorcycles.
Features:

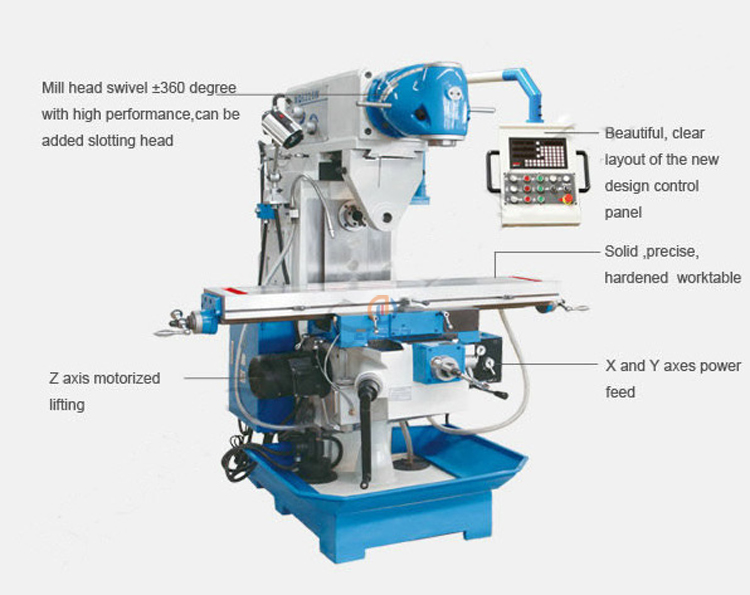

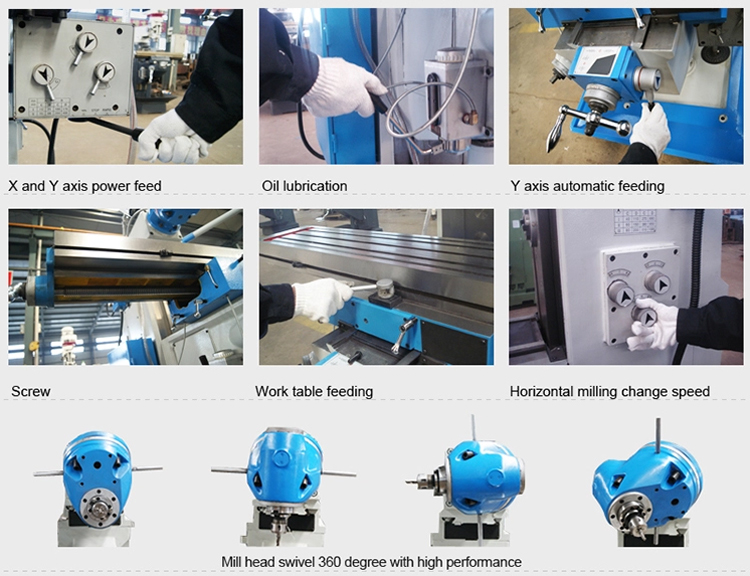

1. Universal milling head can swivel 360 degree
2 .Three axis hardening treatment
3 Mechanical feeding device
4. Independent of the horizontal milling function
5. Automatic tools change universal milling machine
|
Specification |

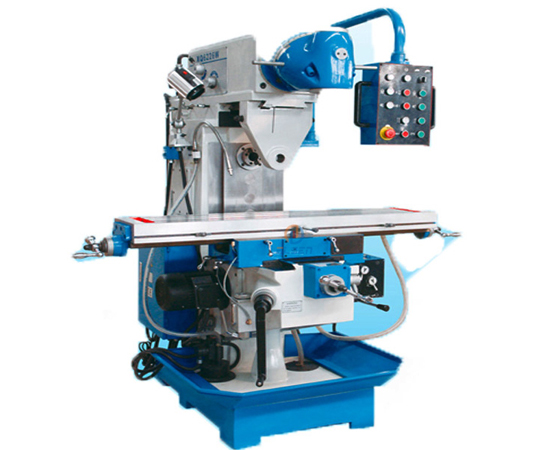

XQ6226W |
|
Max.horizontal milling dia |
125 |
|
Max.vertical millng dia |
28 |
|
Distance.spindle to table surface |
560 |
|
Spindle speeds range |
35-1600 |
|
Swivel angle of swivel head |
± 360 ° |
|
RAM Stroke |
420 |
|
Table size |
1270 × 260 |
|
Table travel |
750 × 300 |
|
Overall dimensions |
1655 × 1500 × 1730 |
|
Motor |
2.2 2.2 |
|
N.W/G.W |
1480/1660 |
|
Spindle speeds range |
40-1300 |
|
Max.hprizontal milling dia |
100 |
