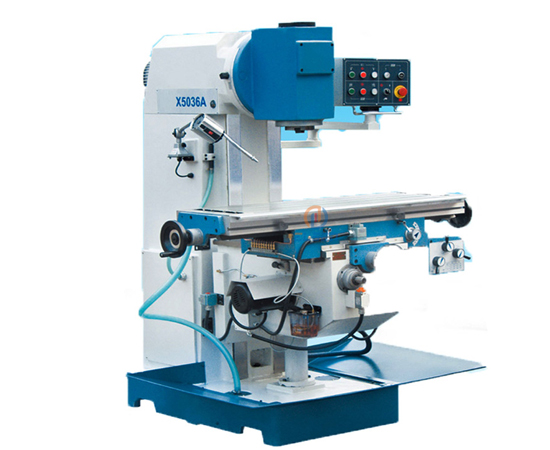

X5036A
Publish time 2020-04-22 16:05
Application
Vertical knee-type milling machine is a general purpose machine which can be used in wide range. Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process flat, inclined surface, slots and gears on miscellaneous work pieces. Equipped with optional accessories, such as rotary table and dividing head, machine can be applicable to versatile processing. It is an ideal machine tool for machining process, maintenance, instrument, die and moulds.

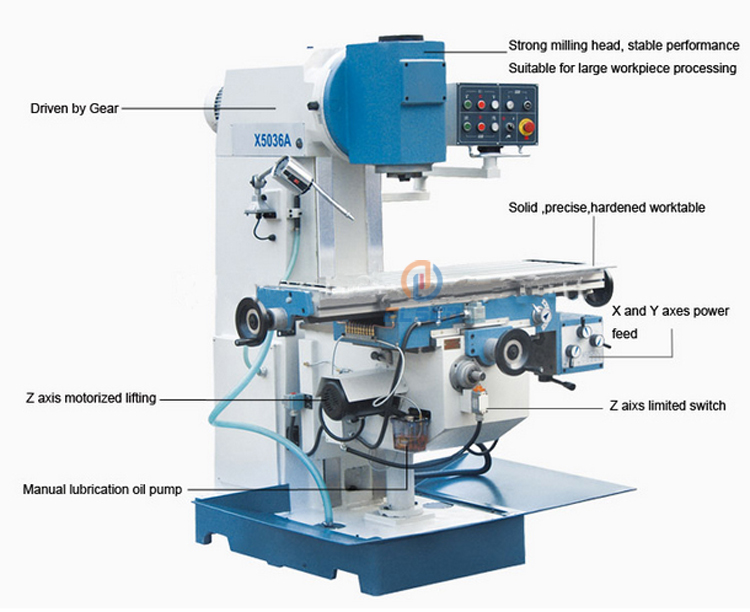

Main Feature
1. Cast iron has high precision and long life after manual aging treatment.Good spindle stiffness, strong cutting force,
2. Rectangular guide rail, three-axis hardening treatment.
3. Gear cutter, Z direction using motor automatic lifting.
4. Manual lubrication device can be equipped to force lubricate the lead screw and guide rail.
| Specification | units | X5036A |
| table size | mm | 1250*360 |
| Numbers,width&distance between T-slot | mm | 3*18*80 |
| Longitudinal travel | mm | 600 |
| Cross travel | mm | 320 |
| Vertical travel | mm | 360 |
| Cutting feed speed | mm/min | 22-555(8steps)810 |
| Rapid feed speed | mm/min | 590 |
| Spindle nose to table surface | mm | 80-440 |
| Spindle taper | 7:24 ISO50 | |
| Spindle motor power | kw | 4 |
| Spindle speed range | r/min | 60-1700(12steps) |
| Swivel angle of the vertical milling head | degree | ±45° |
| Spindle center to Column surface | mm | 320 |
| feed motor power of the table | w | 750 |
| feed motor power of the elevator platform | w | 1100 |
| Cooling pump power | w | 90 |
| Cooling pump flow rate | L/min | 25 |
| Net weight /Gross weight | kg | 2200/2400 |
| Overall dimensions(L×W×H) | mm | 1700*1680*1880 |
