Specification

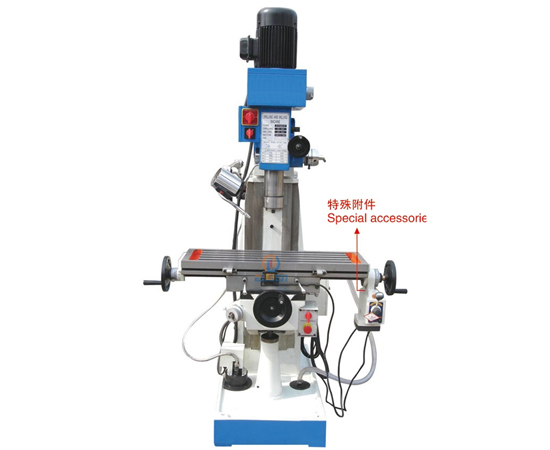

ZX7550C

Spindle taper

MT4(V)

Max.drilling diameter

50mm. 30mm

Distance from spindle to table

70-420m m

Tervel of movable arm

300mm

Spindle speeds

(8)115-1750r.p.m(V)

Spindle travel

120mm

Max.tapping dia.

M16

Max.horizontal milling dia.

120mm

Head movement(left/right)

90degrees

Table size

(1000)800x240

Table travel(horizontal/cross/vertical)

(600)400x230x350mm

Max weight of workpiece

250kg

T-slot number /width/distance

3/14mm/60mm

Horse power for main motor

1.5KW

Overall dimension

1290x1220x2250mm

N.W./G.W.

720/800kg
