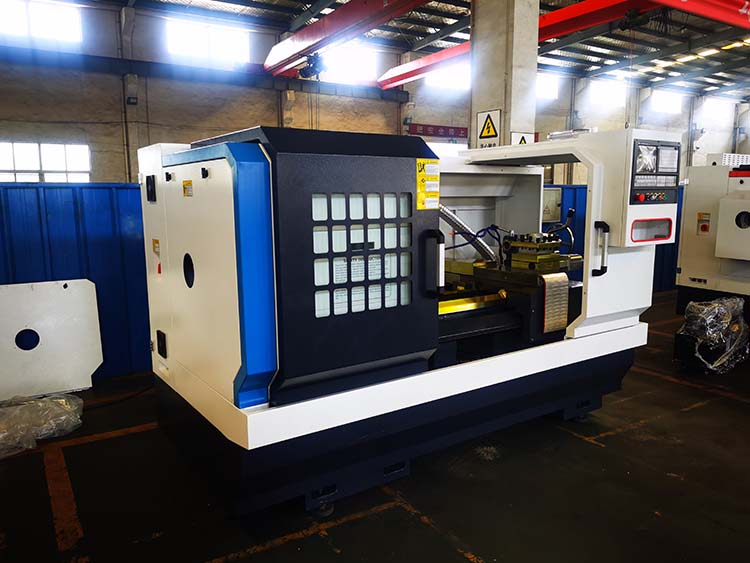

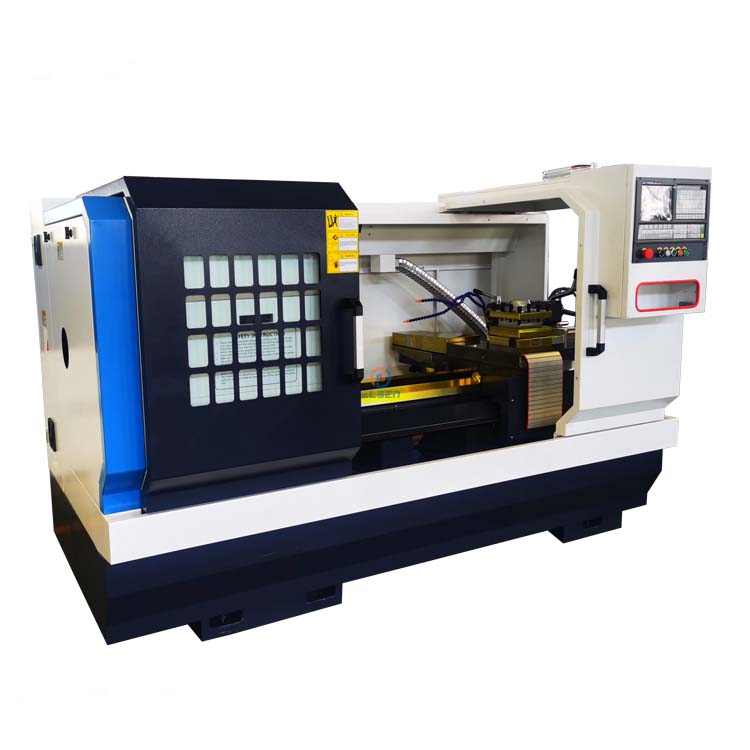

CK6152E
    Publish time 2022-03-21 20:05
CK6152E
Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.

Higher stability one-piece machine bed
Four position electric turret
3 gear spindle speed, step-less in gear
Higher rigidity pedestal
Wider layer board
Integrated automatic lubrication system
Specification
Unit
CK6152E
Max.swing over bed
mm
530
Max.swing over cross slide
mm
280
Max.processing length
mm
1000/1500/2000/3000
X/Z axid travel
mm
x:330 z:1000/1500/2000/3000
Spindle transmission type

3 gear spindle speed, step-less in gear
Spindle speed
rpm
30-150,90-450,315-1600
Spindle nose

A2-8
Spindle bore
mm
90
Spindle taper

100/1:20
Spindle motor
KW
7.5
Chuck size
mm
250
Ball screw dia and pitch

2506/4010
X/Z axis feed motor torque
N.m
7.5/10
X/Z Rapid traverse
m/min
x:6 z:10
X/Z axis repeatability
mm
±0.005
Surface roughness

Ra1.6
Tailsotck sleeve dia.
mm
75
Quill traverse
mm
150
Quill taper
#
MT5
Tool post from

4-station electric turret
Cutting tool shape size
mm
25x25
Total power capacity
KVA
12.5
Machine dimension(L*W*H)
mm
2570/3070x1550x1710
Net.weight(about)
kg
3150/3400
Standard configuration:
1) System:GSK980TC3, servo motor and drive.
2) 3-jaw manual chuck.
3) Four station electric tool post.
4) Manual tailstock.
5) Cooling system.
6) Lighting system.
7) Automatic lubrication system.

Optional configuration:
1). CNC system: GSK, Siemens, Fanuc, KND, etc.
2). Hydraulic chuck, pneumatic chuck .
3). Hydraulic tailstock, pneumatic tailstock.
4). 6-station electric tool post, 8- station electric tool post, Gang type tool
5). Automatic bar feeder.
