Application:
bridgeport turret milling machine is used for cutting metals, its an universal milling machine. Cylinder mill, round piece mill, shape mill and end mill can be installed on the conical hole of main pivot of the machine, which is suitable for processing plane surface,oblique plane, groove, hole, gear of all kinds of small,
medium parts. User can select universal dividing head (a special auxiliary) to process groove of
thread. The machine is an ideal processing equipment for machine manufacture, mold, instrument,
automobile, motorcyle and other trades
Features:
*Hardened guideway

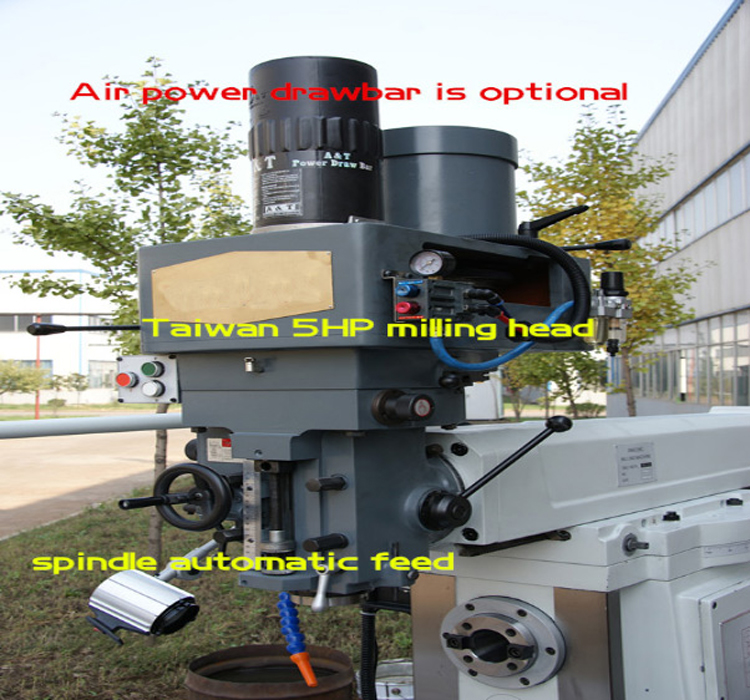

*Taiwan high speed turret milling head

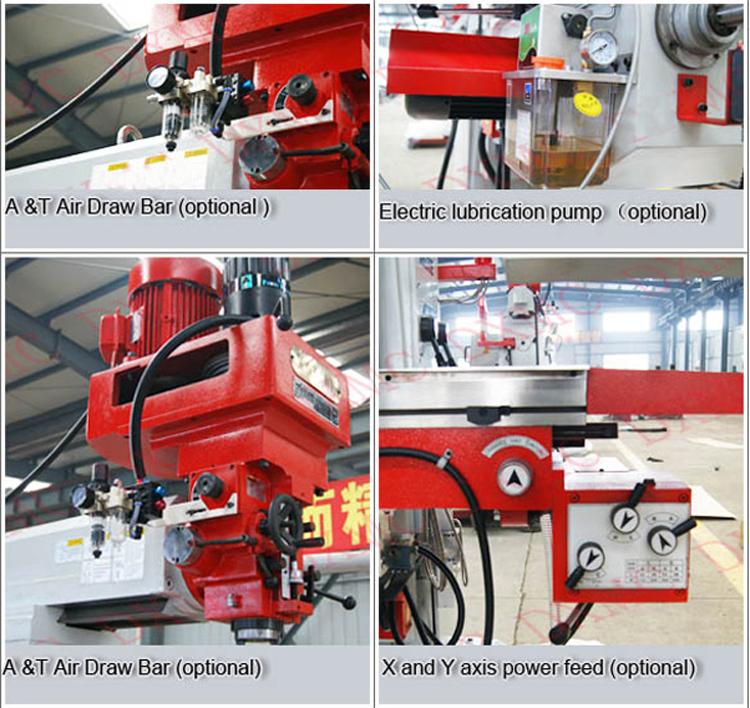

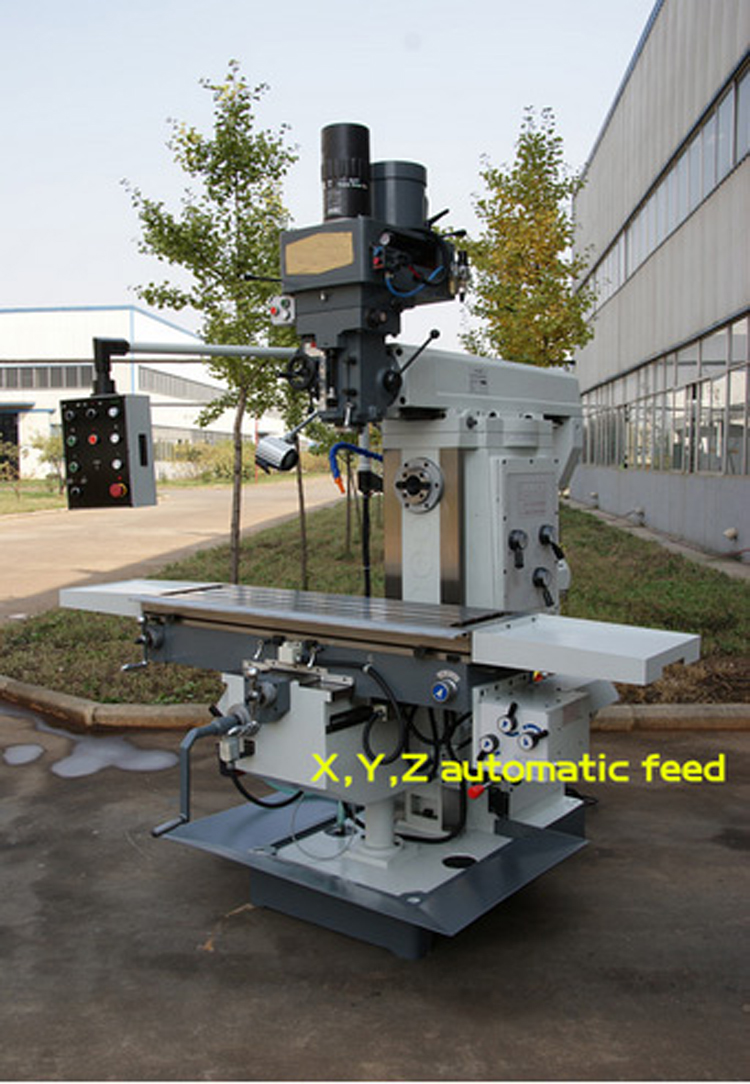

*X.Y axis auto feeding, motorized lift on Z axis
Specifications |

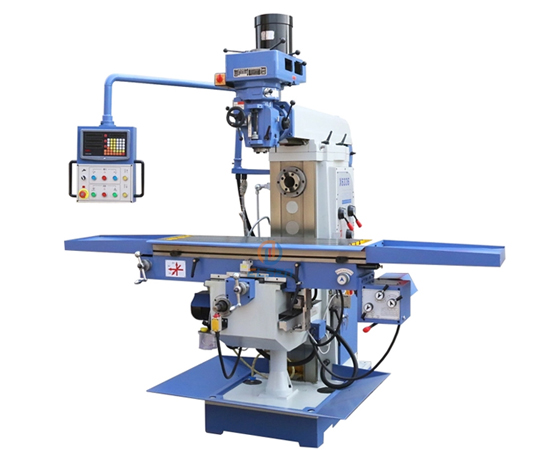

X6336 |
Spindle taper |
ISO40 (V) ISO50(H) |
Distance from vertical spindle to worktable(mm) |
135-485 |
Distance from vertical spindle to worktable(mm) |
0-350 |
Spindle speed range(r.p.m) |
65-3750 RPM |
Table size |
1250*360 |
Table travel |
1000*300*400 |
Main motor(kw) |
4.0( H) 3.7/2(V) |
Arm travel(mm) |
500 |
Overall dimensions(mm) |
2220x1790x2360 |
N.W/G.W (kg) |
2500/2700 |
