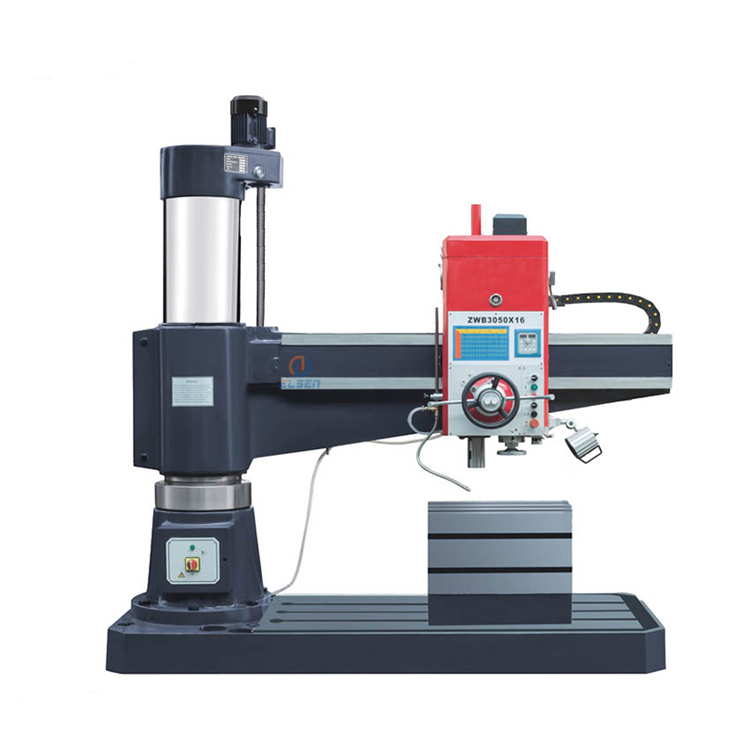

ZWB3050x16 Variable Speed
    Publish time 2022-03-27 17:33
ZWB3050x16 Variable Speed
Model
Unit
ZWB3050X16
Max drilling capacity
mm
50
Max tapping capacity
mm
M30
Distance spindle axis to column
mm
350-1600
Diameter of column
mm
350
Spindle taper

MT5
Spindle travel
mm
Manual 315/Automatic 115
Spindle speed range
r/min
20-200、200-2000
Dimension of worktable
mm
630x500x500
Dimension of base
mm
2400x1000x200
Distance spindle nose to work base
mm
320-1220
Max torque
N.m
400
Permissible  max feed resisting force
N
16000
Rocker arm lifting speed
m/min
1.2
Power of main motor
kw
4
Rocker arm lifting motor power
kw
1.1
Oil pump motor pump
w
750
Coolant pump motor power
w
125
Feed motor power
w
90
Feed speed rate
mm/min
13-127
Overall of size
mm
2677x1000x2650
G.W/N.W
kg
3500/3800
Packing dimension
mm
2600x1120x2600
