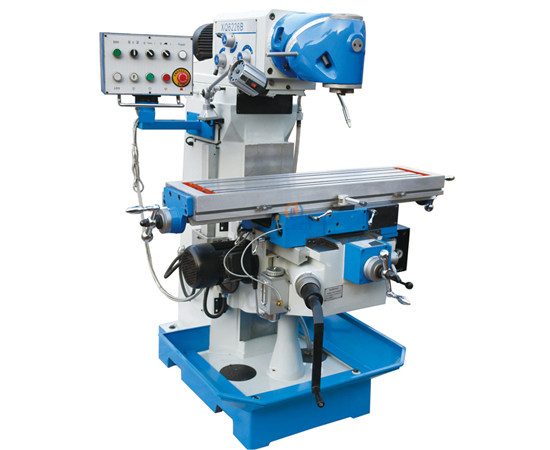

XQ6226B
Publish time 2020-04-22 16:05
The main performance characteristics：
1.It can realize vertical and horizontal milling two processing function;
2.The two rotary milling head, spindle at any angle rotating and adjustment;
3.Can be used for processing and mold shell;
4.Work bench X. Y all are gear drive automatic feed, Z to the electric lift.
5.Modeling beautiful, generous, overall layout of symmetry coordination. rail surface heat treatment of high hardness, strong steel, gear up for gear grinding ,by high frequency quenching and low noise durable

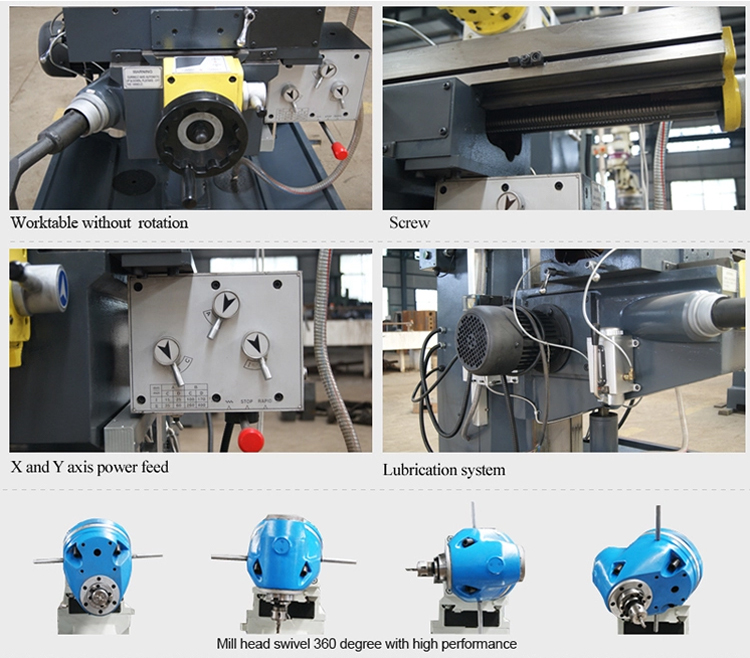

6.Spindle two head design, can easily achieve vertical, horizontal milling conversion and arbitrary angle combination, and stiffer than the three section head has greatly improved.
7.Two heads configuration precision positioning pin , accurate vertical horizontal milling conversion, more convenient operation.
|
Specifications
|
Units
|
XQ6226B
|
|
Table size
|
mm
|
1120x260
|
|
Table stroke (X/Y/Z )
|
mm
|
580/270/400
|
|
Distance from spindle nose to table surface
|
mm
|
100-500
|
|
Distance from spindle center to column suface
|
mm
|
0-500
|
|
T slot number/size/width
|
mm
|
3/14/63
|
|
Spindle taper
|
|
ISO40 7:24
|
|
Spindle speed range
|
rpm
|
35-1600rpm
|
|
Worktable feed speed range
|
mm/min
|
18-308 (8 steps )
|
|
Swivel angle of swivel head
|
|
360°
|
|
Spindle motor power
|
KW
|
2.2
|
|
Worktable feed motor power
|
W
|
250
|
|
Coolant pump motor power
|
W
|
90
|
|
Cooling pump flow
|
L/min
|
25
|
|
Overall dimensions
|
mm
|
1655x1500x1750
|
|
Machine weight
|
Kg
|
1150/1300
|
