ZX6350ZA
    Publish time 2020-04-22 16:05

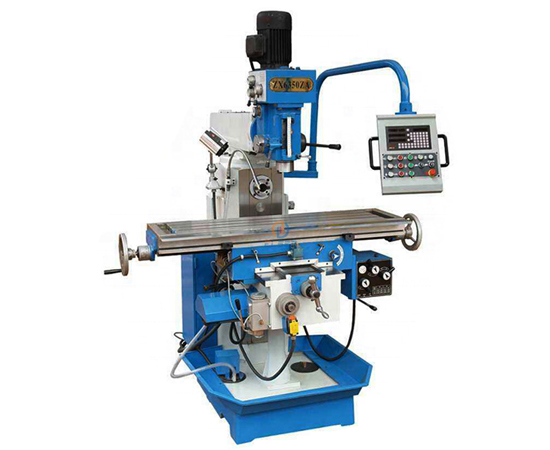

ZX6350ZA

Features:

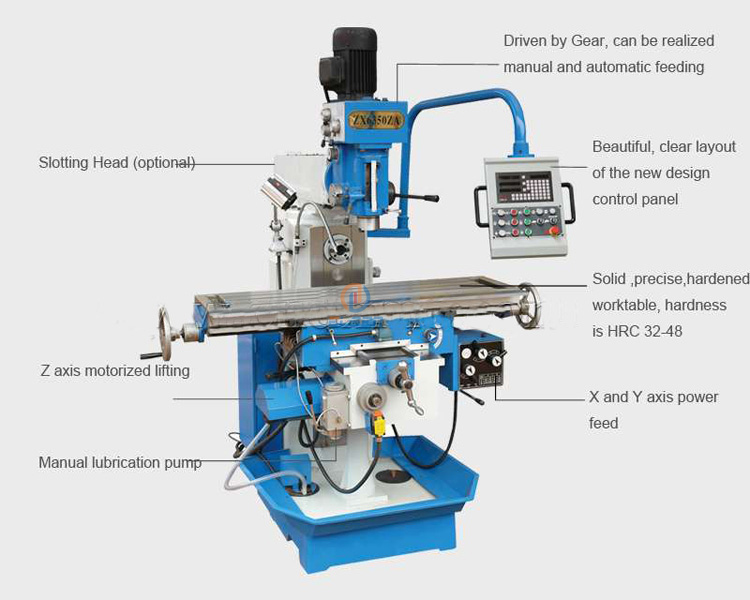

1.Vertical and horizontal milling head

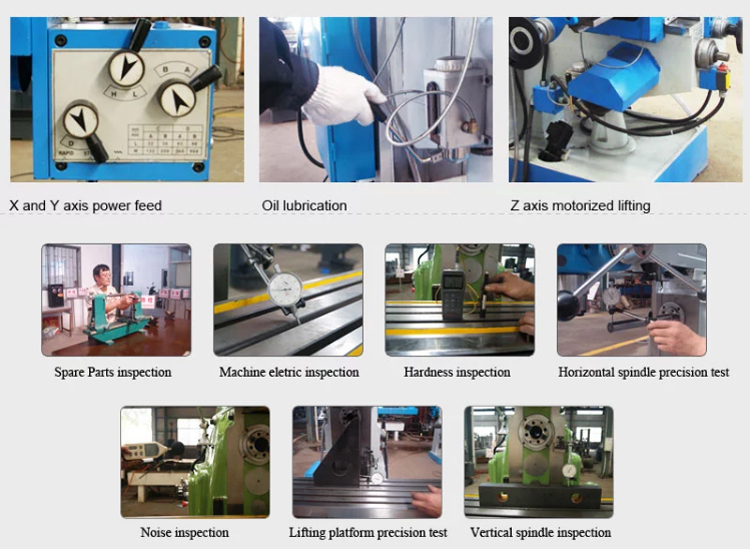

2.X /Y/Z axis auto feed
3.Milling head is driven by gear, can be used for drilling, milling and tapping, easy to operate
4.Guide way with sparking quenching


Specifications

ZX6350ZA

Spindle taper

ISO40

Distance from spindle to tablesurface(mm)

100-430

Max drilling  dia.(mm)

50

Max boring  dia.(mm)

120

Max vertical milling dia.(mm)

25

Max horizontal milling dia.(mm)

100

Spindle speed range(r.p.m)

60-1500(8) V
40-1300(12) H

Table size

1250*320

Table travel

600*300

Main motor(kw)

0.85/1.5(V) 2.2(H)

Spindle travel(mm)

120

N.W/G.W (kg)

1400/1550
