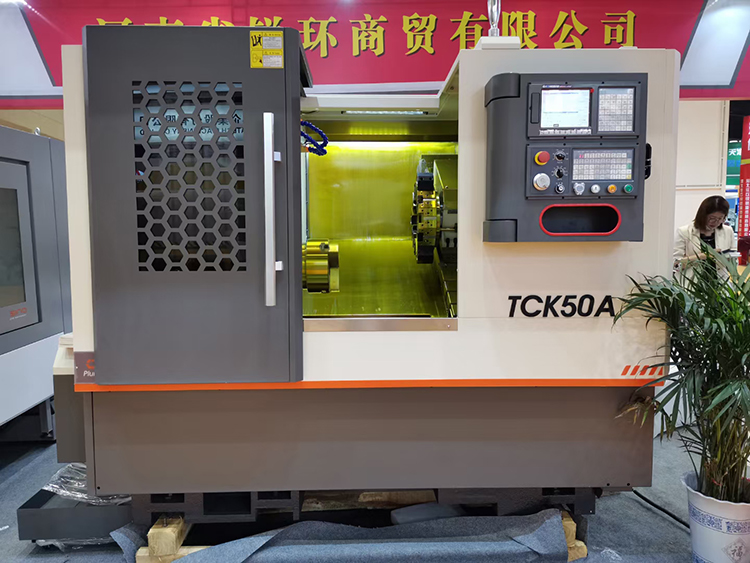

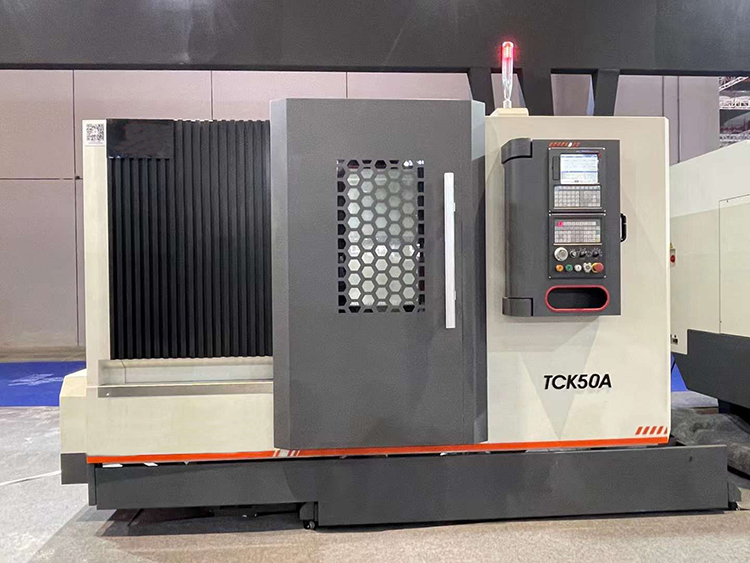

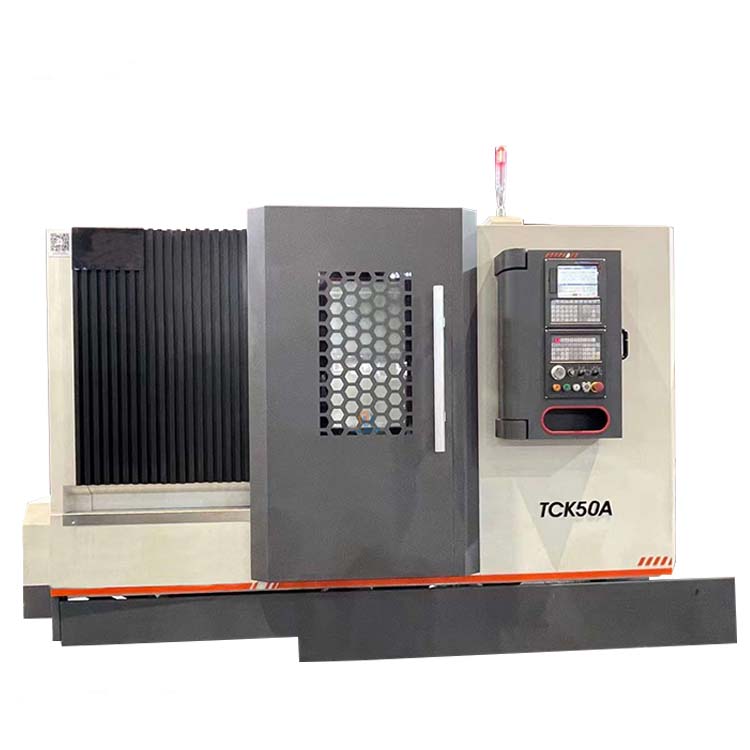

TCK50A
    Publish time 2022-03-21 20:46
TCK50A
Higher accuracy Taiwan linear guideways
Higher speed spindle unit
Higher rigidity cast iron
Integrated automatic lubrication
One-piece casting slant bed cnc lathe
Specification
Unit
TCK50A
Max.swing over bed
mm
500
Max.swing over cross slide
mm
260
Max.processing length
mm
300/500
X/Z axid travel
mm
x:350 z:540
Spindle speed
rpm
3500
Spindle nose

A2-6
Spindle bore
mm
66
Spindle motor
KW
11
Chuck
inch
10
X/Z axis repeatability
mm
±0.003
Workpiece surface roughness

Ra1.6
Hydraulic quill dia
mm
70
Hydraulic quill traverse
mm
80
Hydraulic tailstock travel
mm
200
Guide form

45 Degree Linear guiderway
Tool post from

8/12 Hydraulic turret post
Machine dimension(L*W*H)
mm
2500x1850x1890
Net.weight(about)
kg
2600
Standard configuration:
1) System:GSK988T, servo motor and drive.
2) 3-jaw hydraulic chuck.
3) 8-station hydraulic turret.
4) Lighting system.
5) Cooling system.
6) Automatic lubrication system.

Optional configuration:
1). CNC system: GSK, Siemens, Fanuc, KND, etc.
2). Hydraulic chuck, pneumatic chuck .
3). Hydraulic tailstock, pneumatic tailstock.
4). Automatic bar feeder.
