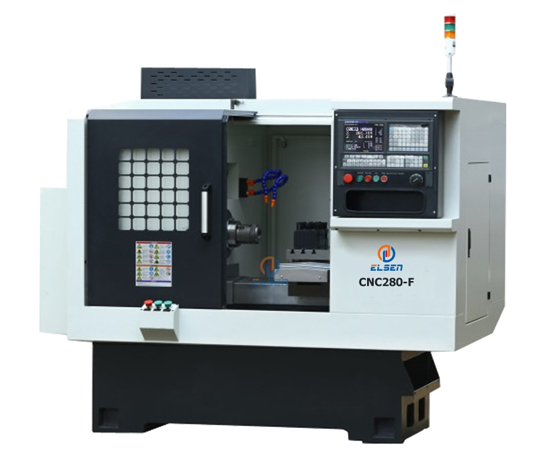

CNC280-F
Publish time 2020-04-22 15:53
♦Linear guideways are protected by stainless steel telescoping guards--provides maximum protection from chips and coolant and extended machine life
♦Center mounted ball screws are placed between the bed ways, minimizing side torque and friction. Provides cooler operation, better dynamic efficiency and longer life.
♦Servo motors and drives on X/Z axes. Spindle can be driven by VFD or Servo.
♦Various control systems, chucks and tool posts are available. Highly configurable to fit your needs.
| Item | Specifications | Unit | Parameters | |
| Capacity | Chuck/Collet | type | Pneumatic collet, Op:Hydraulic collet | |
| Bed type/guideway | Flat/Linear guider | |||
| Max swing over bed | mm | φ300 | ||
| Max length of workpiece | mm | 180 | ||
| Max swing over slide | mm | φ120 | ||
| Spindle | Spindle bore | mm | φ37 | |
| Max dia of through hole | mm | φ32 | ||
| Spindle nose | φ68 1:4 | |||
| Spindle speed | rpm | 3000 | ||
| Spindle motor power | kw | 3 | ||
| Axis | X /Z axis travel | mm | 250/180 | |
| X/Z rapid traverse | m/min | 15/15 | ||
| Tool Post | Type | Gang type | ||
| No.of tool stations | nos | 4-6 | ||
| Size | Power capacity | KVA | 8 | |
| Overall dimension(L*W*H) | mm | 1700x1200x1550 | ||
| Weight | kg | 1300 | ||
Standard Features
|
Pneumatic collet |
|
Gang Type Tooling |
| Without Tailstock |
| Auto Lubrication System |
|
Auto Coolant System |
|
Work Lamp & Built In Safety Features |
| Optional configurations |
|
Hydraulic collet,chuck 6" |
| Siemens/ Fanuc/Mitusbishi/GSK cnc controller |
|
4-station toolpost,8-station turret |
|
Living Tooling |
| Bar Feeder |
