GB4230
    Publish time 2020-05-12 12:41

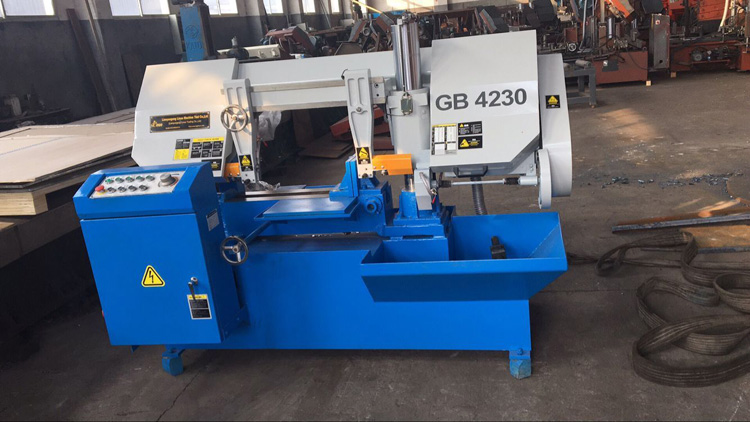

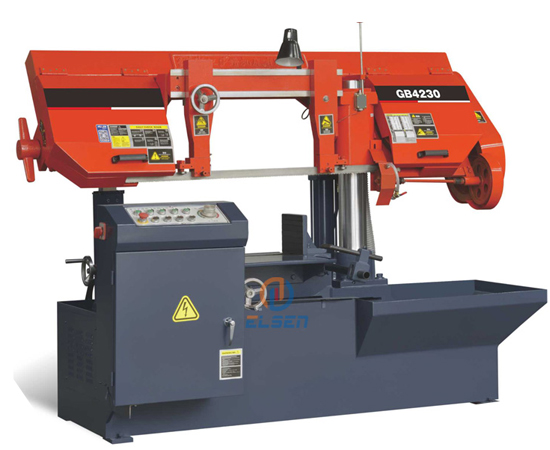

GB4230

1.The cut-off time of the machine is 4 to 5 times that of hack sawing machine
2.The saw kerfs is 2mm narrower than of hack sawing machine.
3.It saves the consumption of electricity from 50%-60% the hack sawing machine with the same work.
4.Hydraulic feeding, step less speed regulation.
5.Hydraulic claming, automatic stopping.
6.Simple and convenient operation and maintenance


Type

Specification

Unit

GB4230

GB4235

GB4240

Cutting capacity

mm

Round: 300

Square:280*400

Round: 350

Square:350*400

Round: 400

Square:400*450

Blade Speed

m/min

27,40,50,70

30,45,55,80

20,30,37,53

Blade size

mm

1.1*34*4000

1.1*34*4540

1.3*41*4740

Main motor power

kw

3

3

3

Hydraulic

kw

0.37

0.37

0.75

Coolant pump

kw

0.04

0.04

0.085

Machine Size

(L*W*H)

mm

2060*950*1340

2230*1000*1500

2400*1050*1600

Weight

kg

1100

1200

1400
