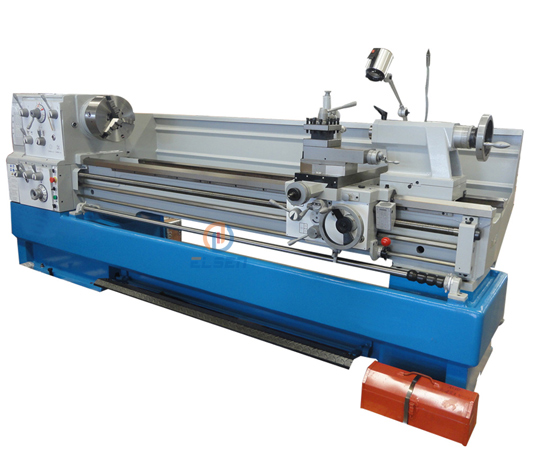

Xuzhou Elsen Machine Tool Co., Ltd
1. Precision ground and hardened bed ways
2. The spinlde bore is supported with precision roller bearings
3. Head stock gears are made of high quality steel ground and hardened.
4. Easy operating speed change levers
5. Whole foot stand
6. Easy operating gear box has various feed sand thread cutting function.
|
Specification |
C6241 |
C6246 |
C6246E |
|
Swing over bed |
410mm(16") |
460mm(18") |
460mm(18") |
|
Swing over cross slide |
220mm(8-13/16") |
270mm(10-3/4") |
270mm(10-3/4") |
|
Swing in gap |
640mm(25-1/8") |
690mm(27-1/8") |
690mm(27-1/8") |
|
Distance between centers |
1000mm(40") 1500mm(60") 2000mm(80") |
||
|
Valid length of gap |
165mm(6-1/2") |
||
|
Width of bed |
300mm(11-13/16") |
||
|
Spindle nose |
D1-6 |
D1-8 |
|
|
Spindle bore |
58mm(2-1/4") |
80mm(3-1/8") |
|
|
Taper of spindle bore |
No.6 Morse |
No.7 Morse |
|
|
Range of spindle speed |
12 changes, 25~2000r/min |
||
|
Max.travel of top slide |
128mm(5") |
||
|
Max.travel of cross slide |
285mm(11-1/4") |
||
|
Max.section of tool |
25×25mm(1"×1") |
||
|
Pitch thread of leadscrew |
6mm or 4T.P.I. |
||
|
Longitudinal feeds range |
42 kinds, 0.031~1.7mm/rev(0.0011"~0.0633"/rev) |
||
|
Cross feeds range |
42 kinds, 0.014~0.784mm/rev(0.00033"~0.01837"/rev) |
||
|
Metric threads range |
41 kinds, 0.1~14mm |
||
|
Inch threads range |
60 kinds, 2~112T.P.I. |
||
|
Diametrical pitches range |
50 kinds, 4~112DP |
||
|
Module pitches range |
34 kinds, 0.1~7MP |
||
|
Dia. of tailstock sleeve |
60mm(2-5/16") |
||
|
Travel of tailstock sleeve |
130mm(5") |
||
|
Taper of tailstock sleeve |
No.4 Morse |
||
|
Power of main motor |
5.5kW(7.5HP) 3PH |
||
|
Power of coolant pump |
0.1kW(1/8HP) 3PH |
||
|
Packing size(LxWxH) |
225*112*162cm |
225*112*162cm |
225*112*162cm |
|
280*112*162cm |
280*112*156cm |
280*112*156cm |
|
|
330*112*162cm |
330*112*156cm |
330*112*156cm |
|
|
Net weight |
1580kg 1745kg 1900kg |
1645kg 1810kg 1965kg |
1645kg 1810kg 1965kg |
|
Gross weight |
1844kg 2049kg 2229kg |
1910kg 2115kg 2295kg |
1910kg 2115kg 2295kg |
