C9370C
    Publish time 2022-03-24 21:05

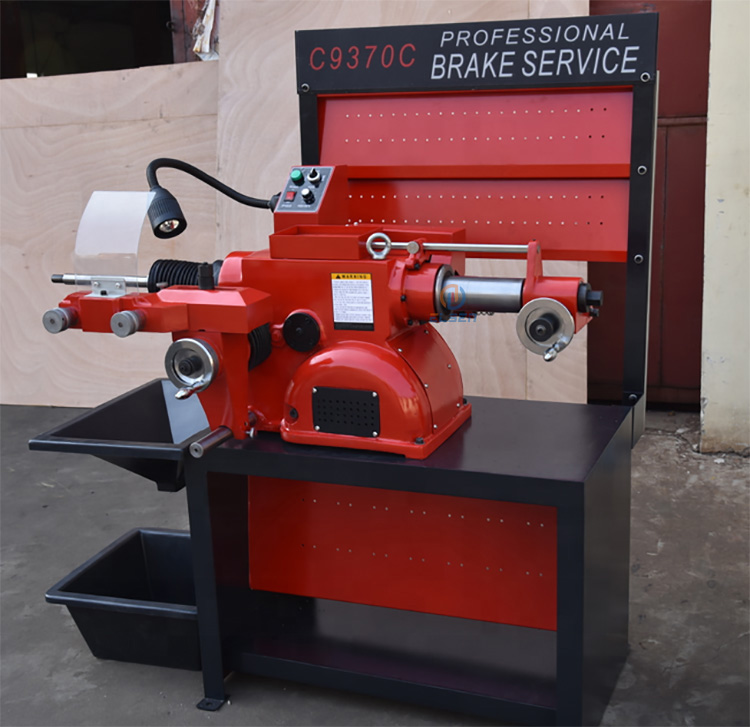

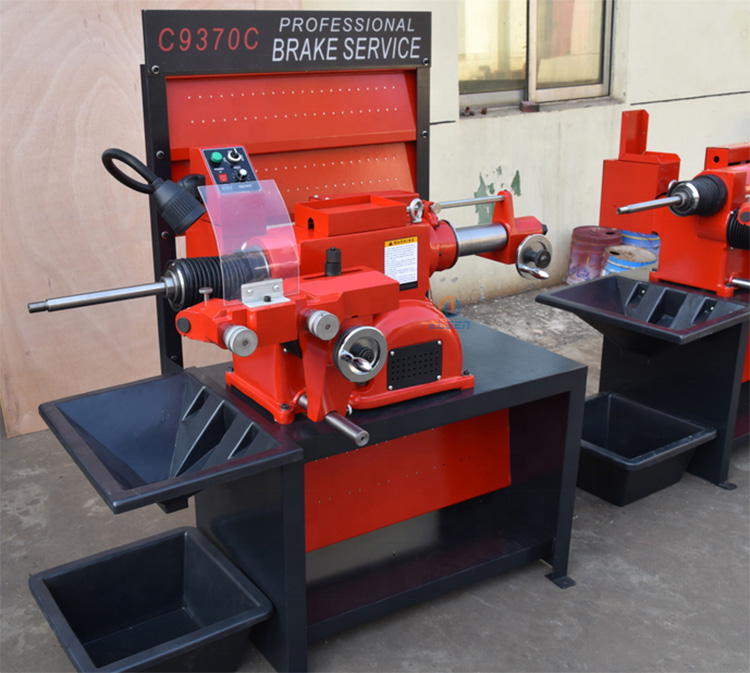

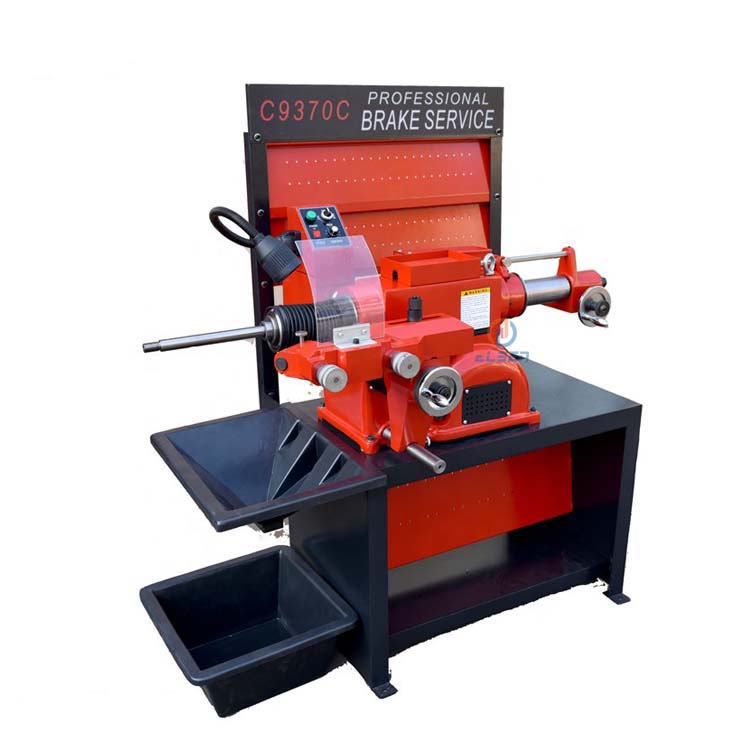

C9370C
Application:
♦Applicable for repairing medium & small brake drums/discs;
♦Three spindle speed can be adjusted by changing belt position;
♦DC drive enables variable feeding speed;
♦2 motors separately for turning disc/drum;
Model
Unit
C9350C
C9370C
C9372
Processing dia of brake drum
mm
152-450
152-711
152-500
Brake drum depth
mm
160
220
165
Processing dia of brake disc
mm
178-368
178-457
180-508
Brake disc thickness
mm
48
48
73
Spindle speed
rpm
70,88,118
70-320
Cross feeding capacity
mm/r
0-0.4
0-0.66
Motor power
kw
0.75
0.6
Overall dimension
mm
1200x900x1500
1280x1100x1445
1010x720x1430
Weight
kg
290
290
220
